Home >> Hyundai >> 2011 >> Sonata L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> E43 Start 1 Relay

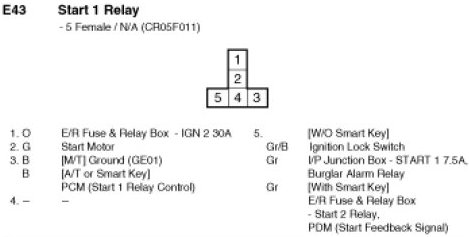

E43 Start 1 Relay

E43 Start 1 Relay:
