Home >> Hyundai >> 2011 >> Sonata L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> E74 Start 1 Relay

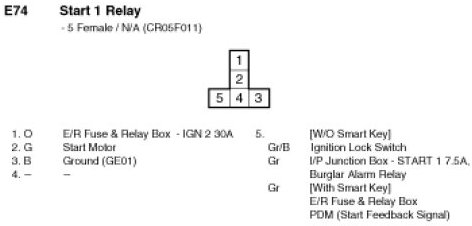

E74 Start 1 Relay

E74 Start 1 Relay:
