Home >> Hyundai >> 2011 >> Sonata L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> F41 Front Seat Warmer Switch LH (A/T)

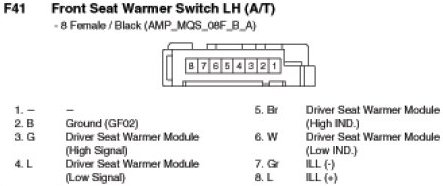

F41 Front Seat Warmer Switch LH (A/T)

F41 Front Seat Warmer Switch LH (A/T):
