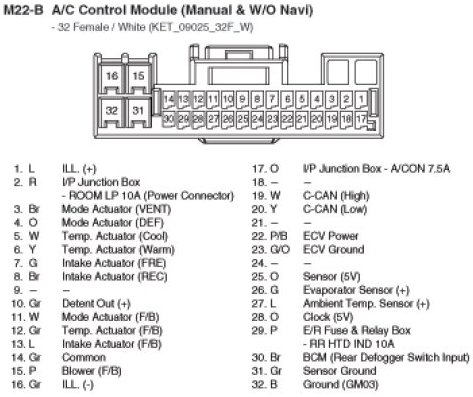

M22-B A/C Control Module (Manual & W/O Navi)
M22-B A/C Control Module (Manual & W/O Navi)
M22-B A/C Control Module (Manual & W/O Navi):
