Home >> Hyundai >> 2011 >> Sonata L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> M22-BN A/C Control Module (Manual & With Navi)

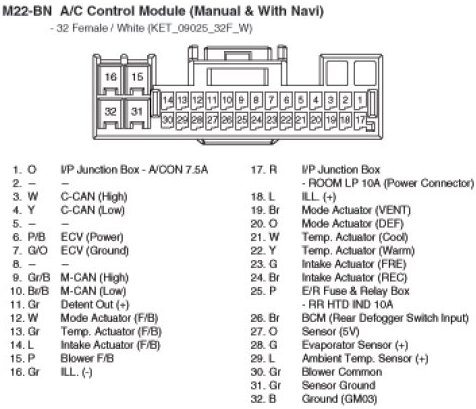

M22-BN A/C Control Module (Manual & With Navi)

M22-BN A/C Control Module (Manual & With Navi):
