Home >> Hyundai >> 2011 >> Sonata L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> M46 Front Seat Warmer Switch LH (M/T)

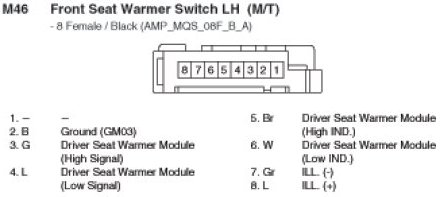

M46 Front Seat Warmer Switch LH (M/T)

M46 Front Seat Warmer Switch LH (M/T):
