Home >> Hyundai >> 2011 >> Sonata L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> M81 AUX & USB Jack (W/O Navi)

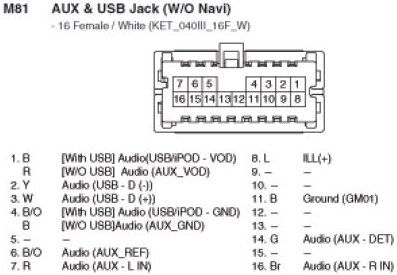

M81 AUX & USB Jack (W/O Navi)

M81 AUX & USB Jack (W/O Navi):
