Home >> Hyundai >> 2011 >> Sonata L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Actuator >> Passenger Door Lock Actuator

Passenger Door Lock Actuator

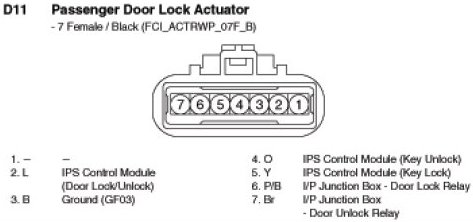

D11 Passenger Door Lock Actuator:
