Diagram Set SD313 (MFI Control System)

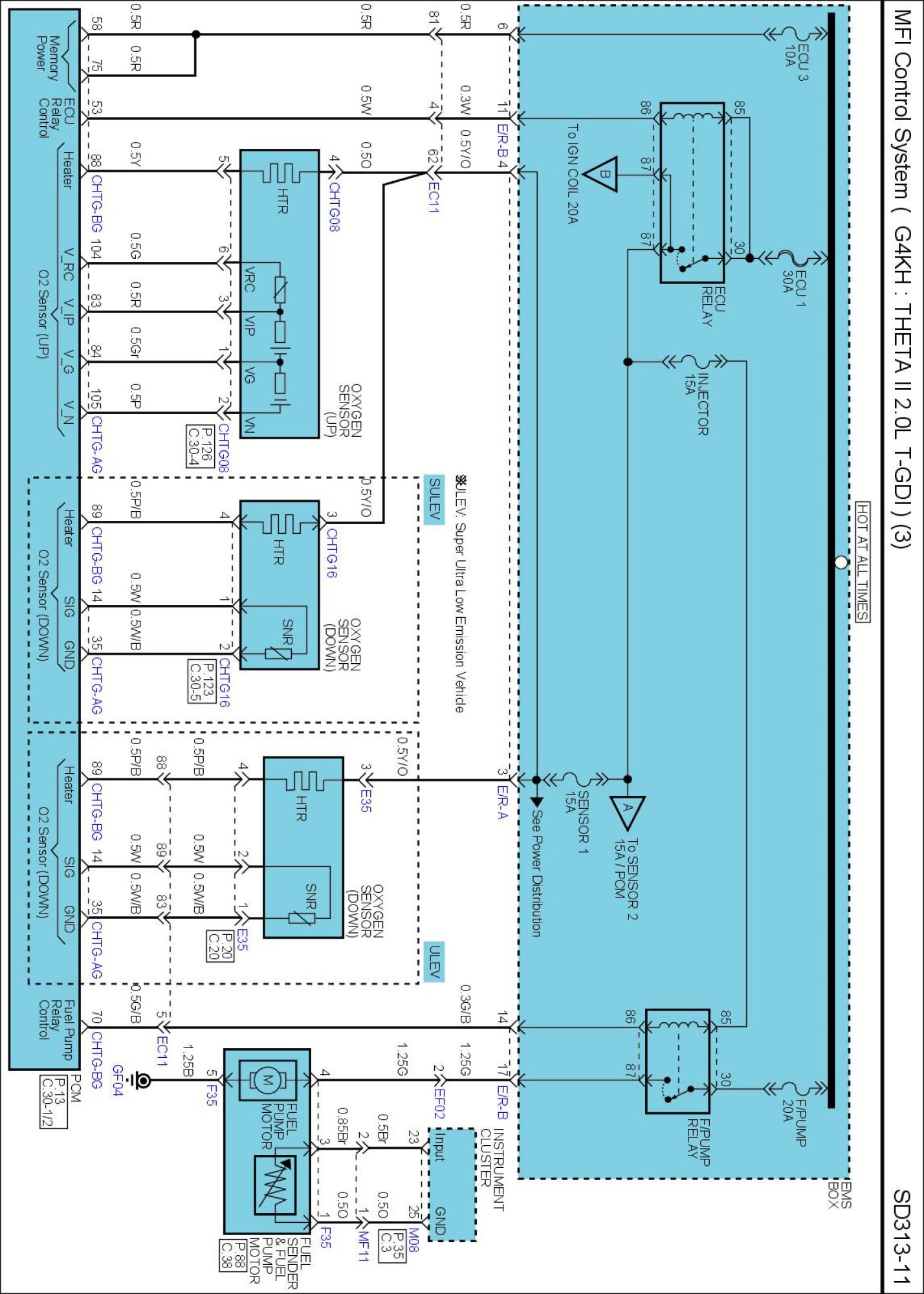

SD313-11 MFI Control System (3):

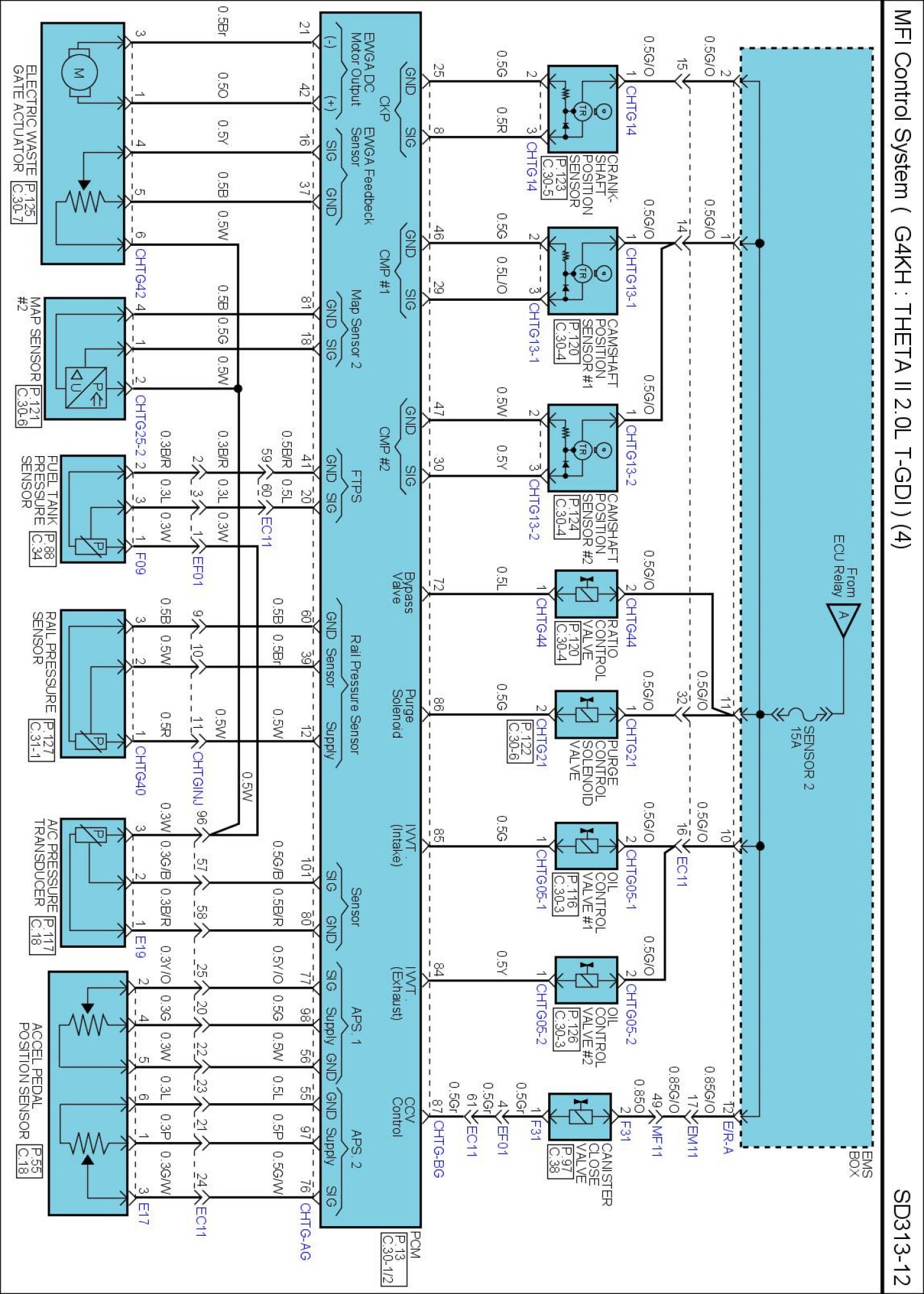

SD313-12 MFI Control System (4):

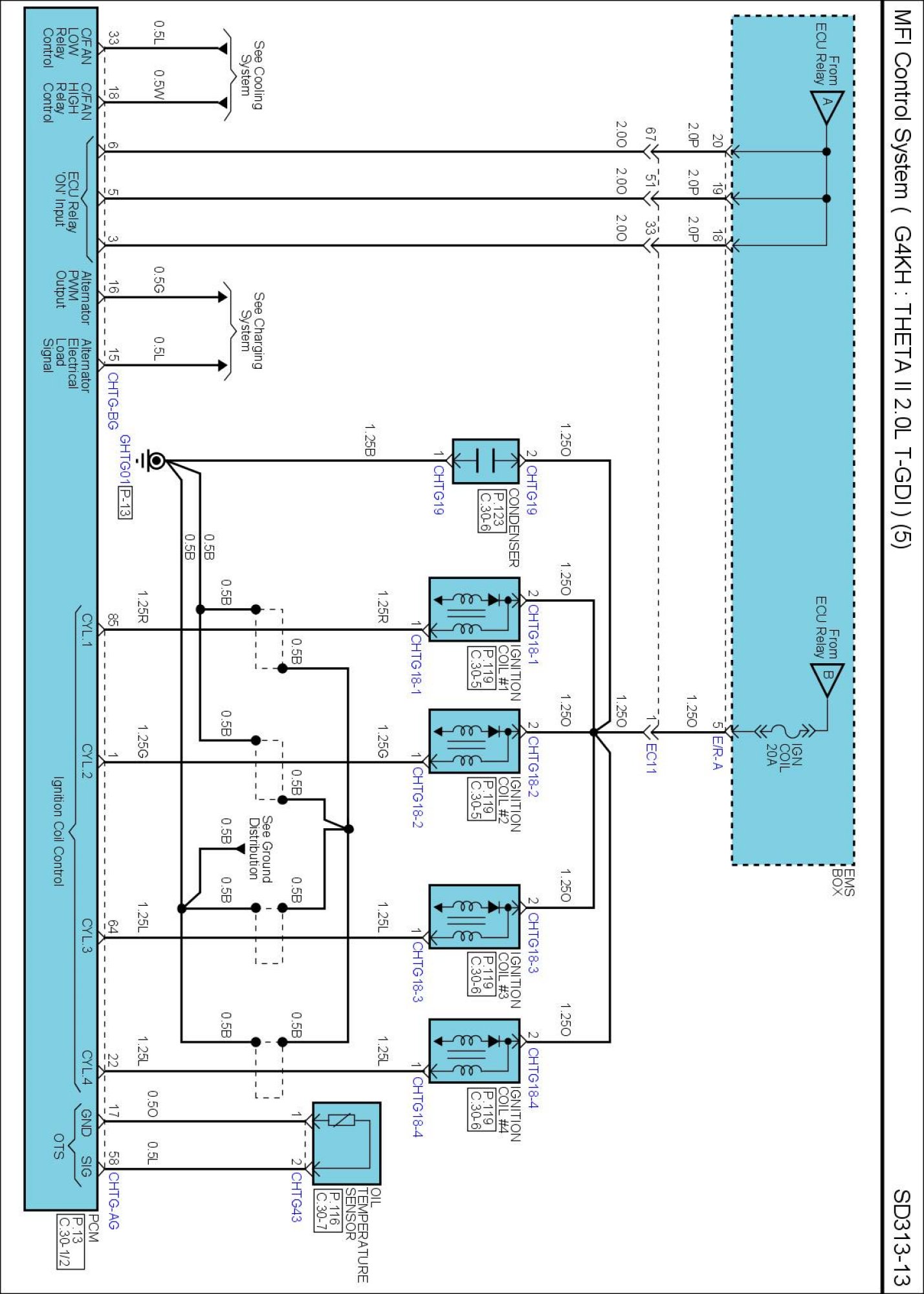

SD313-13 MFI Control System (5):

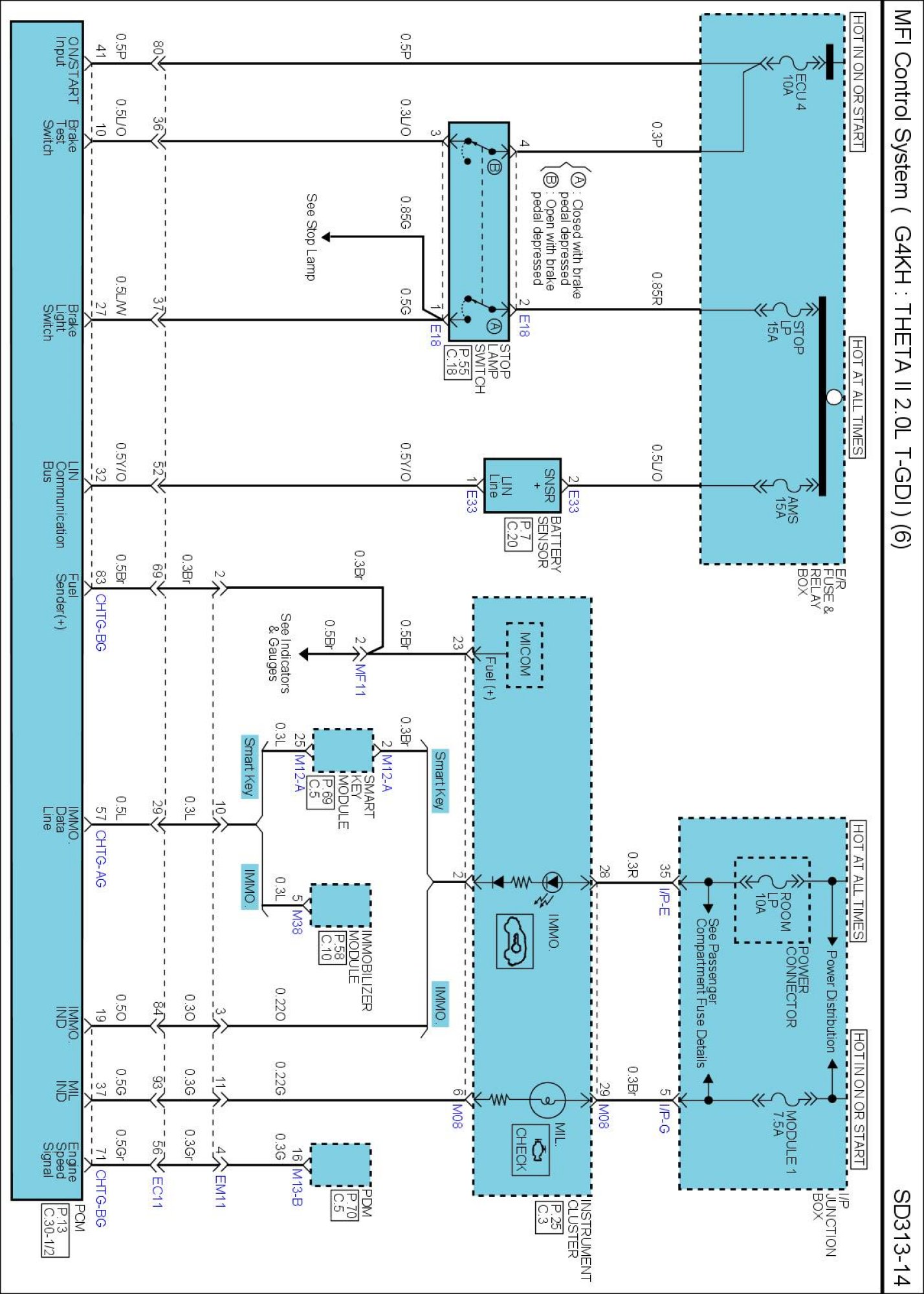

SD313-14 MFI Control System (6):

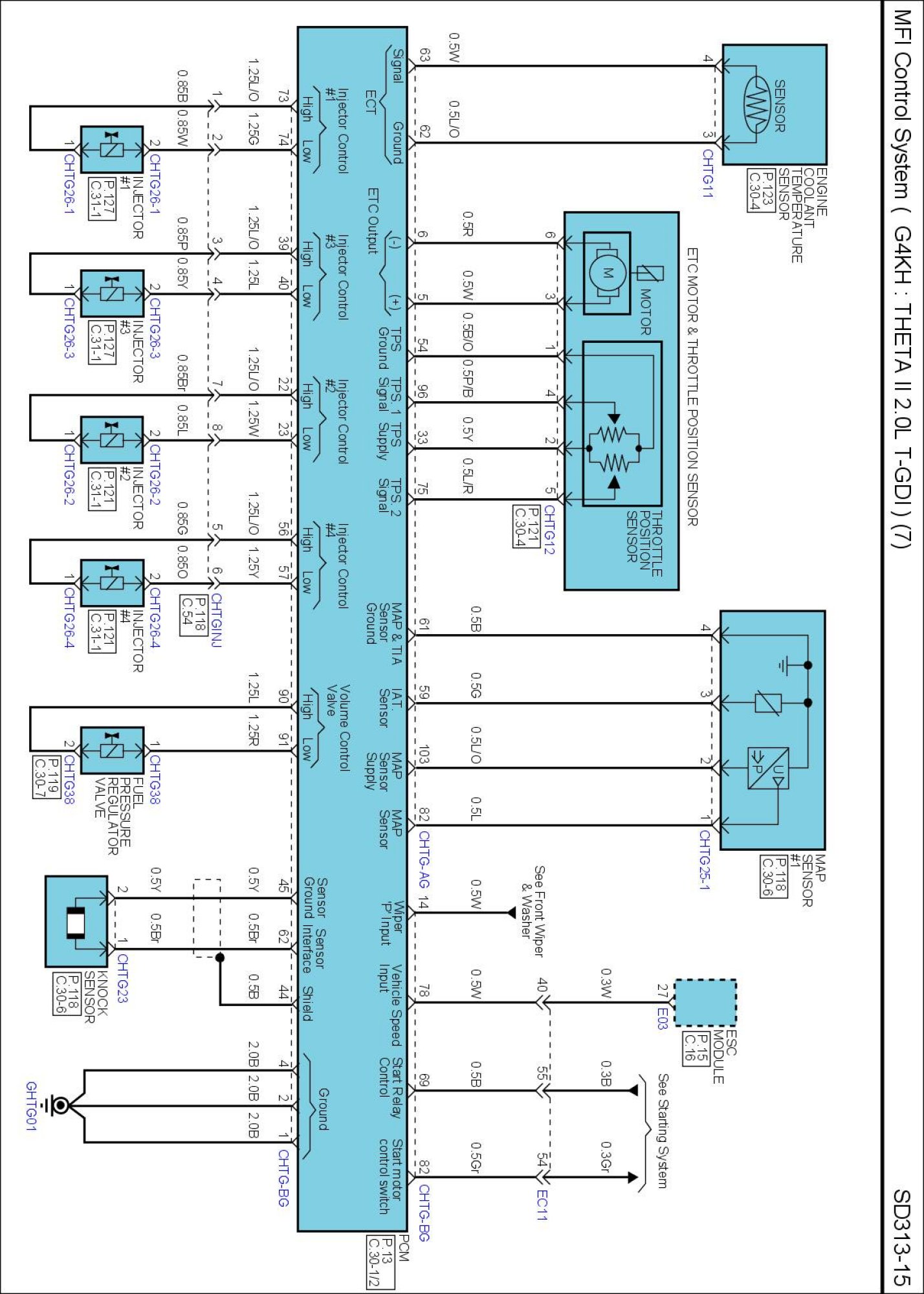

SD313-15 MFI Control System (7):

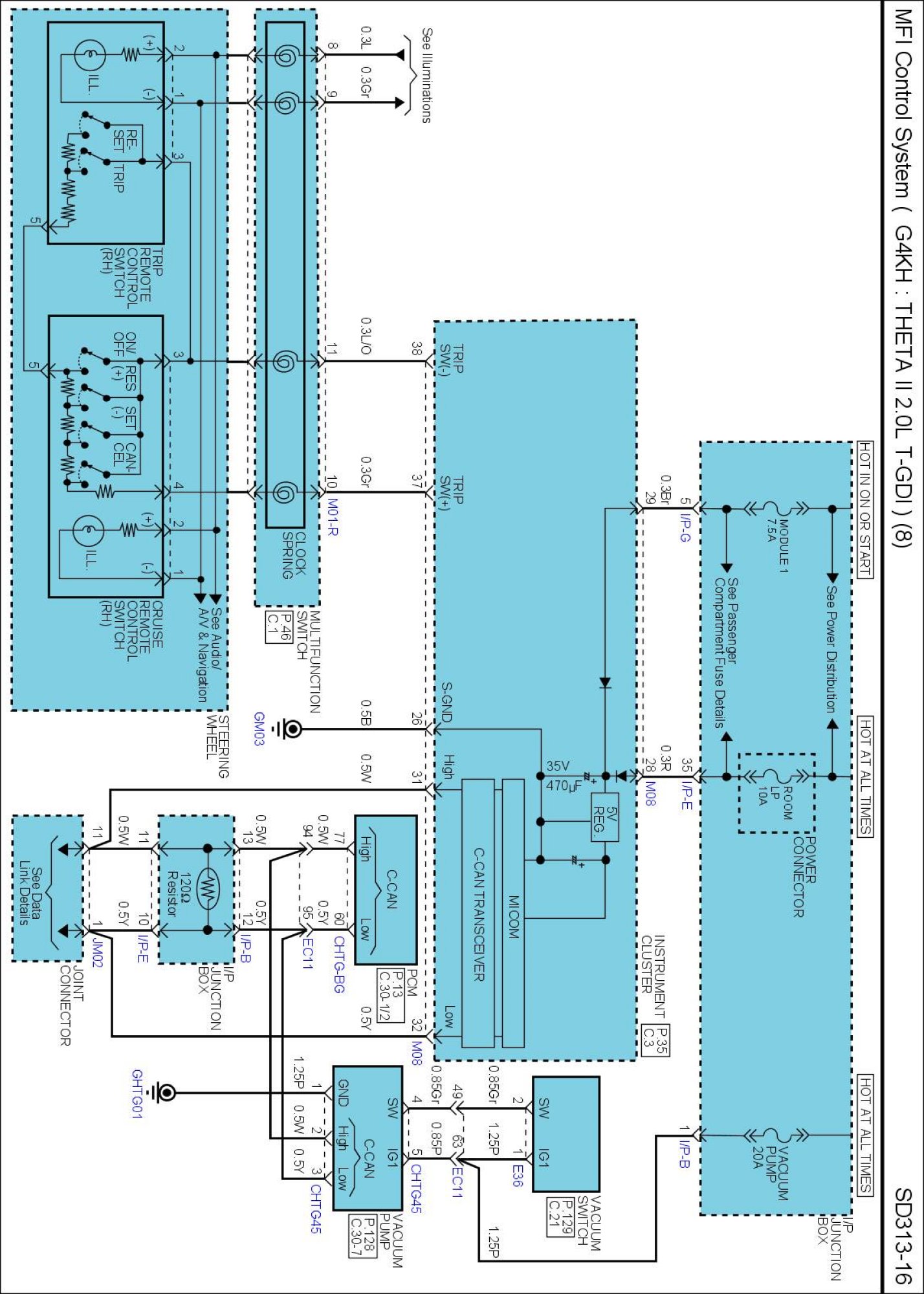

SD313-16 MFI Control System (8):
