Diagram Set SD360 (Starting System)
Diagram Set SD360 (Starting System)
SD360-3 Starting System (3):
SD360-4 Starting System (4):

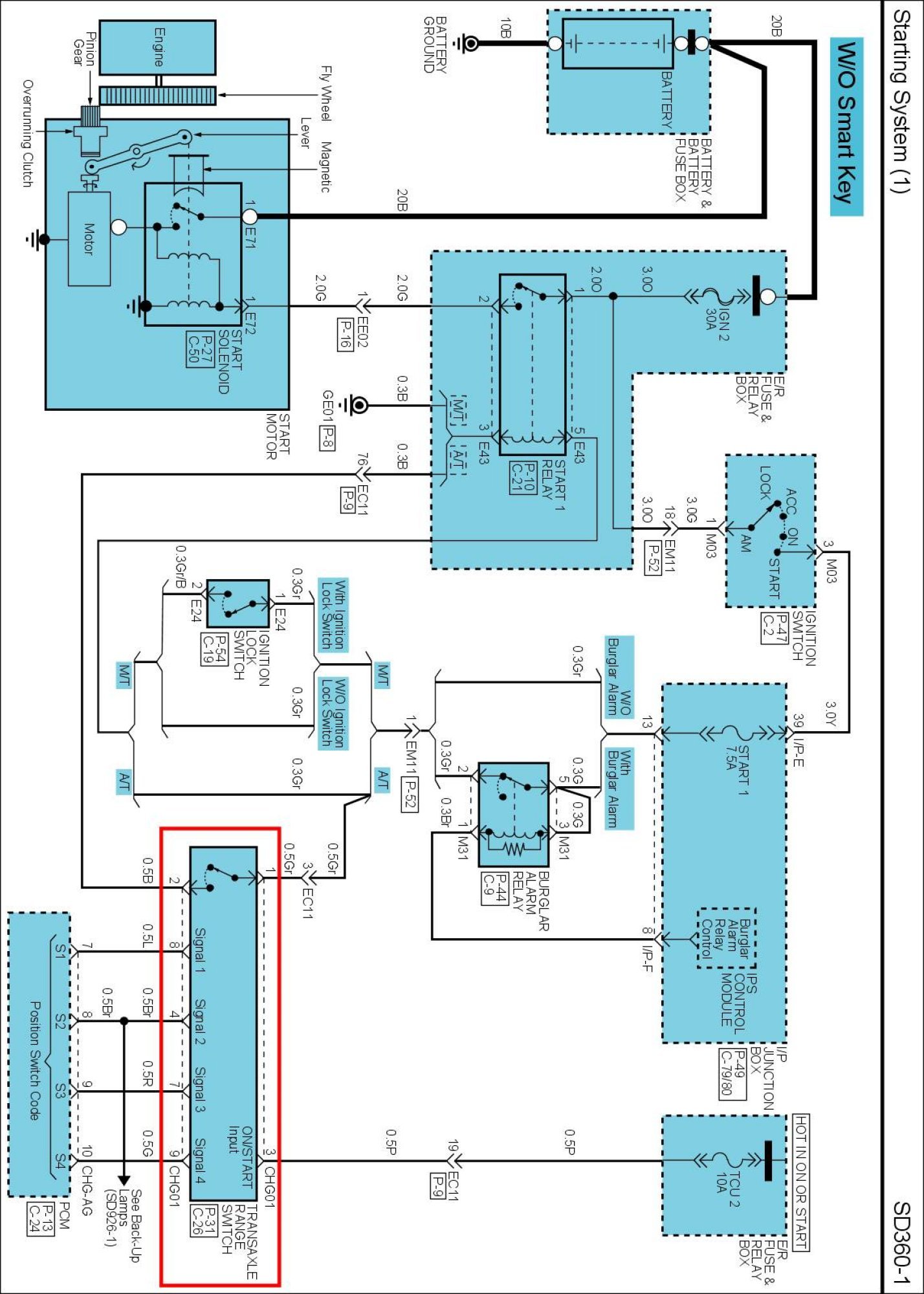

SD360-1 Starting System (1):

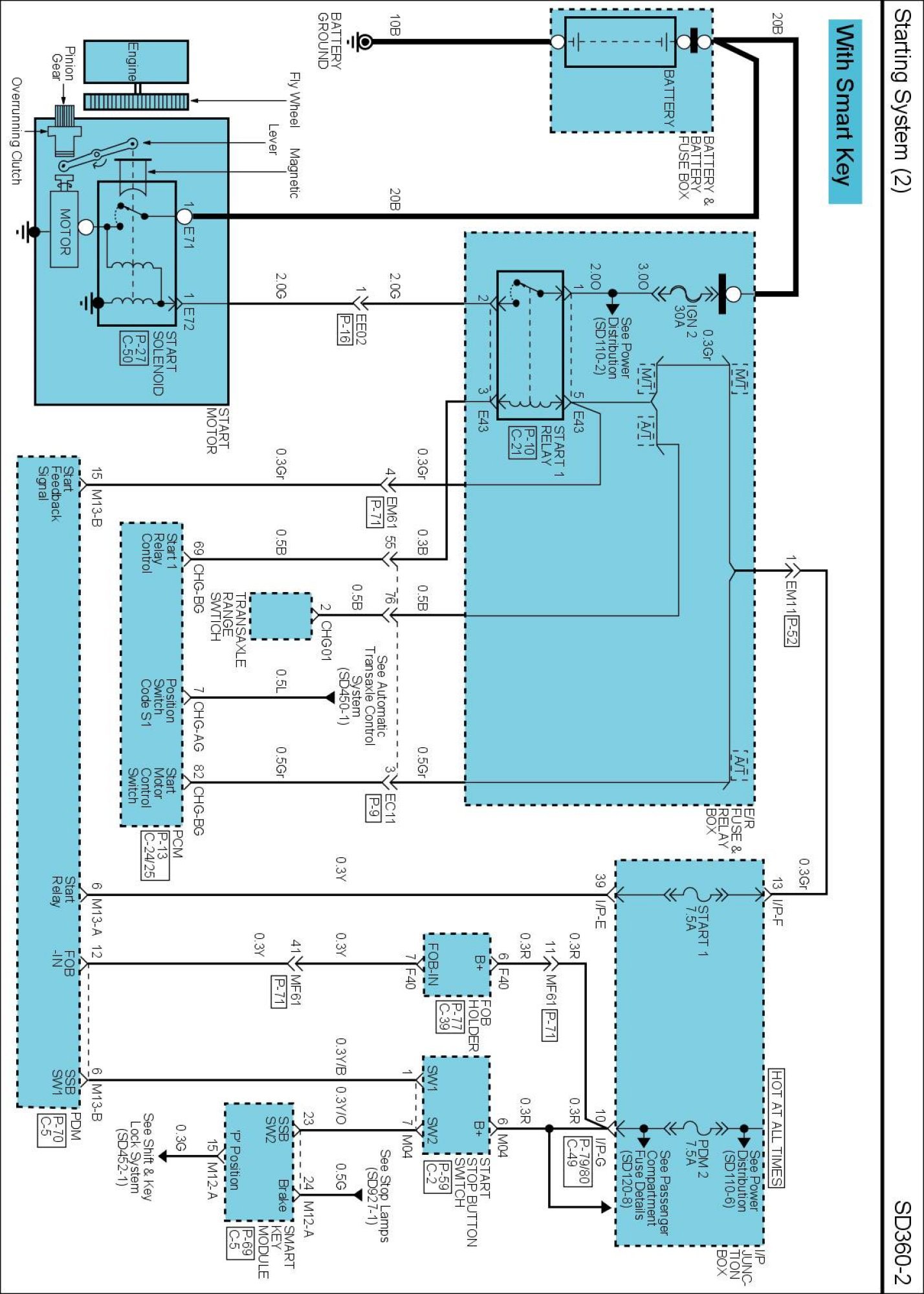

SD360-2 Starting System (2):
