Diagram Set SD940 (Indicators & Gauges)

SD940-1 Indicators & Gauges (1):




SD940-2 Indicators & Gauges (2):




SD940-3 Indicators & Gauges (3):

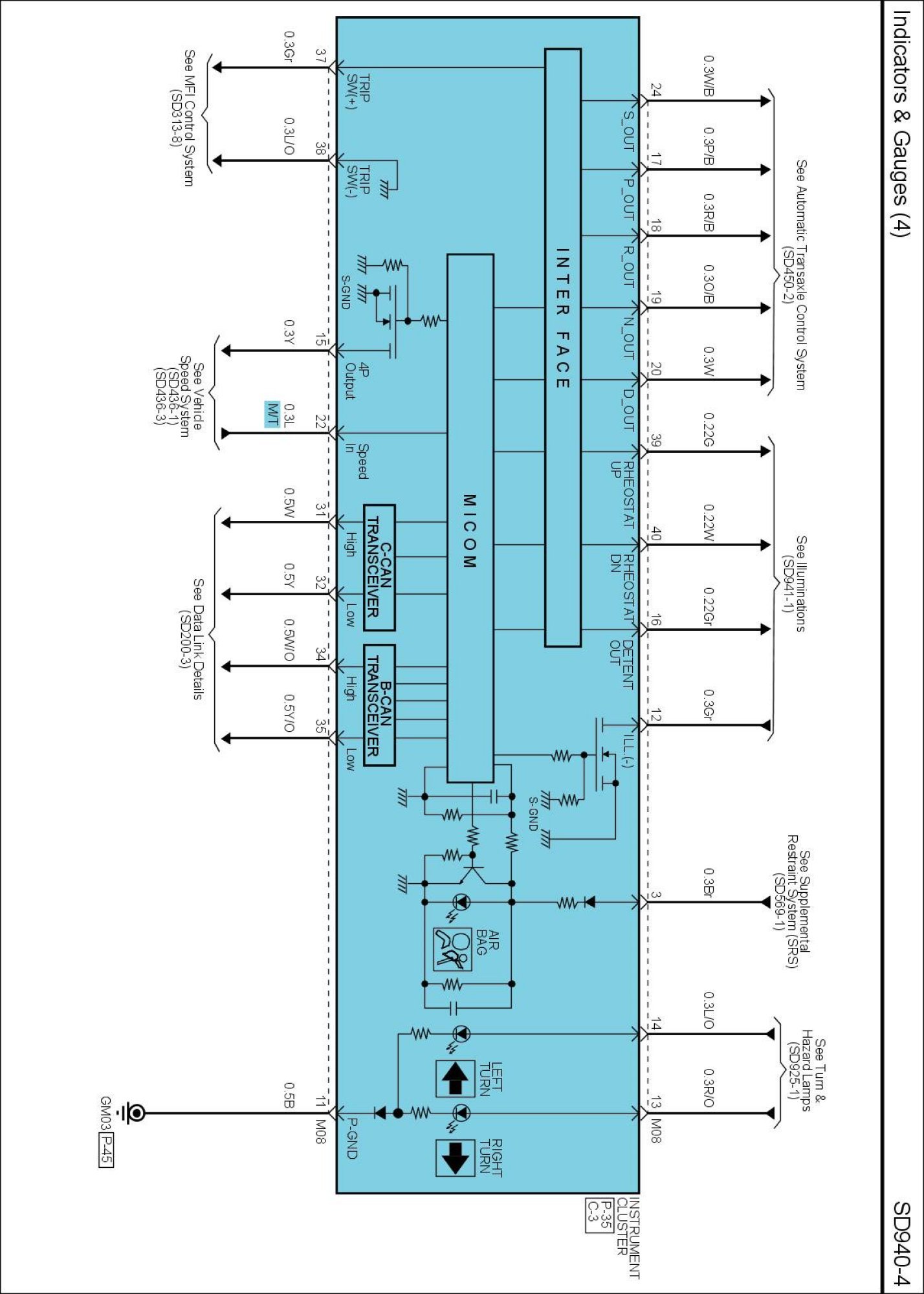

SD940-4 Indicators & Gauges (4):




SD940-1 Indicators & Gauges (1):




SD940-2 Indicators & Gauges (2):




SD940-3 Indicators & Gauges (3):




SD940-4 Indicators & Gauges (4):
