Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2011
>>
Sonata L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Sunroof / Moonroof
>>
Sun Roof
Sun Roof

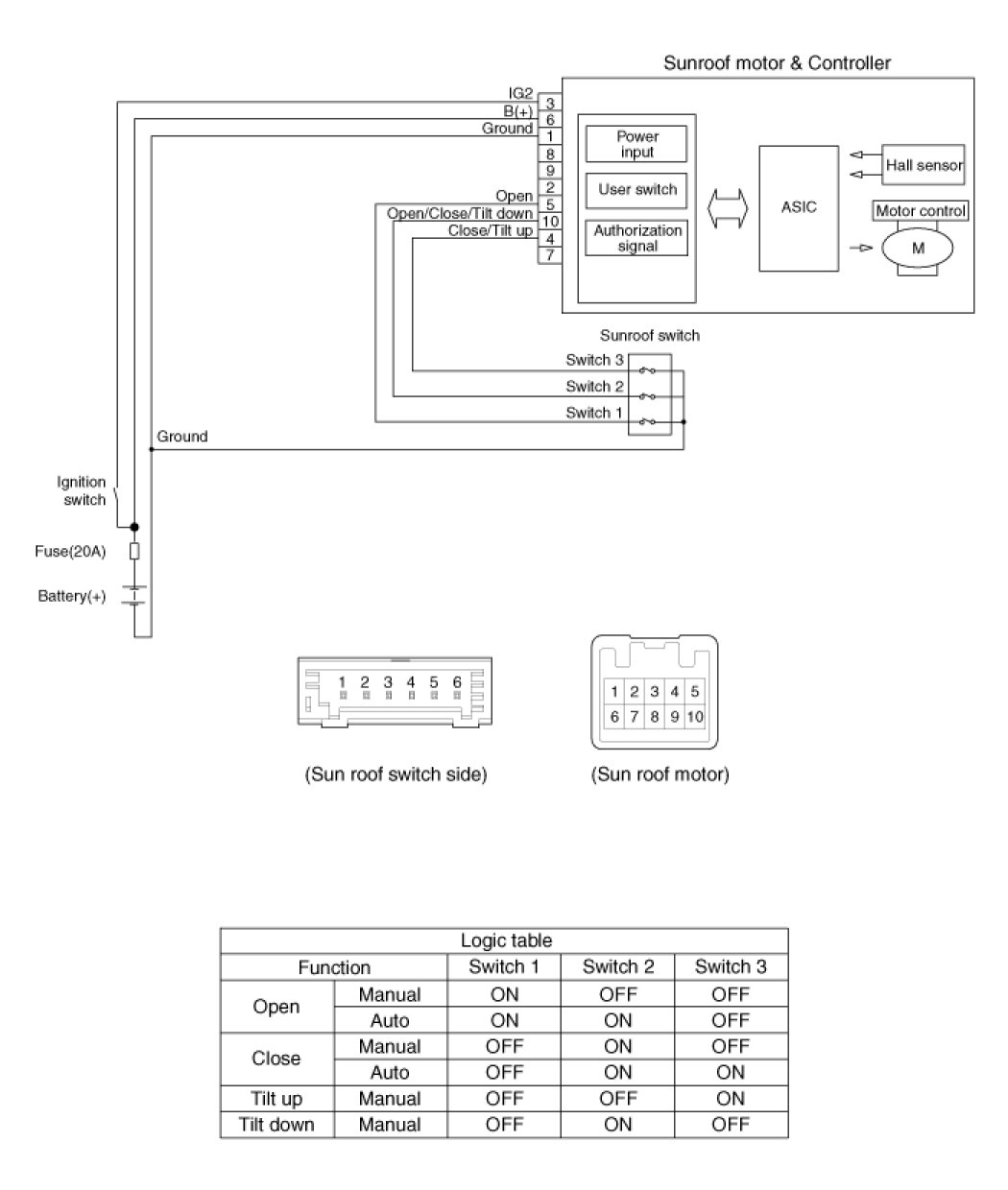

Circuit Diagram
