Fuel Door Switch: Testing and Inspection

Inspection

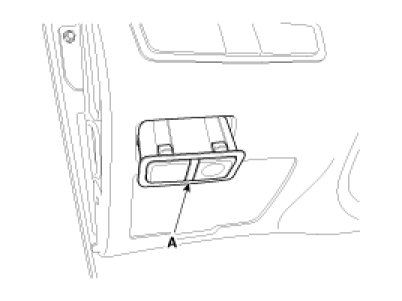

1. Remove the switch assembly (A) from the crash pad lower panel.




2. Disconnect the switch connector.

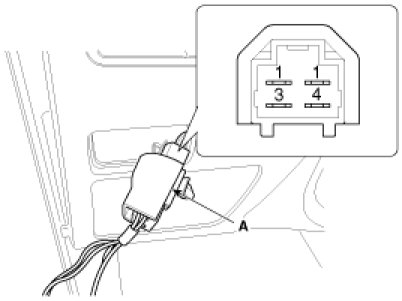

3. Check for continuity between the terminal No.3 and No.4.
If there is no continuity, replace the fuel filler door open switch.
(1. Trunk B+, 2. Trunk solenoid, 3. Fuel filler B+
4. Fuel filler door open solenoid)
