Repair Procedures

Replacement

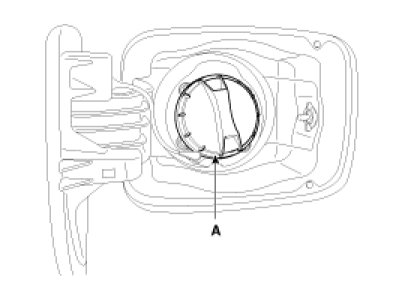

1. Remove the fuel fill door cap (A).

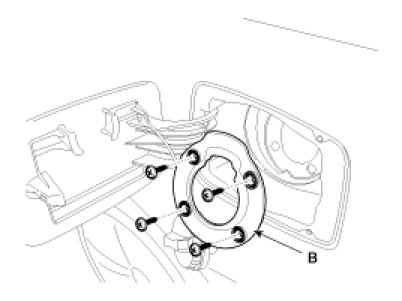

2. After loosening the mounting screws, then remove the fuel fill door catch packing (B).

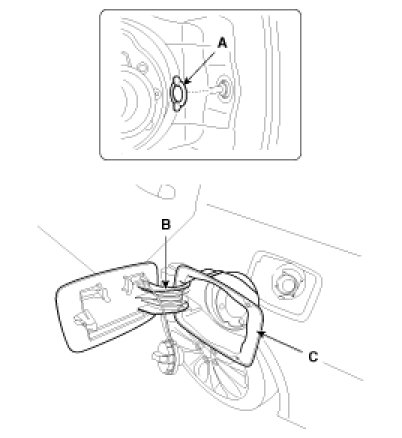

3. Detach the clips (A), then remove the fuel fill door (B).

NOTE:
- Replace fuel fill door housing (C) with new one.




4. Installation is the reverse of removal.

NOTE:
- Make sure the fuel fill door locks/unlocks and opens/closes properly.
