Repair Procedures

Replacement

Floor Console Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Using a screwdriver or remover, remove the crash pad garnish (A).




2. Using a screwdriver, remove the knob (A) and boots (B).




3. Using a screwdriver or remover, remove the console upper cover (A).




4. Disconnect the connectors (A).

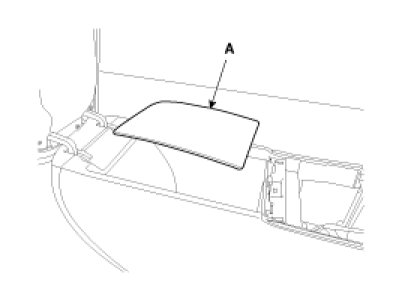

5. Remove the console tray mat (A).

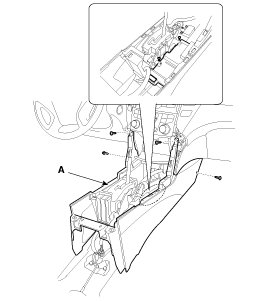

6. After loosening the mounting screws and bolts, then remove the rear console assembly (A).




7. Disconnect the connector (A).




8. Remove the extension side cover (A).

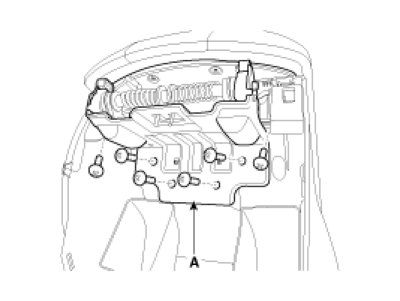

9. After loosening the console mounting screws, then remove the console assembly (A).




10. Installation is the reverse of removal.

NOTE:
- Make sure all connectors are connected properly.
- Replace any damage clips.

Armrest Replacement

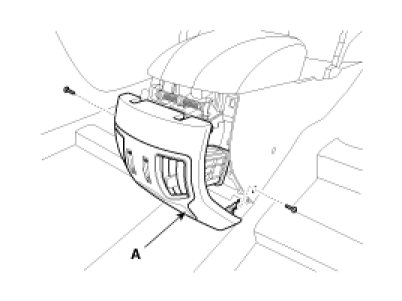

1. After loosening the mounting screws, then remove the console rear cover (A).




2. After loosening the mounting screws, then remove the armrest (A).




3. Installation is the reverse of removal.
