Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>

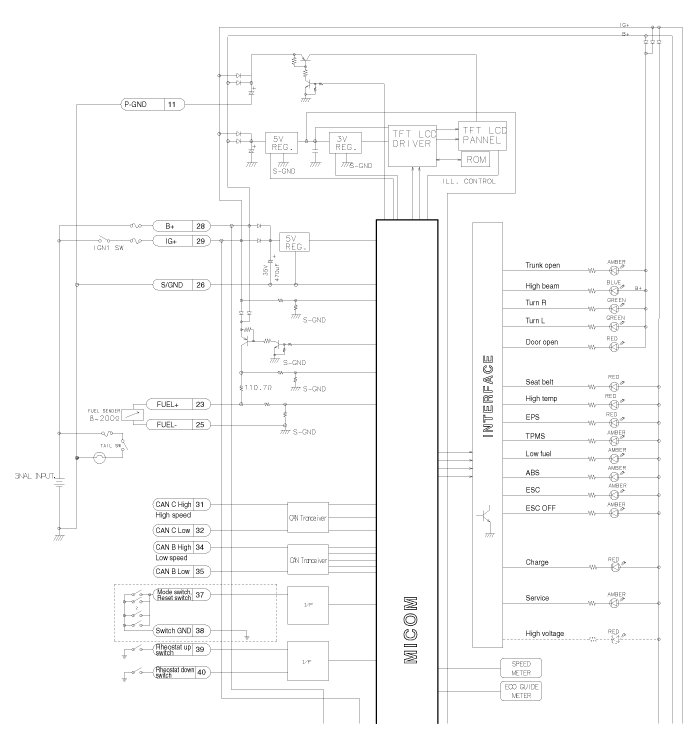

Circuit Diagram

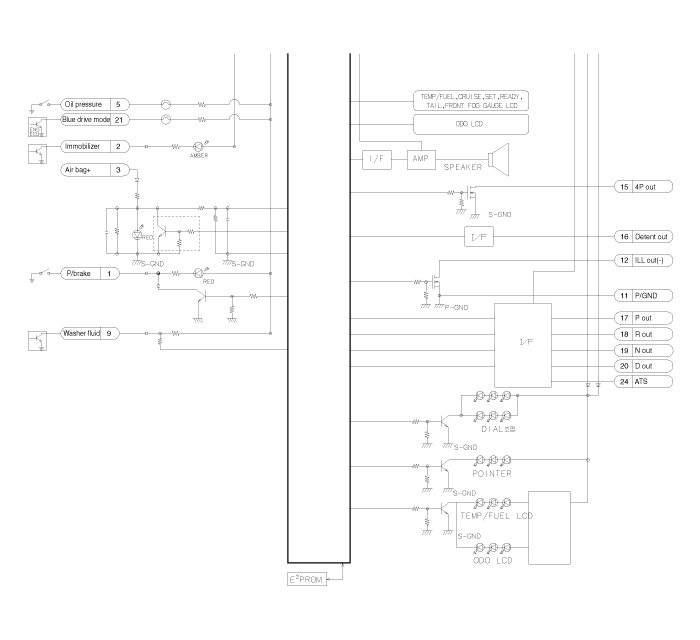

Circuit Diagram
Circuit Diagram
Input/Output Specification
