Power Distribution and Passenger Compartment Fuse Details
>>
Wiring Diagram Index
Wiring Diagram Index

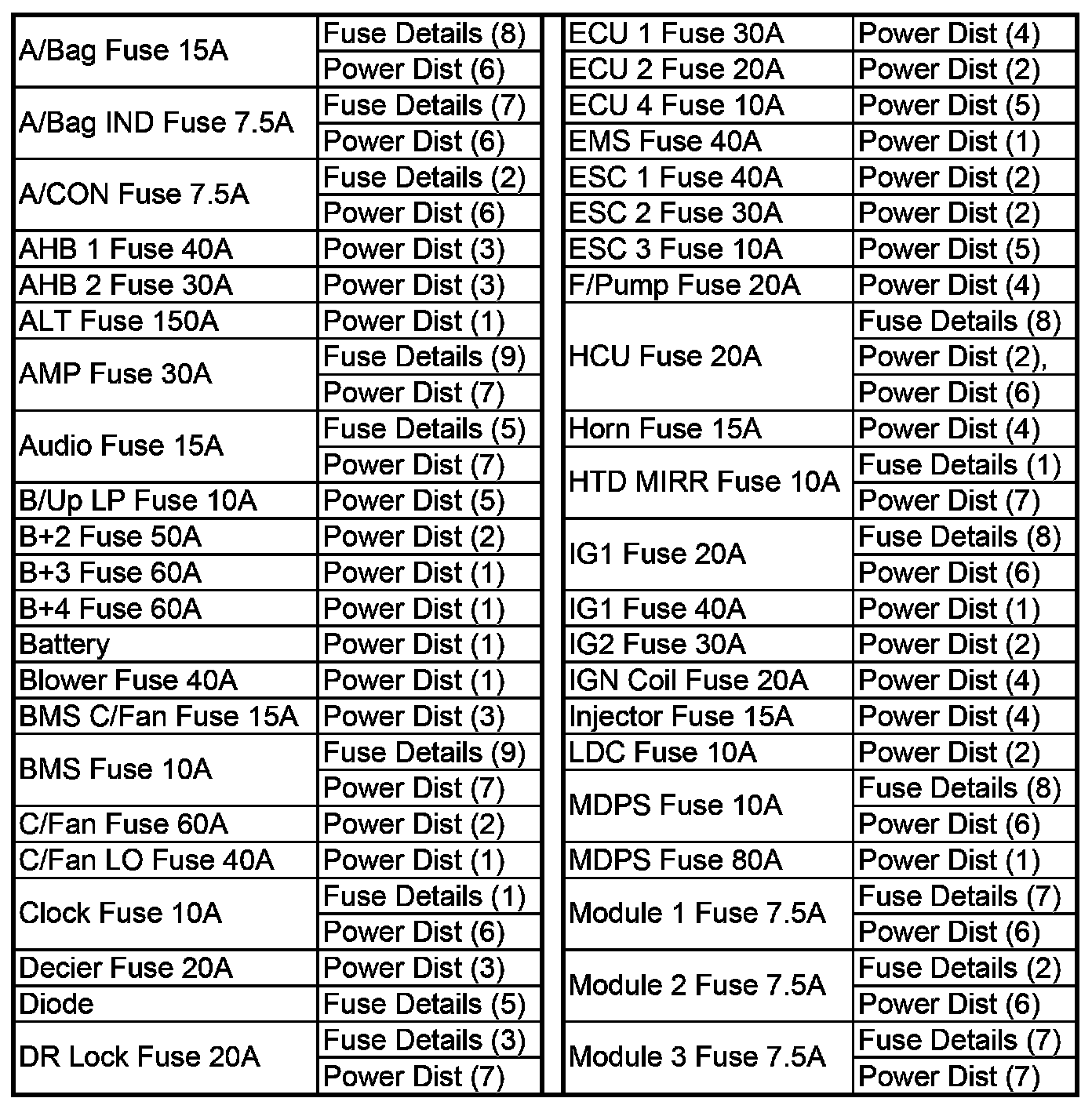

A/B - Mo:

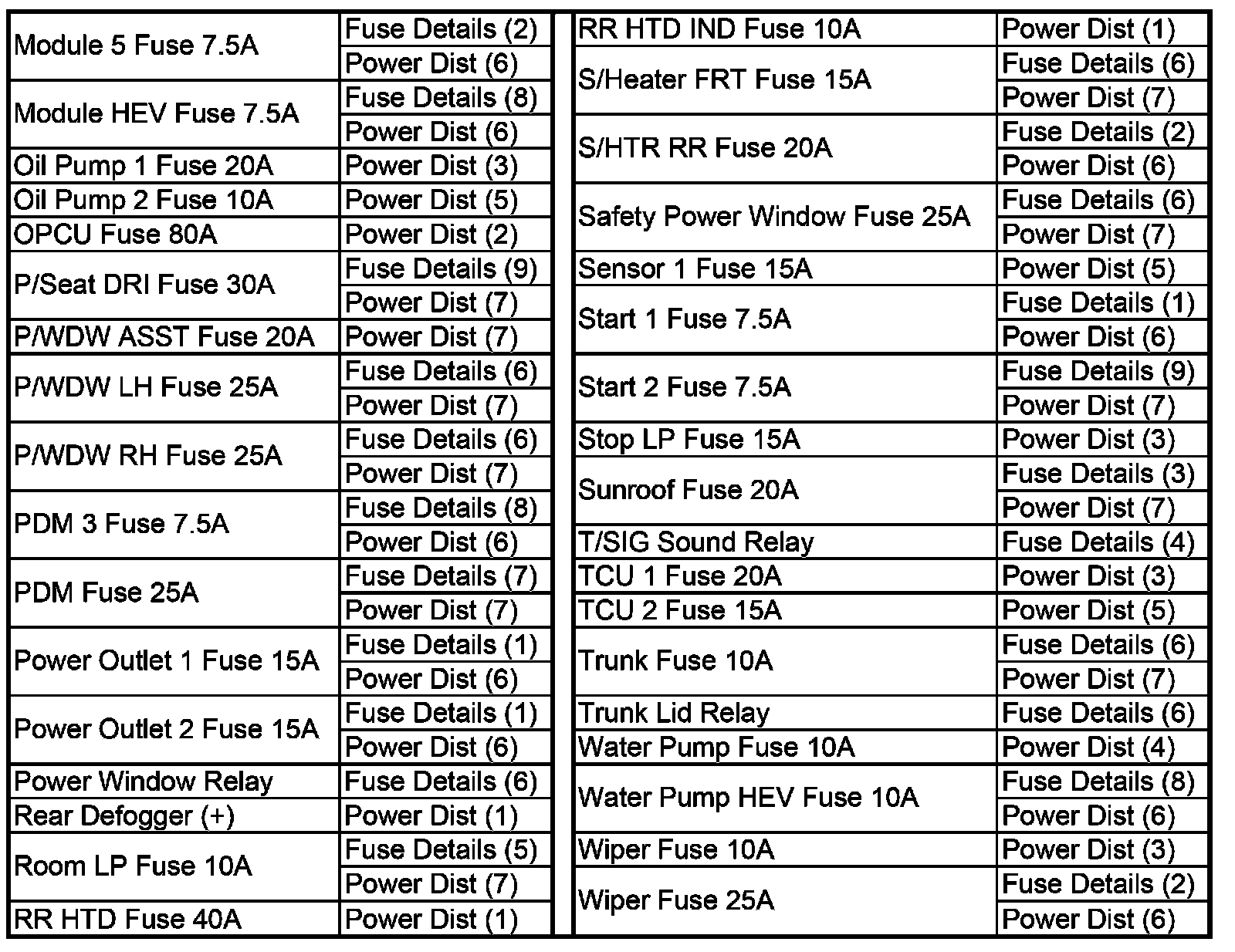

Mo - Wi:
