Blower Motor Relay: Locations

Fuse & Relay Information

E/R Fuse & Relay Box View:

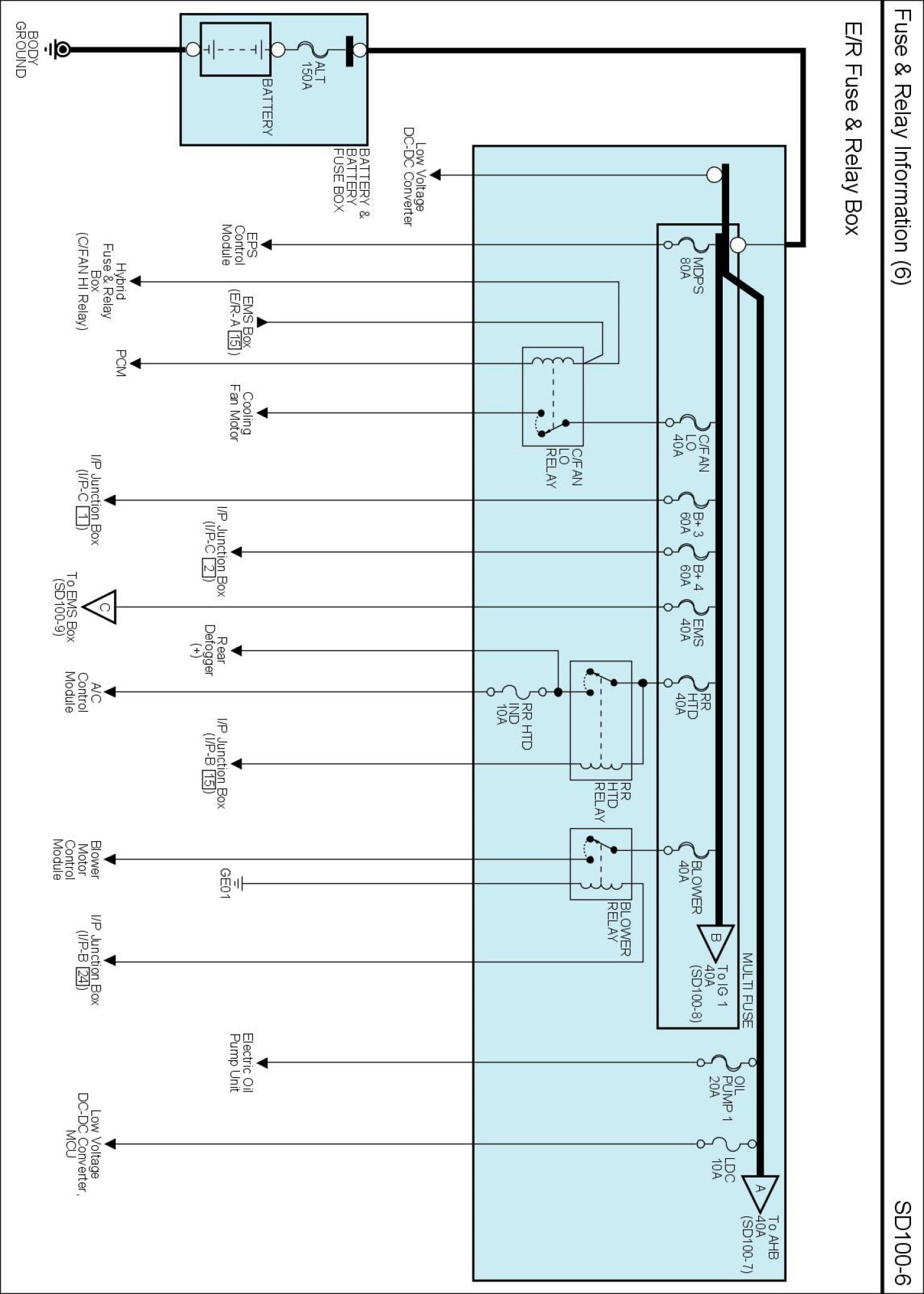

E/R Fuse & Relay Box Circuit Details:




E/R Fuse & Relay Box View:

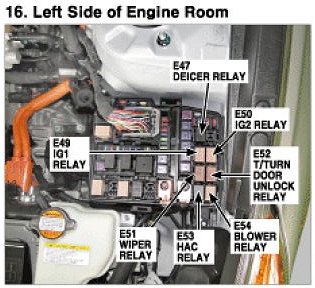

Photo 16






Photo 91
