Home >> Hyundai >> 2012 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> F11 High-mounted Stop Lamp (4DR)

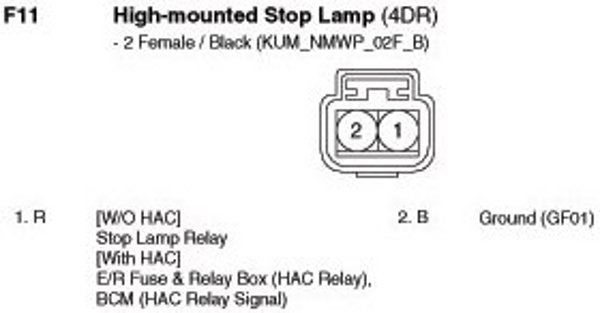

F11 High-mounted Stop Lamp (4DR)

F11 High-mounted Stop Lamp (4DR):
