Auxiliary Input / Output Jack, Entertainment System
>>
AVN System
AVN System

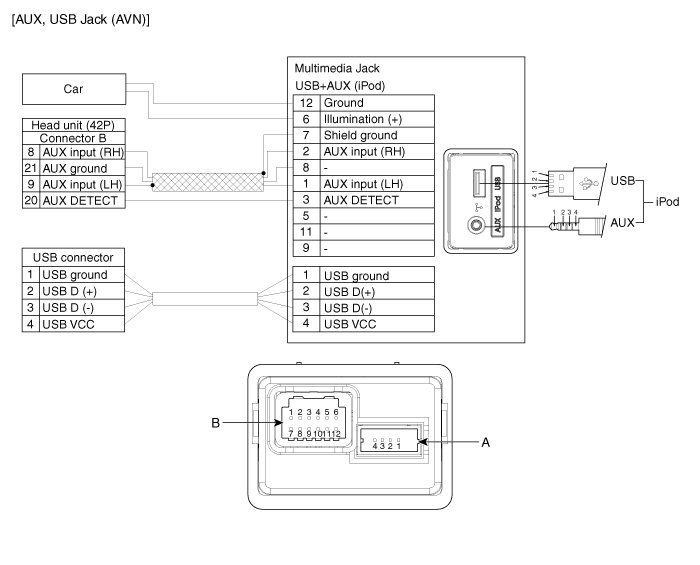

Circuit Diagram

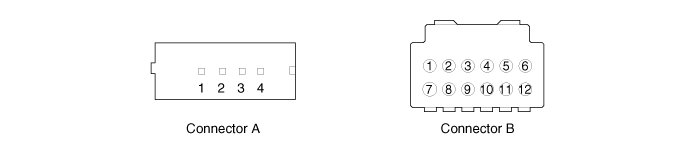

Connector A

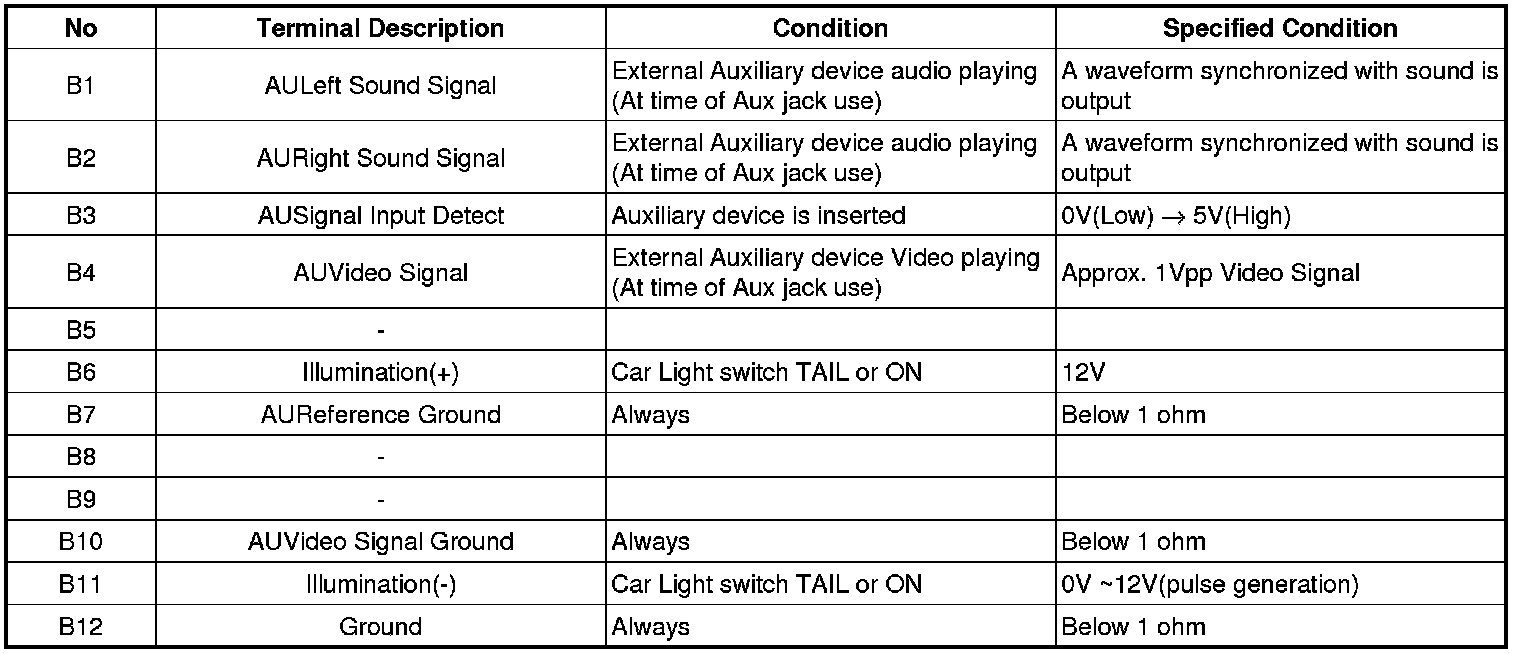

Connector B
