Home >> Hyundai >> 2012 >> Sonata L4-2.4L Hybrid >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> GM03

GM03

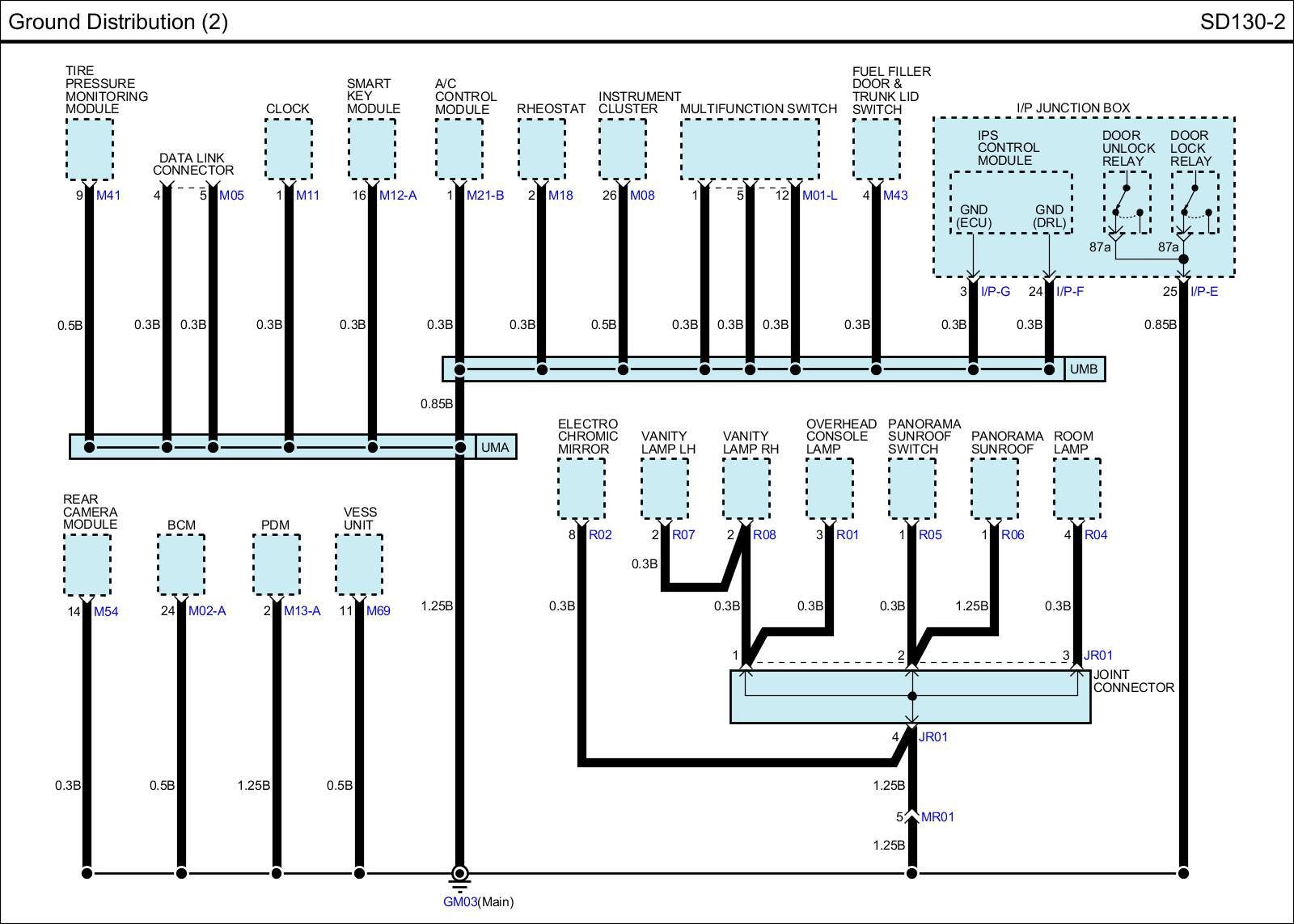

SD130-2 Ground Distribution (2):
