Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2013
>>
Azera V6-3.3L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Sunroof / Moonroof
>>
Diagrams
Sunroof / Moonroof: Diagrams

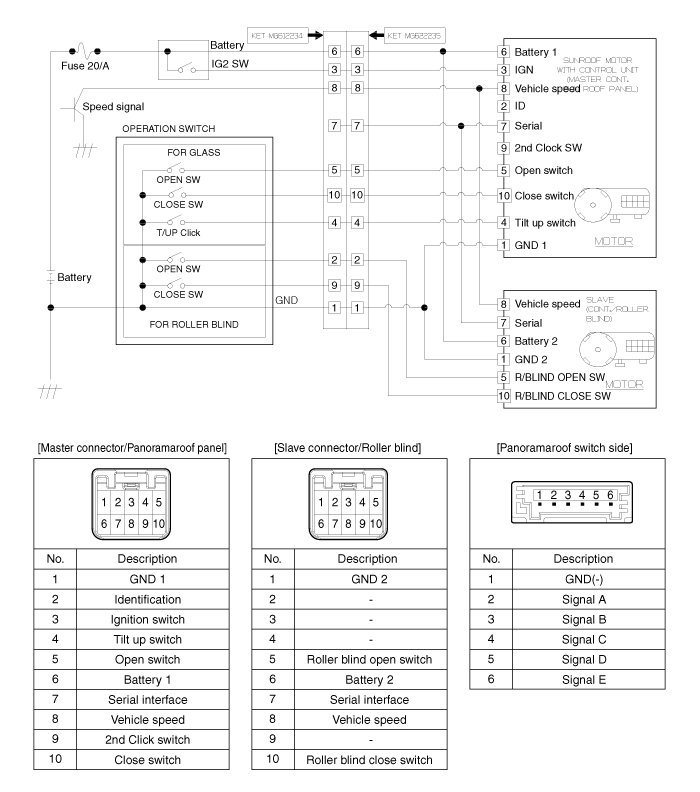

Circuit Diagram (1)

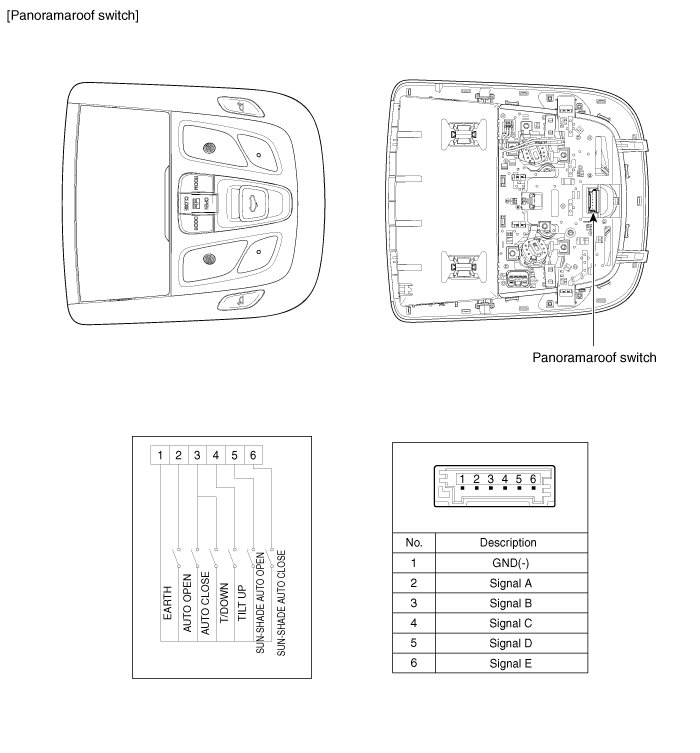

Circuit Diagram (2)
