Power Window Switch





Circuit Diagram

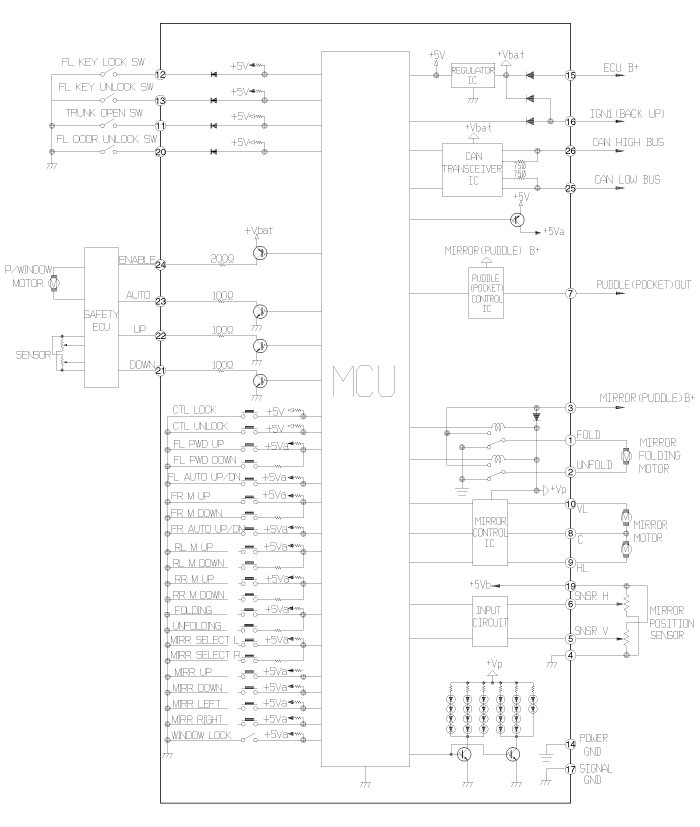

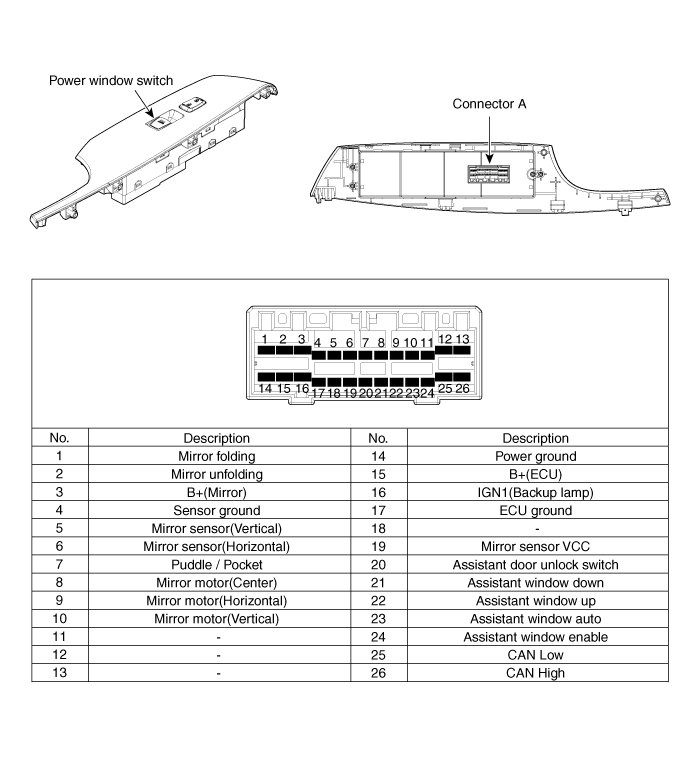

Driver Power Window Switch (1)





Driver Power Window Switch (2)





Passenger Power Window Switch

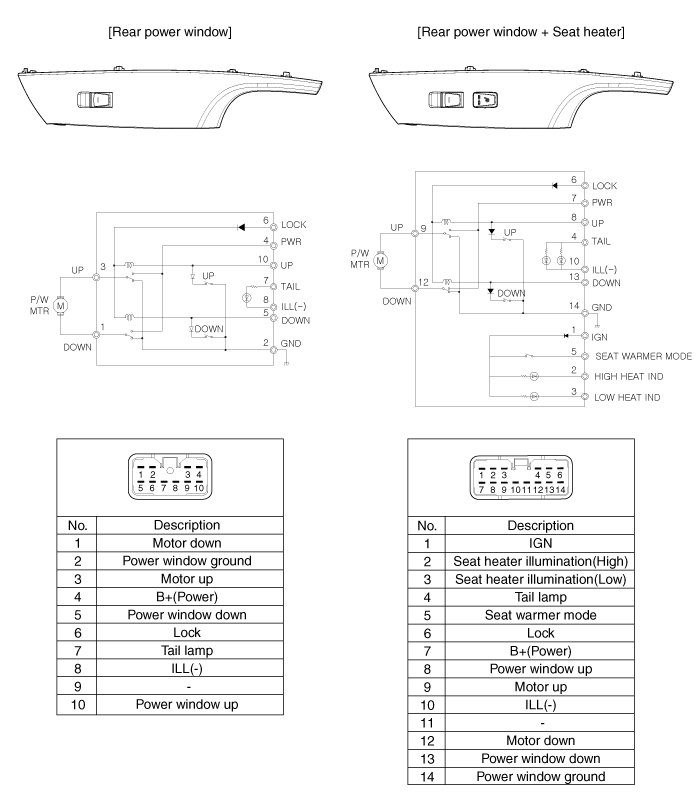

Rear Power Window Switch
