Rear Assist Arm

Replacement

1. Remove the rear wheel & tire.

Tightening torque:
88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

CAUTION:
Be careful not to damage to the hub bolts when removing the rear wheel & tire.

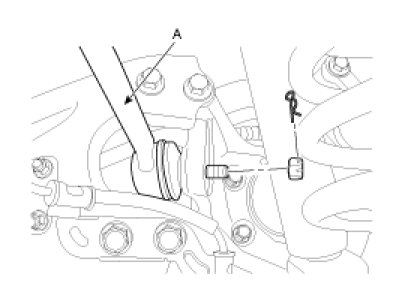

2. Remove the split pin and castle nut and then disconnect the rear assist arm (A) from the rear axle.

Tightening torque:
78.5 - 88.3 N.m (8.0 - 9.0 kgf.m, 57.9 - 65.1 lb-ft)




3. Loosen the bolt & nut and then remove the rear assist arm (A) with the sub frame.

Tightening torque:
107.9 - 117.7 N.m (11.0 - 12.0 kgf.m, 79.6 - 86.8 lb-ft)




4. Installation is the reverse of removal.
5. Check the alignment.


Inspection

1. Check the bushing for wear and deterioration.
2. Check for all bolts and nut.
