Front Seat Belt

Replacement

Front Seat Belt Replacement

CAUTION:
- When installing the belt, make sure not to damaged the pretensioner.

1. Remove the following items first :
A. Front seat assembly

B. Front and rear door scuff trim

2. Using a screwdriver or remover, remove the seat belt lower anchor (A).




3. Remove the center pillar lower trim (A).




4. After loosening the mounting screws, then remove the center pillar upper trim (A).

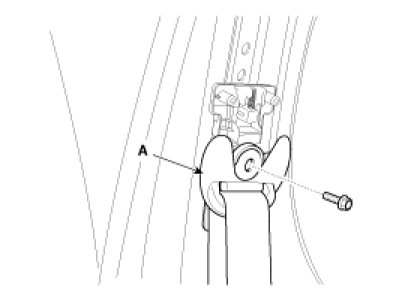

5. After loosening the mounting bolt, then remove the upper anchor (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

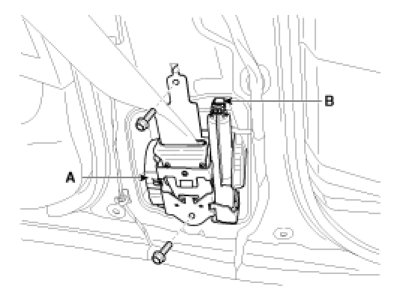

6. After disconnecting the pretensioner connector lock pin, remove the SIS connector (B), loosen the mounting bolt, then remove the pretensioner (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)




7. Installation is the reverse of removal.

Height Adjust Replacement
1. Remove the following items first :
A. Front seat assembly

B. Front and rear door scuff trim

C. Front seat belt anchor
D. Center pillar lower trim

E. Center pillar upper trim

F. Front seat belt upper anchor

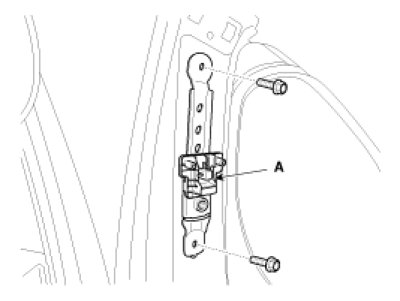

2. After loosening the bolts, then remove the height adjustor (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8 lb-ft)




3. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
- Make sure the height adjust properly.

Front Seat Belt Buckle Replacement
1. Remove the front seat.

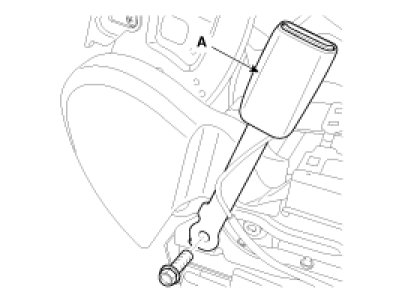

2. After loosening the mounting bolt, then remove the front seat belt buckle (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)




3. Installation is the reverse of removal.
