Water Pump
Water Pump

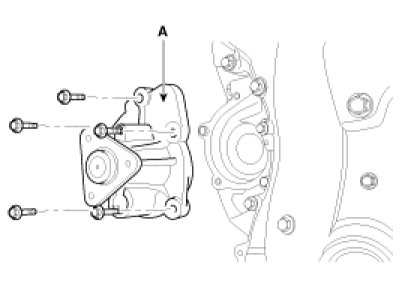

Water pump (A) with the gasket.
Tightening torque :
18.6 - 23.5N.m (1.9 - 2.4kgf.m, 13.7 - 17.4lb-ft)
