Clutch: Description and Operation

Operation

Concentric Slave Cylinder-C.S.C

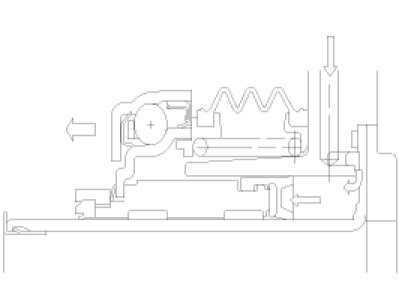

When the clutch pedal is pressed, oil pressure is transmitted along the arrow directions shown below and that moves the clutch slave cylinder and the diaphragm spring of the clutch cover.
