Ignition System: Locations

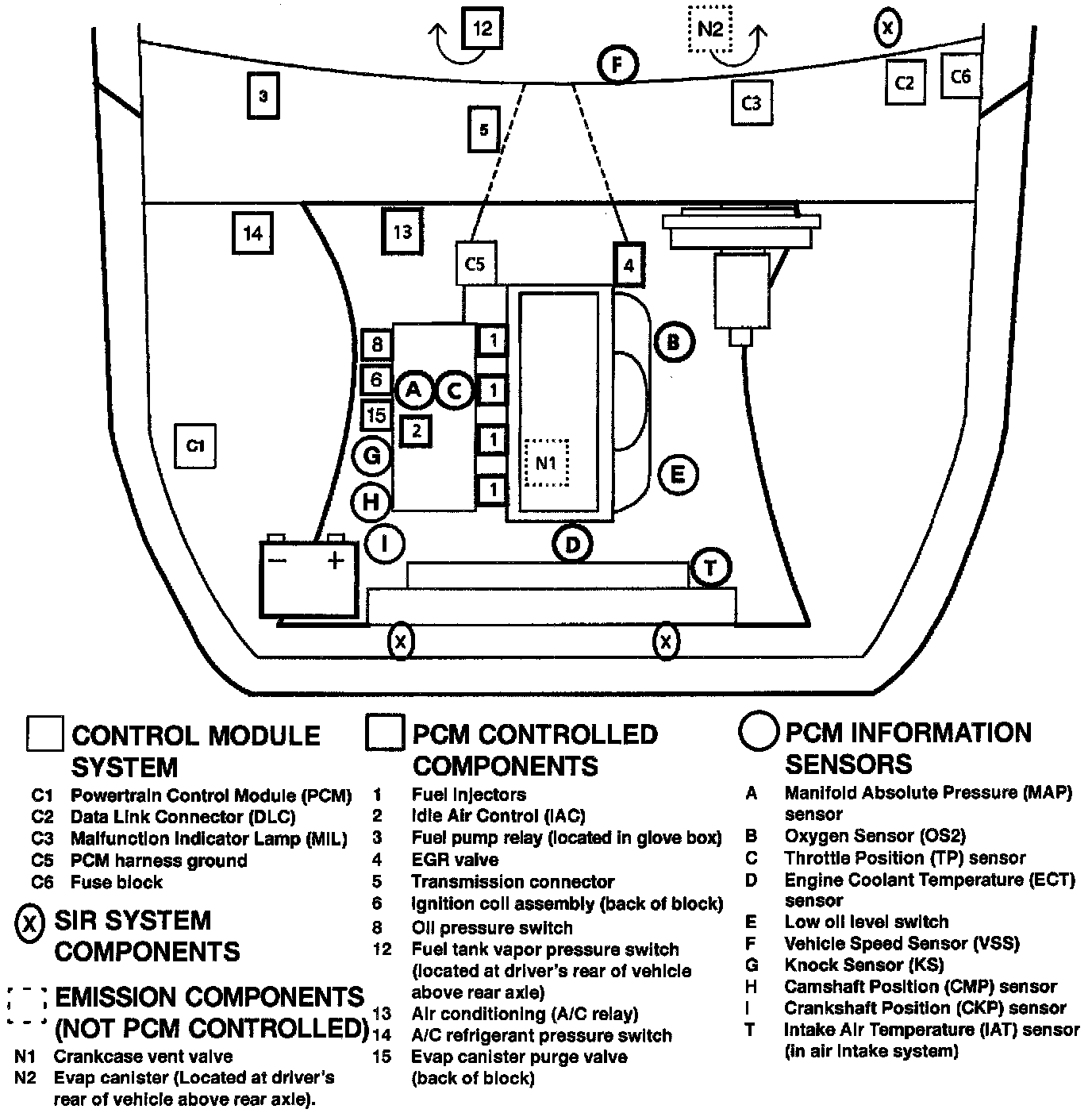

Component Locations:

NOTE: There are many components used to control fuel and emissions. The "Component Location" view shows all emission systems that may be used for the particular vehicle/engine combination. Not every vehicle requires all the systems or the components shown, but only the ones needed to meet emission standards for the area of certification.
