Power Brake Assist

P & B (PROPORTIONING AND BYPASS) VALVE





TORQUE SPECIFICATIONS

STOPLIGHT SWITCH

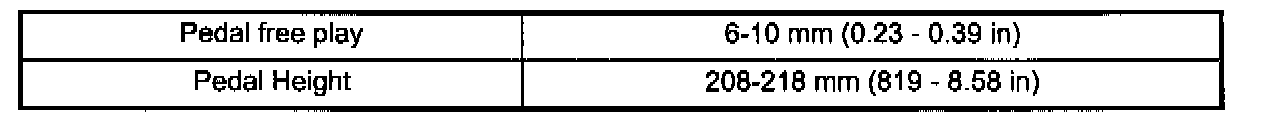

GENERAL SPECIFICATIONS

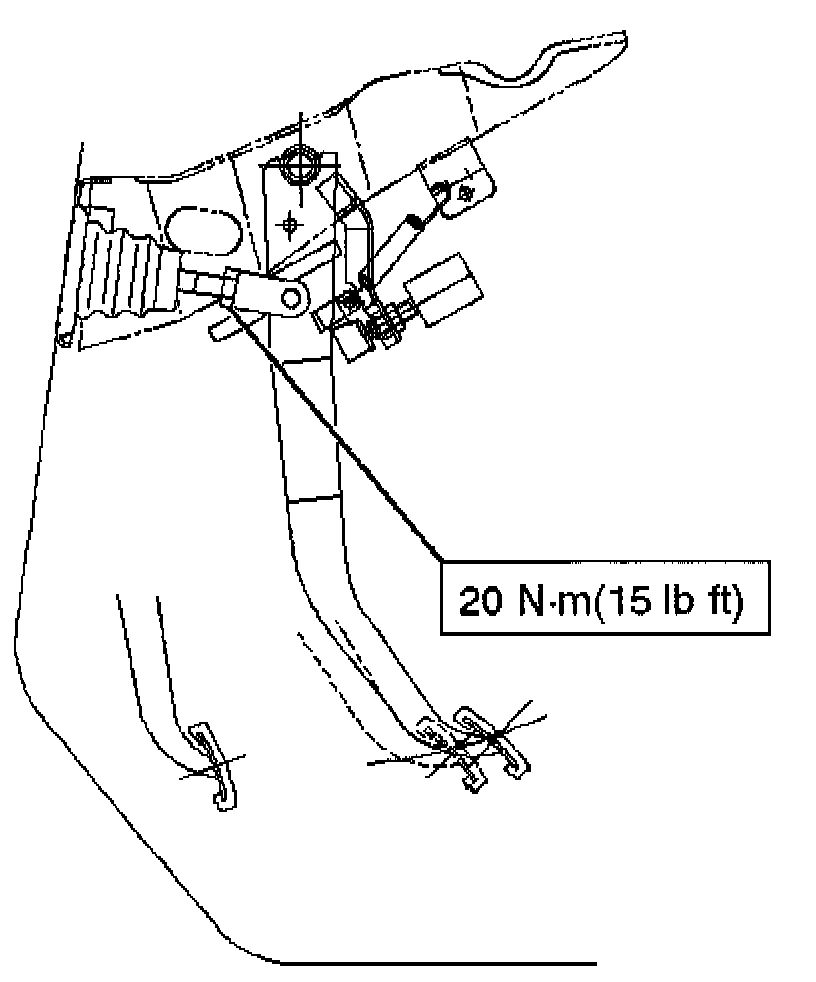

TORQUE SPECIFICATIONS

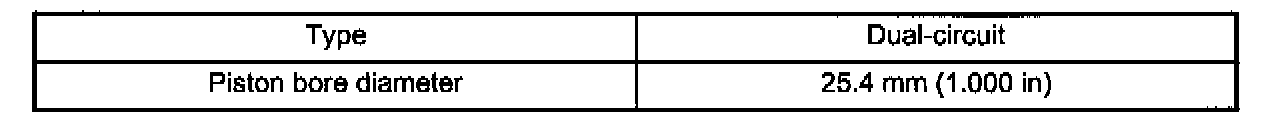

MASTER CYLINDER ASSEMBLY





GENERAL SPECIFICATIONS

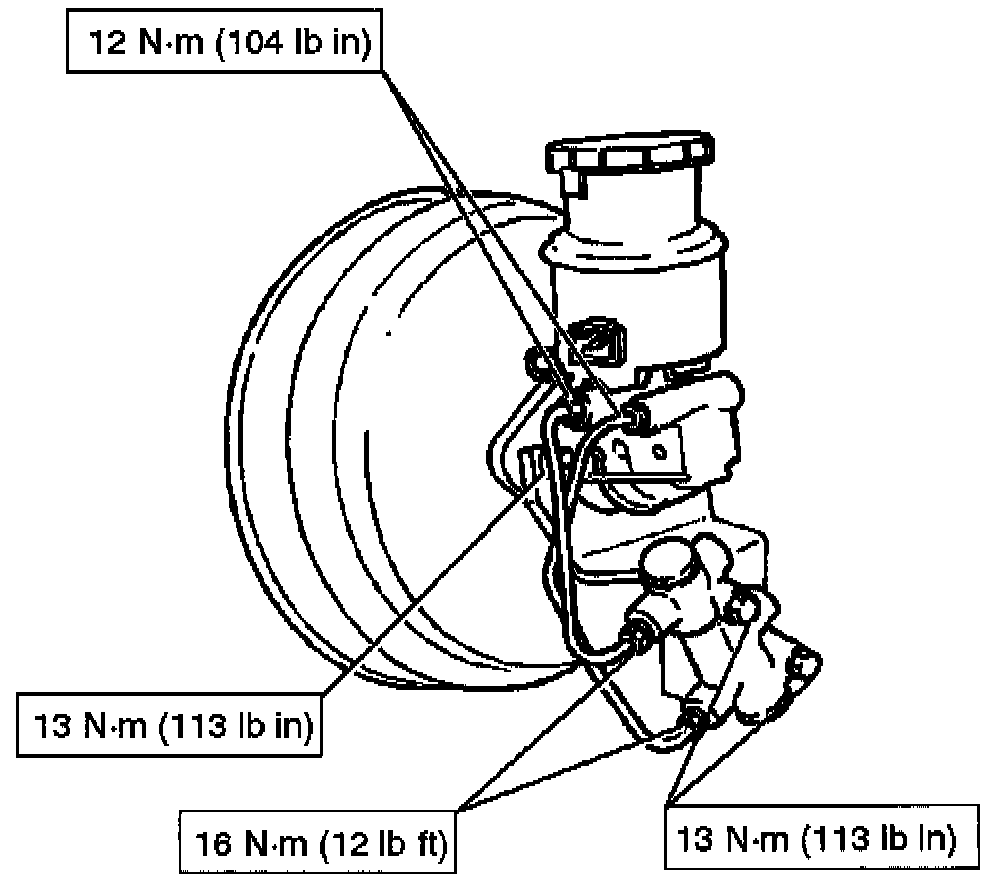

TORQUE SPECIFICATIONS

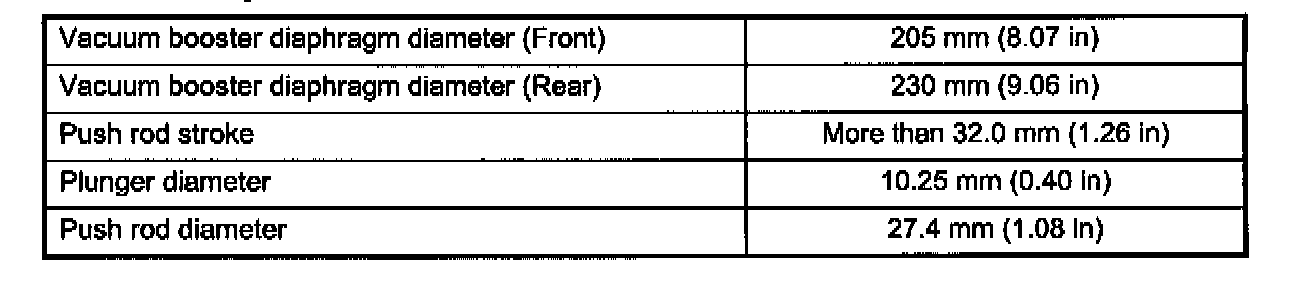

VACUUM BOOSTER





GENERAL SPECIFICATIONS

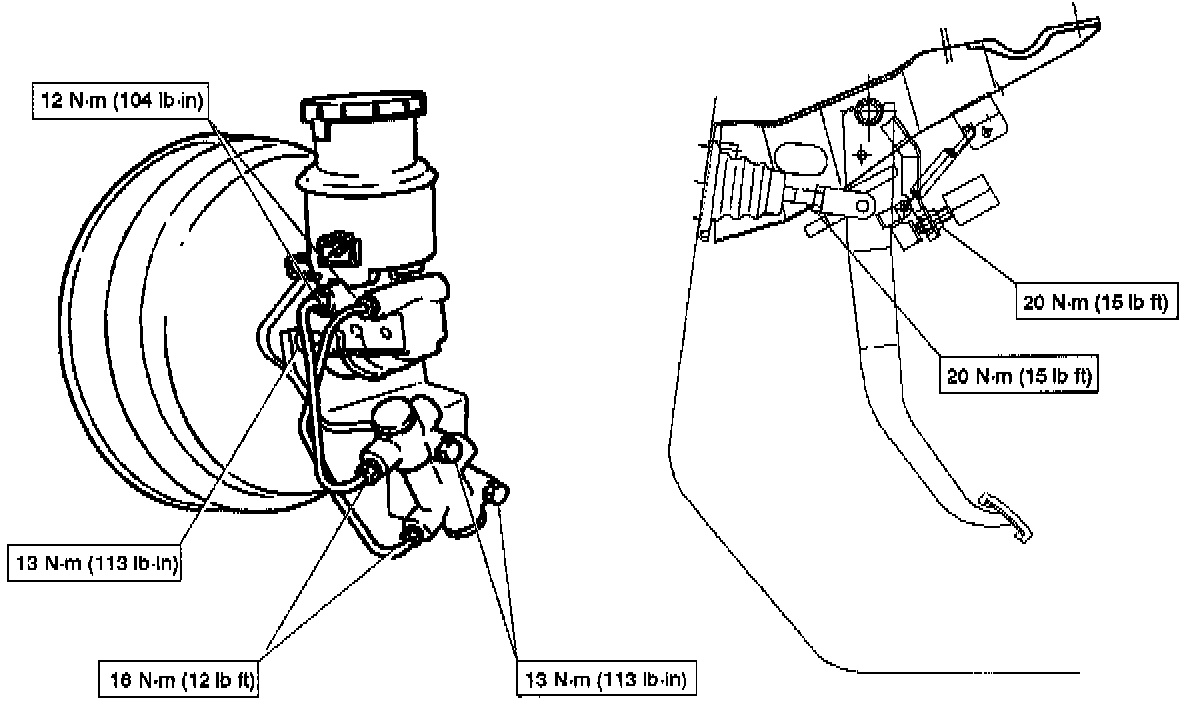

TORQUE SPECIFICATIONS

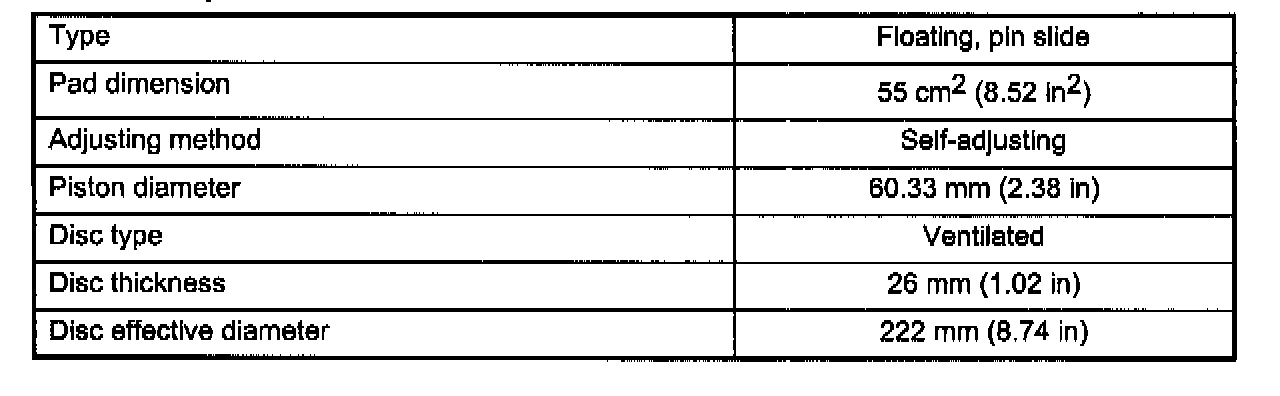

FRONT DISC BRAKE CALIPER





GENERAL SPECIFICATIONS

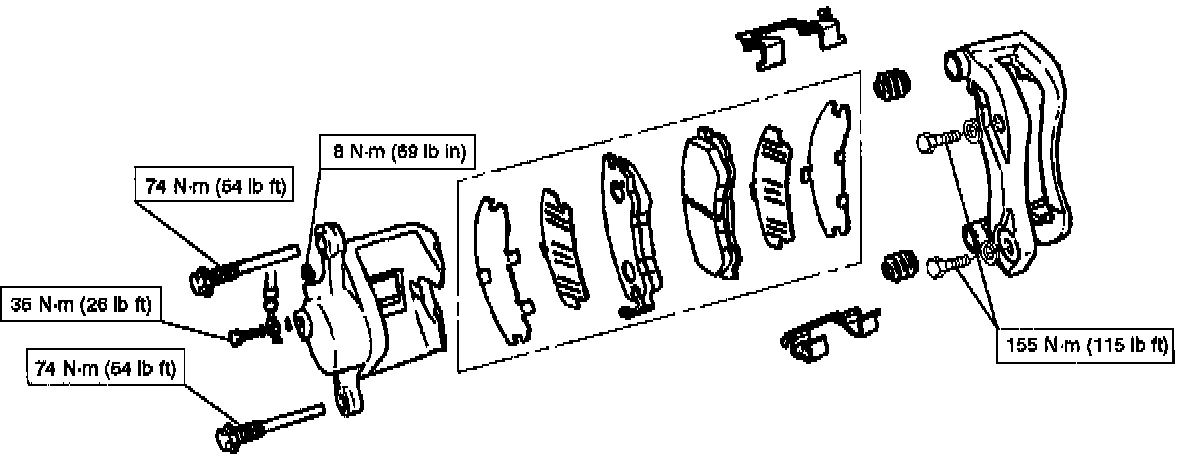

TORQUE SPECIFICATIONS

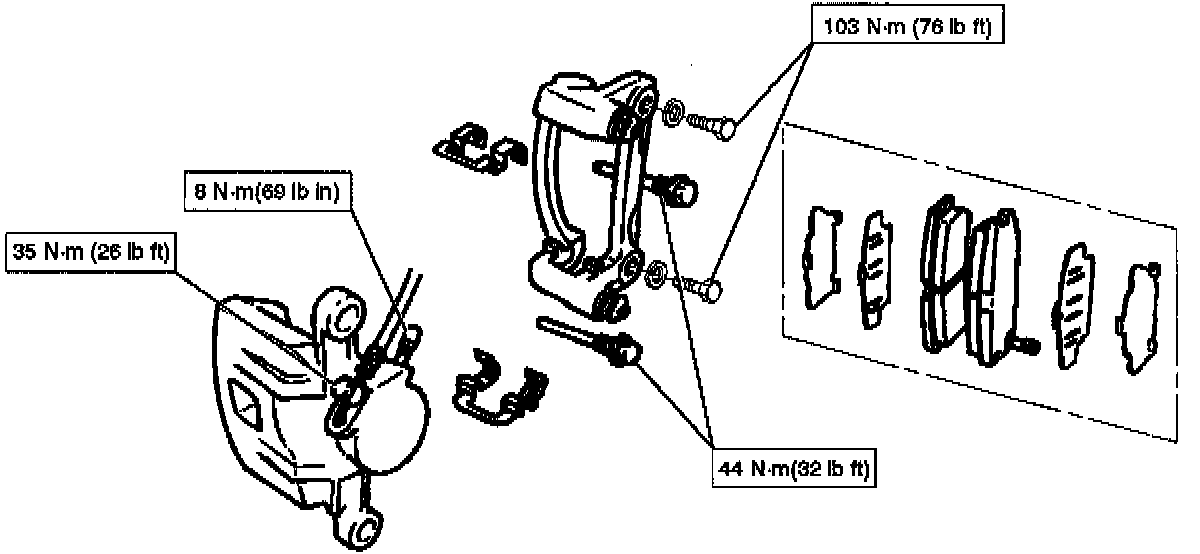

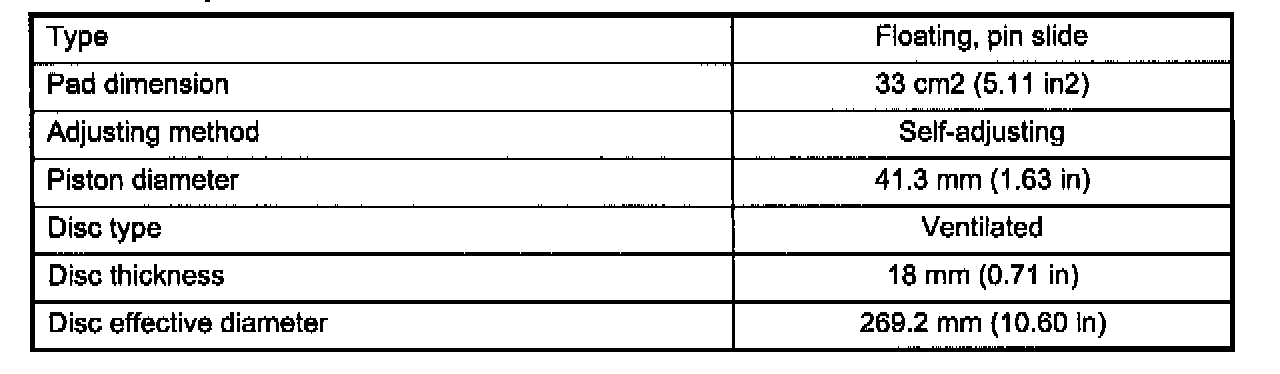

REAR DISC BRAKE CALIPER





GENERAL SPECIFICATIONS





TORQUE SPECIFICATIONS
