Control Panel Assembly and/or Control Cables

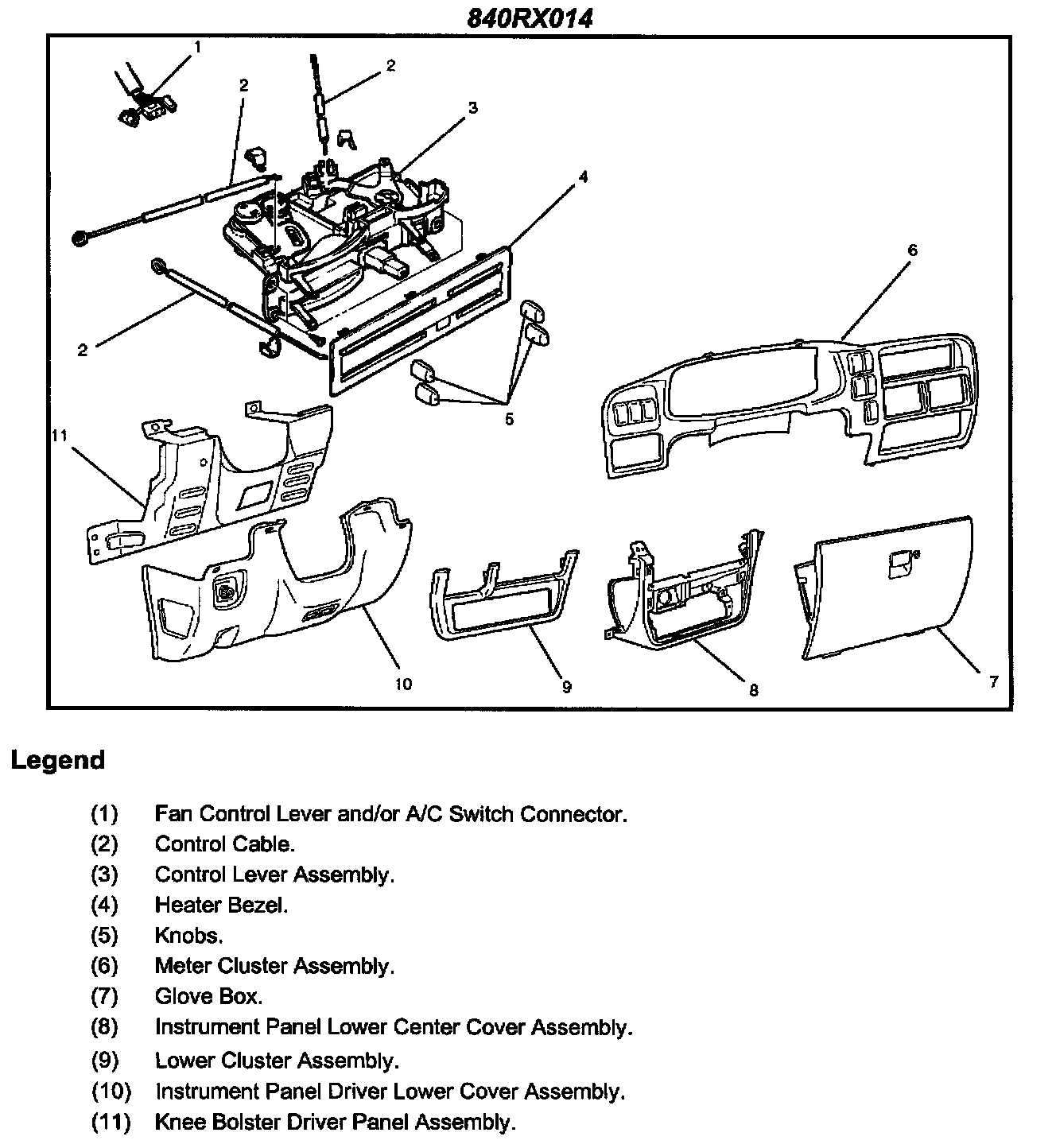

Control Lever Assembly, Control Cable And Associated Parts:

CONTROL LEVEL ASSEMBLY AND/OR CONTROL CABLE


Removal
1. Disconnect the battery ground cable.
2. Remove instrument panel driver lower cover assembly.
3. Remove knee Bolster Driver Panel Assembly.
4. Remove lower cluster assembly.
5. Remove meter cluster assembly.
6. Remove Instrument panel lower center cover assembly.
7. Remove glove box.
8. Remove the control lever attaching screws.





9. Pull the control lever assembly out and disconnect the fan switch and air conditioning switch connectors.

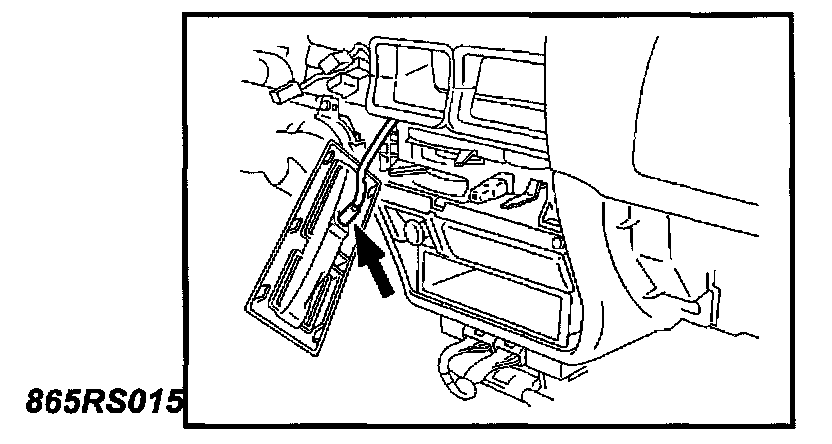

10. Remove the illumination bulb holder.

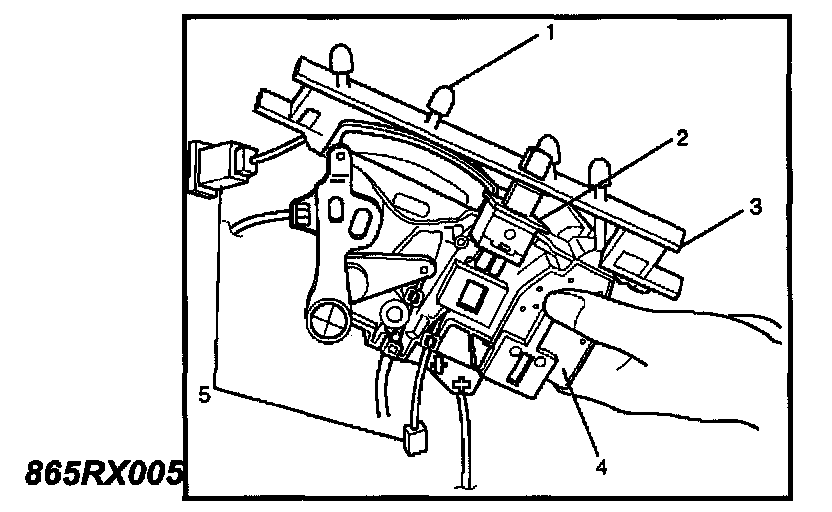

11. Remove fan control lever and/or air conditioning (A/C) switch connector.
- Pull the A/C switch out and disconnect the connectors.
12. Remove control lever assembly.





13. Disconnect control cables at each unit side.

Installation
To install, follow the removal steps in the reverse order, noting the following points:

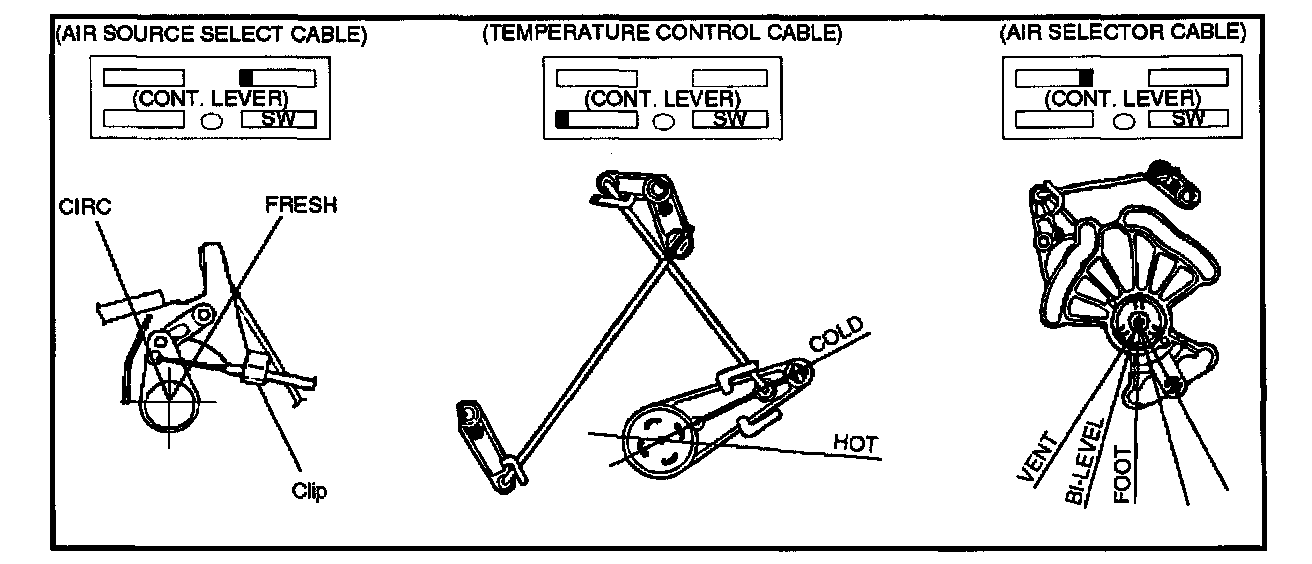

1. Adjust the control cable.
1. Slide the control lever to the left ("CIRC") position.
2. Connect the control cable at the "CIRC" position of the link unit of the blower assembly and secure it with the clip.
- Temperature control cable
1. Slide the control lever to the left("MAX COLD") position.
2. Connect the control cable at the "COLD" position of the temperature control link of the heater unit and secure it with the clip.
- Air select control cable
1. Slide the control knob to the right("DEFROST") position of the mode control link of the heater unit and secure it with the clip.
2. Connect the control cable at the "DEFROST" position of mode link of the heater unit and secure it with the clip.
2. Check the control cable operation.
