Fuse Block: Locations

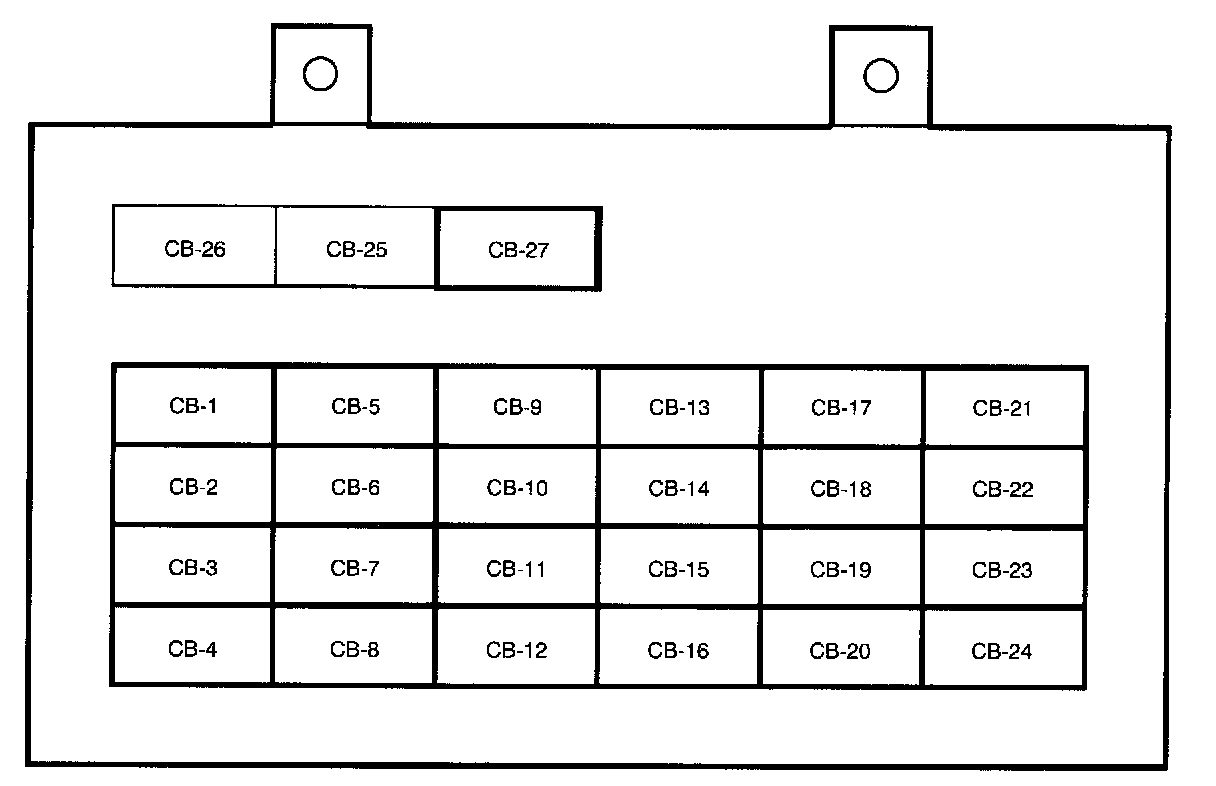

Dash Fuse Box:

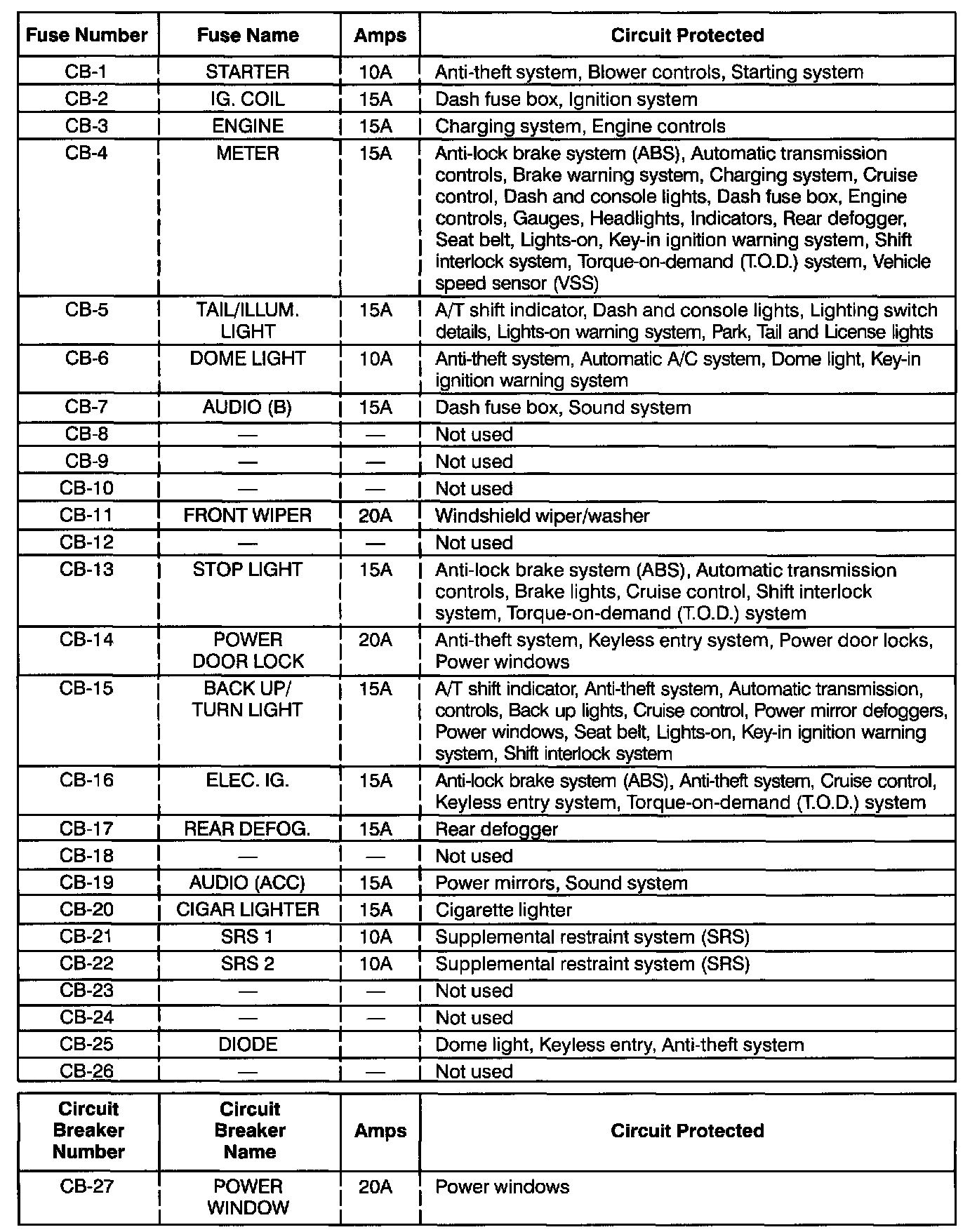

Dash Fuse Box - Fuse I/D Chart:

Fuse/Relay Box:

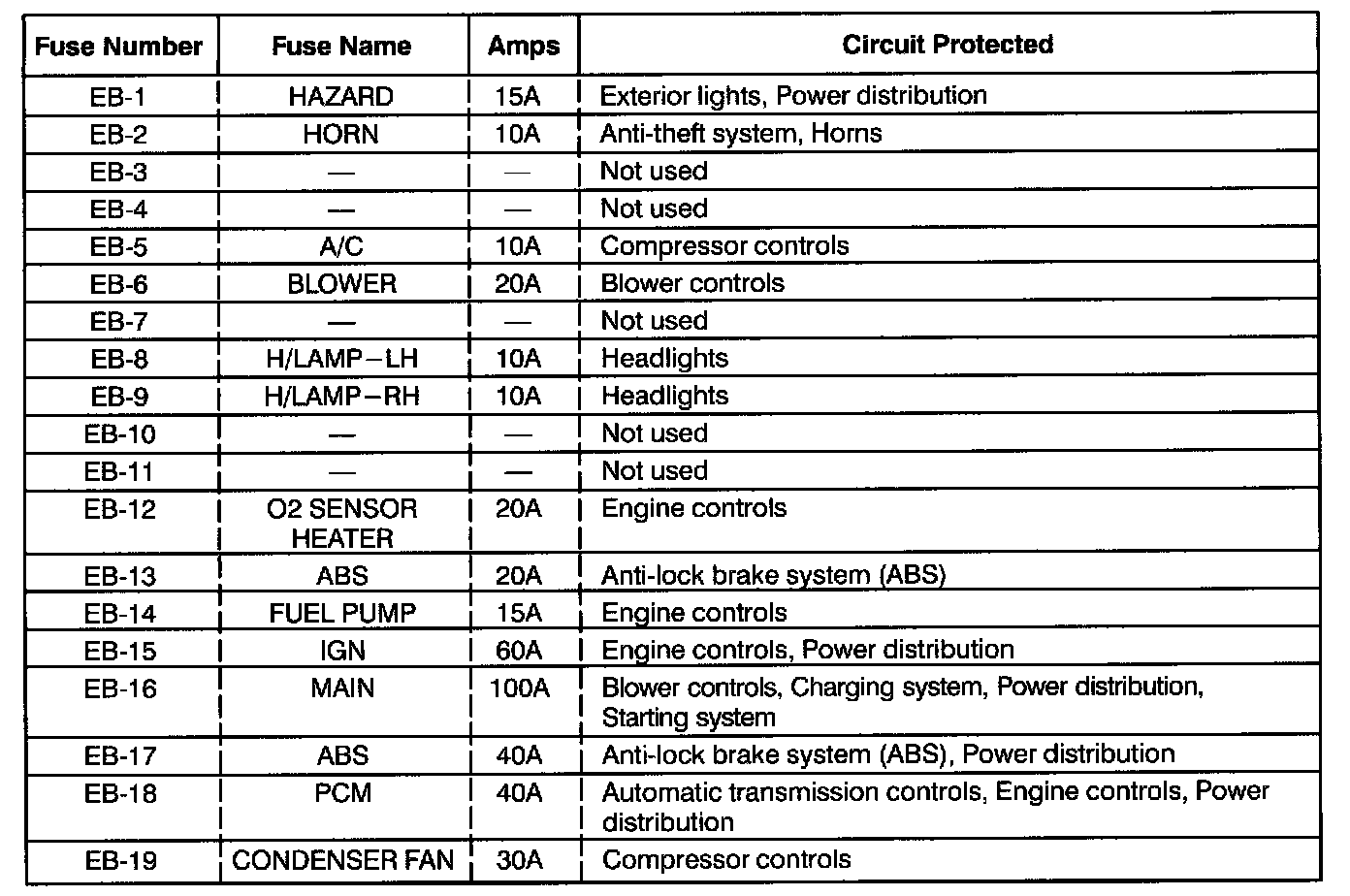

Fuse/Relay Box - I/D Chart:

18 - Right Front of Engine Compartment:

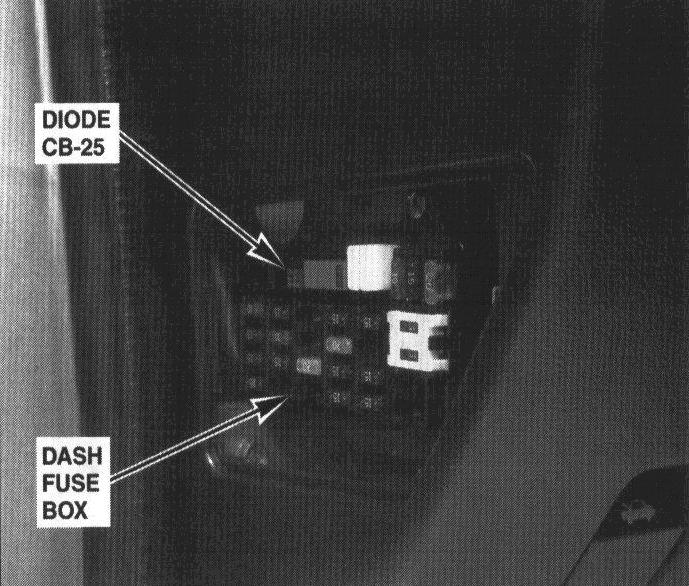

36 - Left Side of I/P:

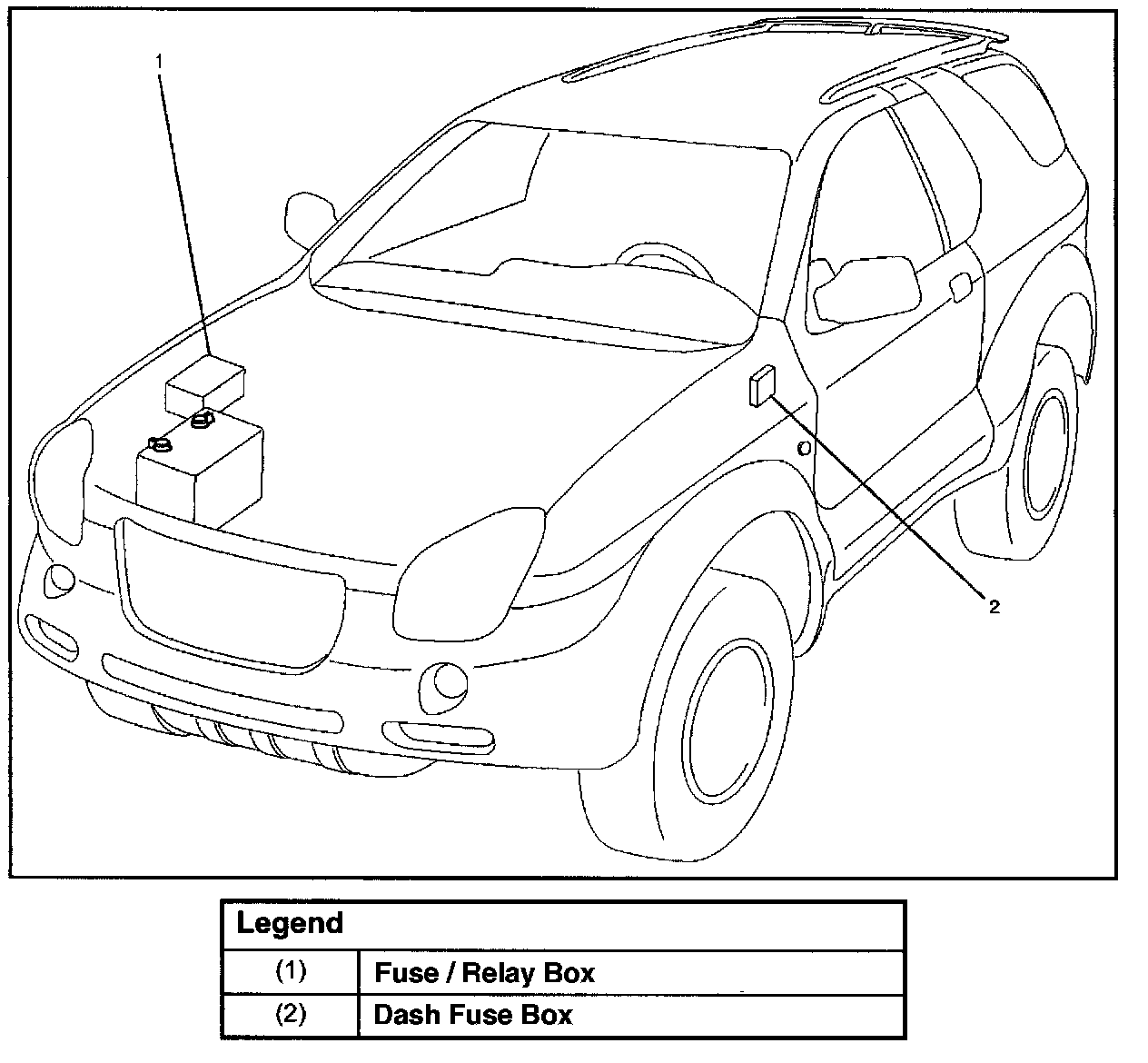

Fuse/Relay Box - Dash Fuse Box Location:
