Home >> Isuzu Truck >> 2001 >> Rodeo LS 4WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Transfer Gear

Steering Transfer Gear

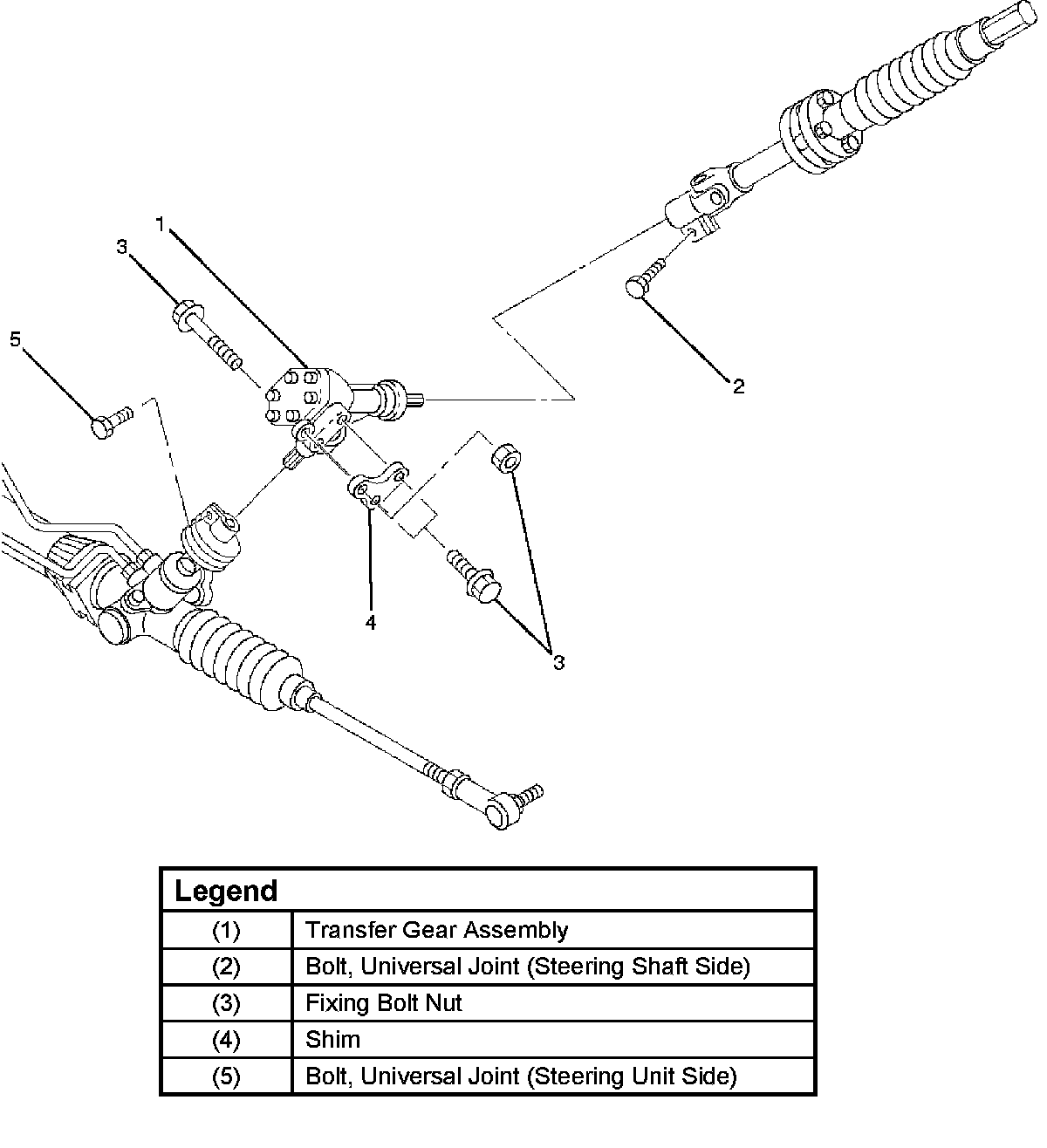

Transfer Gear Assembly and Associated Parts
