Front Differential

DIFFERENTIAL (FRONT) - RODEO

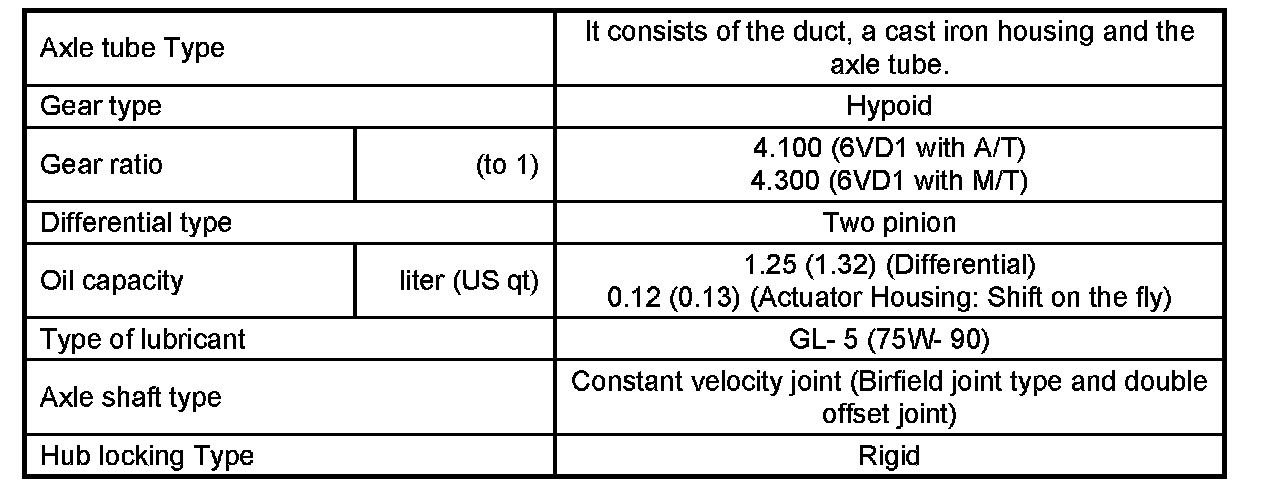

General Specifications

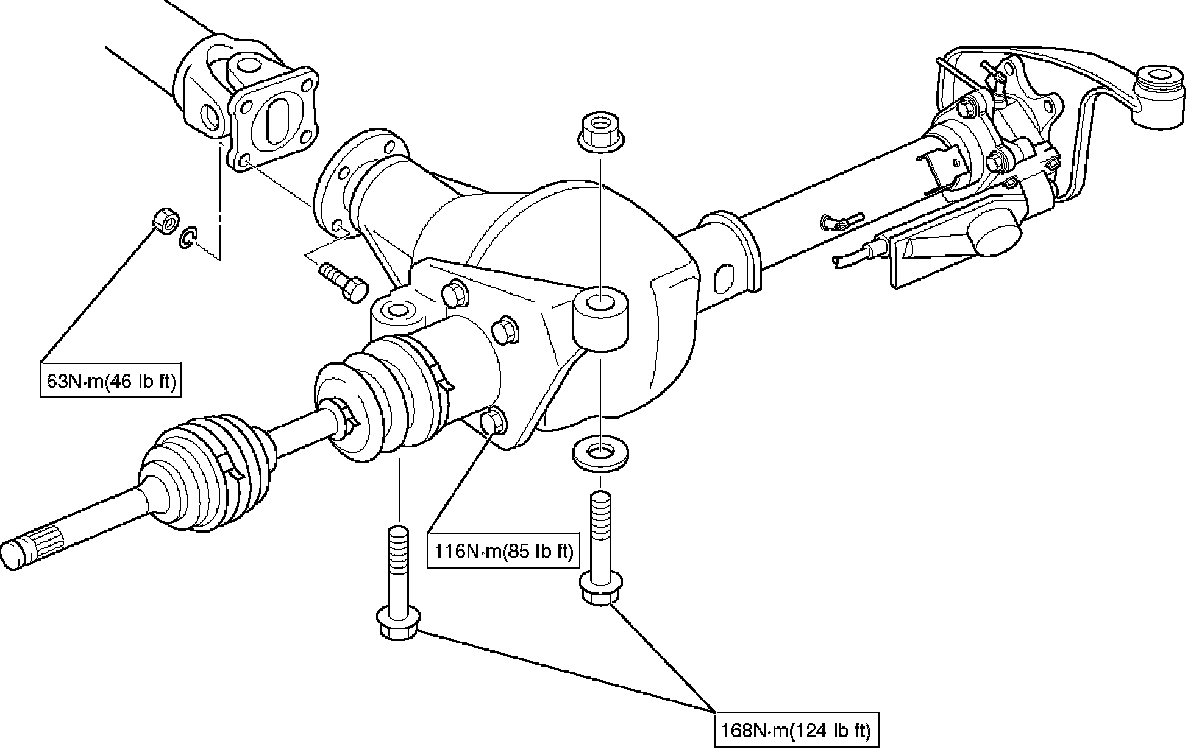

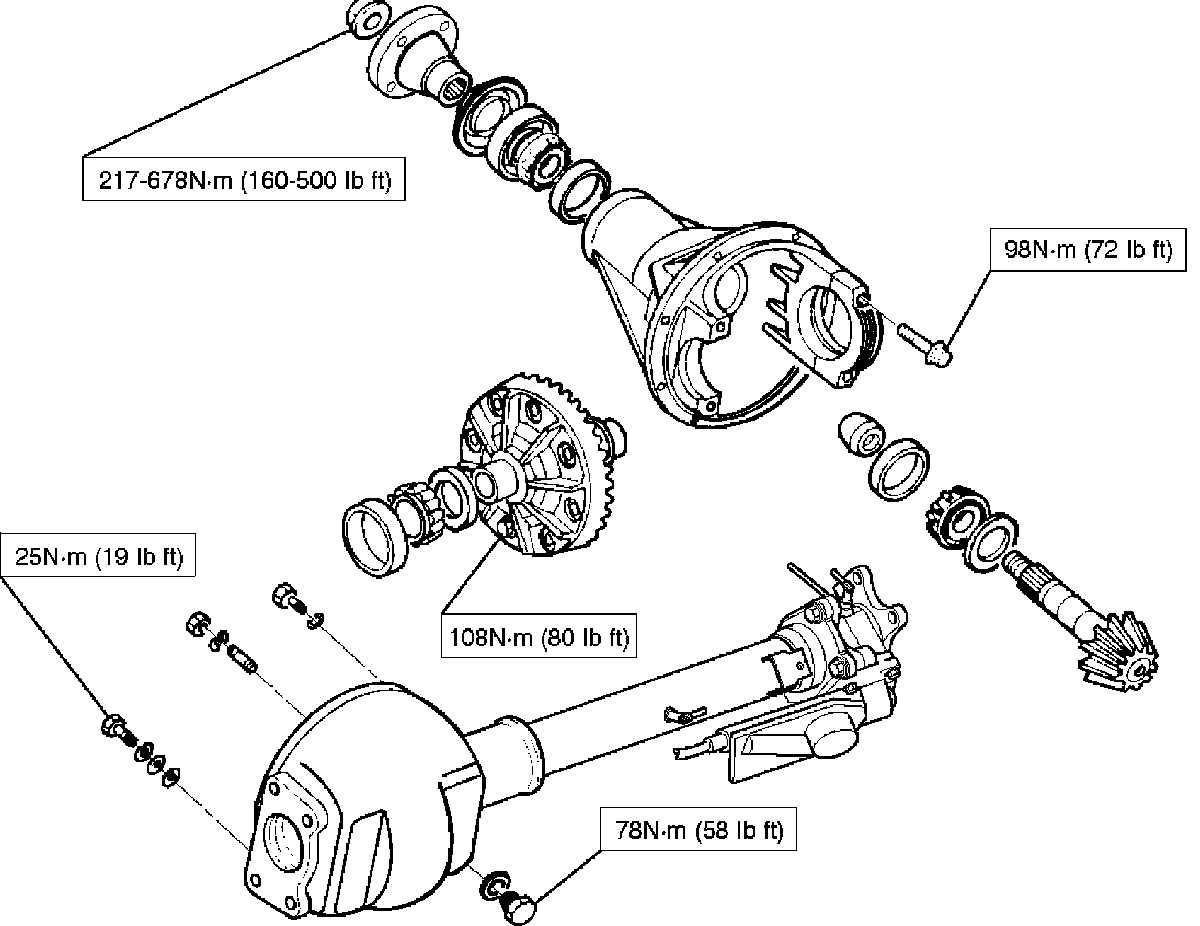

Torque Specifications


DIFFERENTIAL (FRONT) - RODEO SPORT

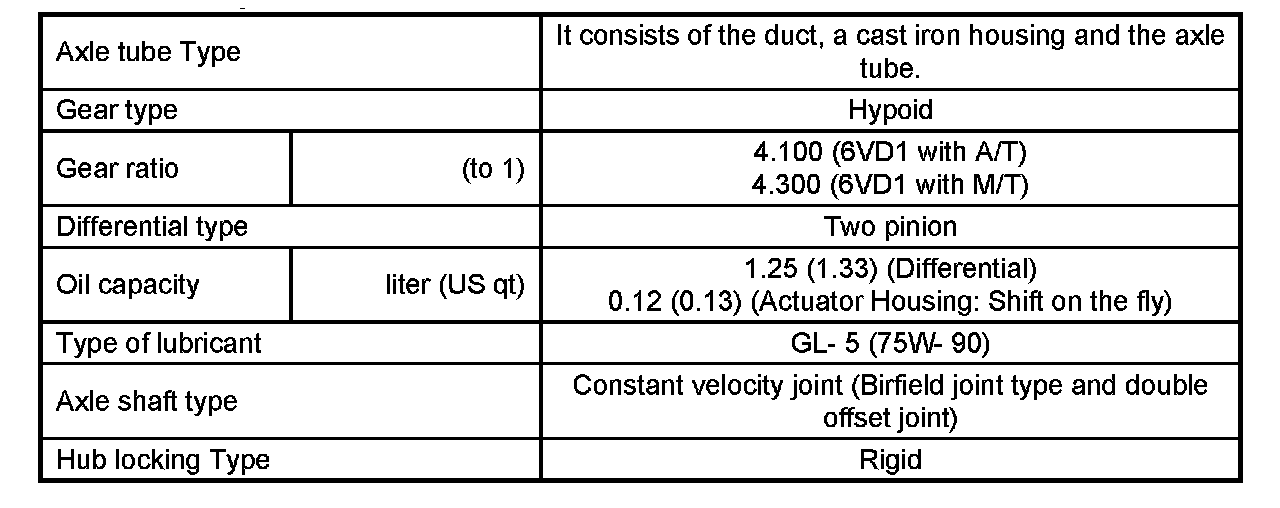

General Specifications
