Home >> Isuzu Truck >> 2001 >> Rodeo S 2WD L4-2.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly >> Balance Unit Assembly and Associated Parts

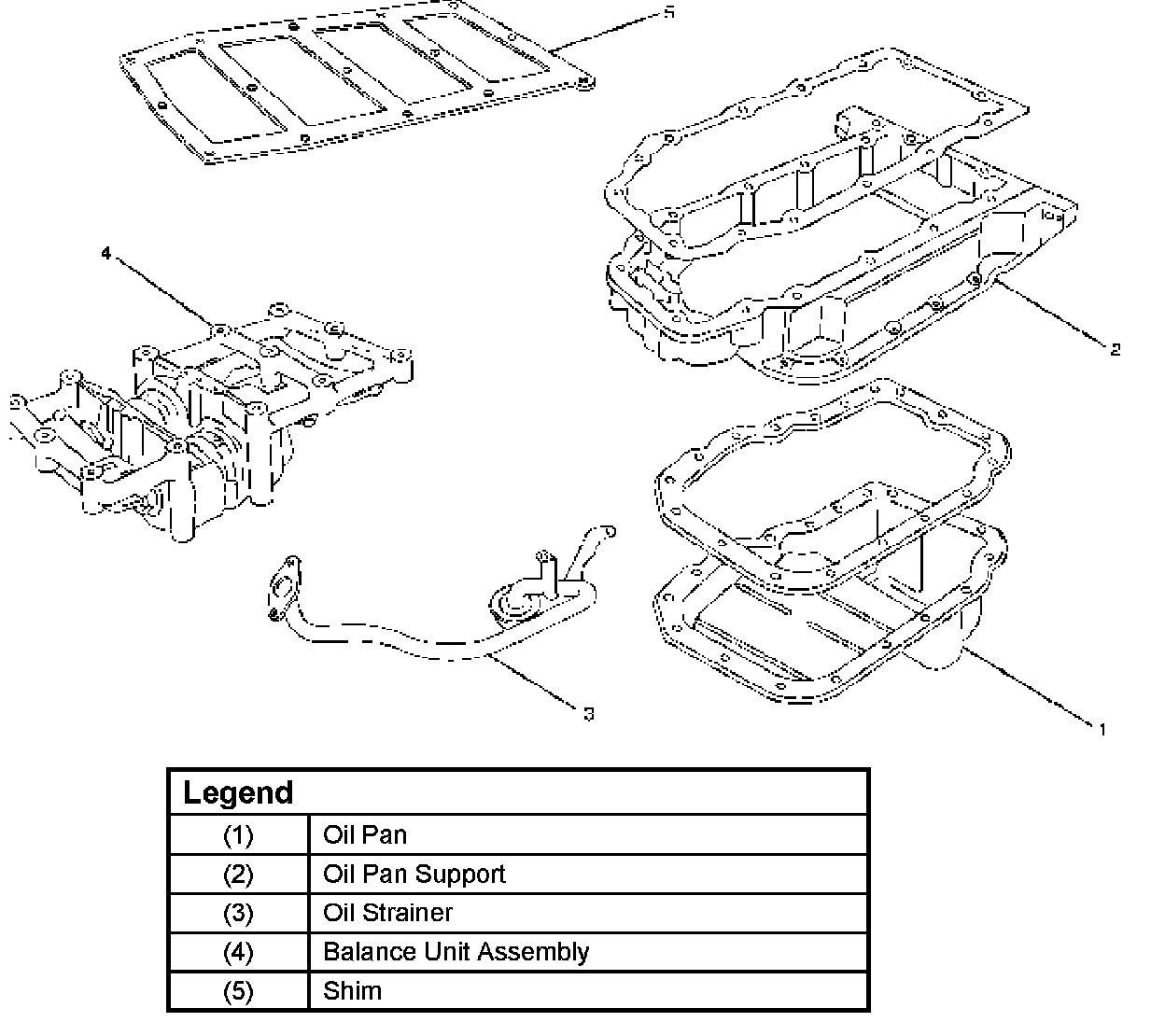

Balance Unit Assembly and Associated Parts
