Self Check

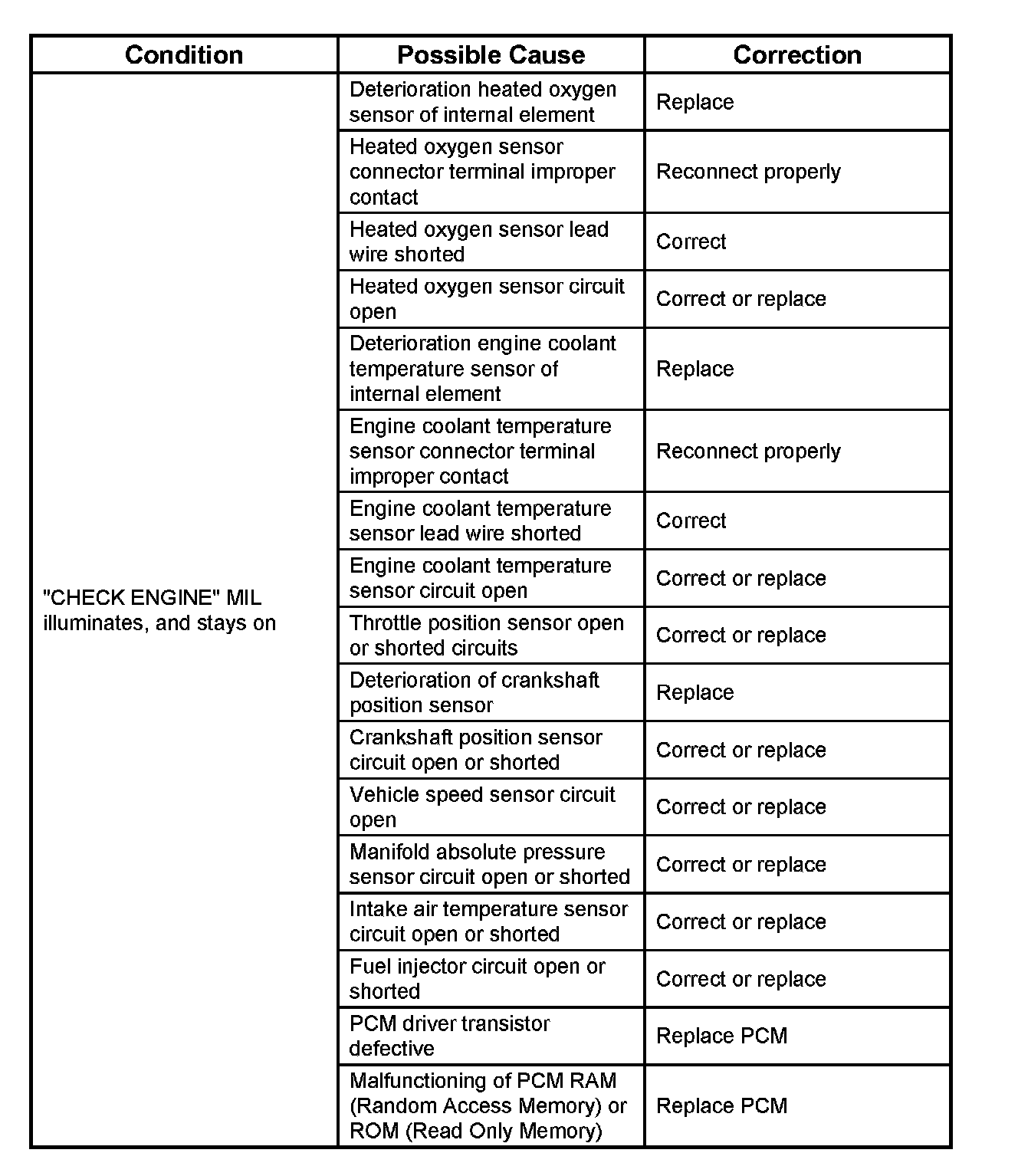

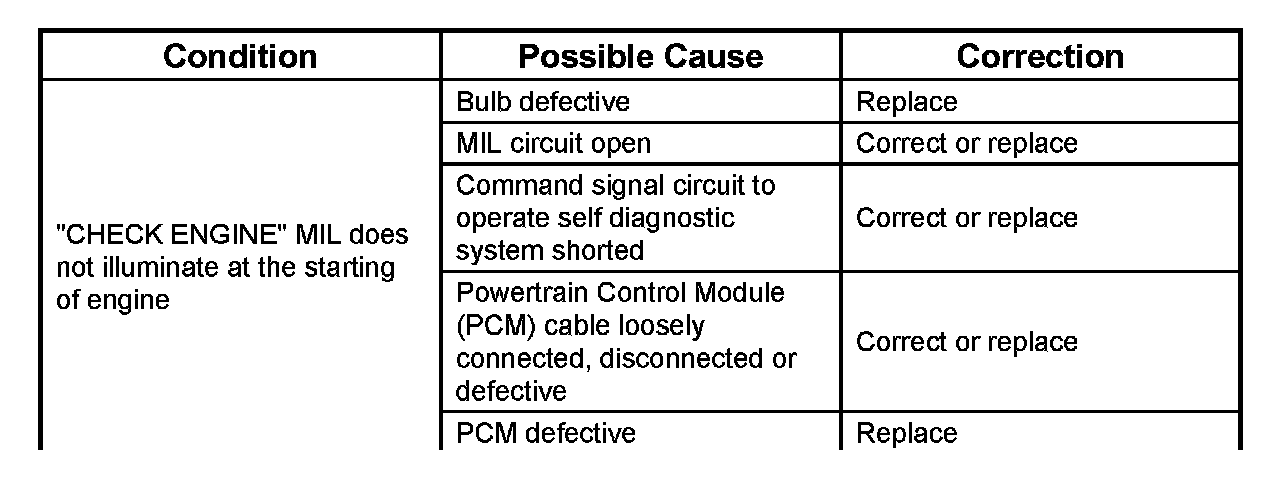

Malfunction Indicator Lamp
1 of 2
2 of 2
The instrument panel "CHECK ENGINE"
Malfunction Indicator Lamp
(MIL)
illuminates by self diagnostic system when the system checks the starting of engine, or senses malfunctions.
