Recall- OBD II Calibration Update
BULLETIN NUMBER:SB01-03-S001
ISSUE DATE:
SEPTEMBER 2001
GROUP:
EMISSIONS
CARB OBD II EVAPORATIVE LEAK DIAGNOSIS REGULATION
EMISSIONS CAMPAIGN 01E-001
CAMPAIGN IDENTIFICATION NUMBER
Number O1E-001 has been assigned to this campaign. This number will appear on all communications and documentation of any nature dealing with the campaign.
AFFECTED VEHICLES
2001 Rodeo (UE) and Rodeo Sport (UA) vehicles with 2.2L HEC Engine
SERVICE INFORMATION
CONDITION
It has been discovered that affected vehicles equipped with the HEC engine do not meet the CARB and EPA OBD II requirements for evaporative leak diagnosis. It is possible the OBD II evaporative leak detection monitor may "time-out" prior to completing the diagnostic. If the diagnostic "times-out" prematurely, the OBD II evaporative leak detection monitor may terminate prior to completing the intended diagnostic, and therefore may not detect a leak in the evaporative system.
CORRECTION
To correct this condition, Isuzu dealers will install a new OBD II calibration.
NOTE:
California dealers must issue a "Proof of Correction Certificate" to Isuzu owners. Advise the Isuzu owner to keep the certificate as the California Deparment of Motor Vehicles may ask for proof of this campaign completion before renewal of the registration.
IMPORTANT:
Dealers must fill out every field on the Proof of Correction Certificate.
DEALER RESPONSIBILITY
Isuzu dealers must service all affected vehicles at no charge to the owner, regardless of mileage, age of vehicle, or ownership.
Whenever a vehicle subject to this campaign is in a dealer's vehicle inventory, or arrives at a dealership for service, the dealer must take the necessary steps to ensure that this campaign correction has been made before selling or releasing the vehicle.
OWNER NOTIFICATION

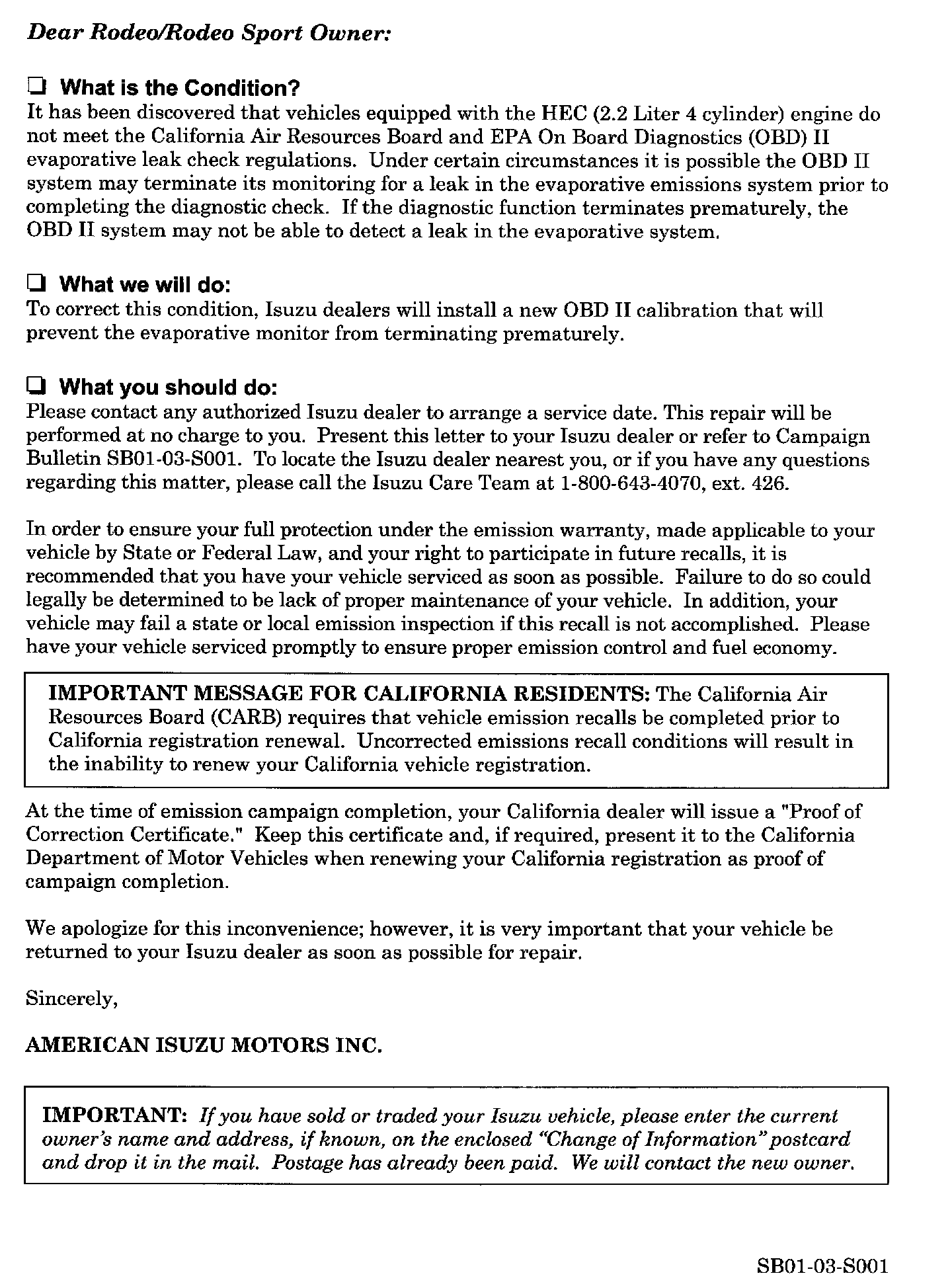

All unsold new vehicles in dealer's possession and subject to this campaign must be held and repaired per the service procedure in this Campaign Bulletin customers take possession of their vehicles. American Isuzu Motors Inc. (AIMI) will send a notification letter to owners of affected vehicles already retailed (See Enclosed Copy). Dealers should follow up with vehicle owners by sending a Campaign Reminder Notice (AIMI SVCF-1052) to all vehicle owners listed in the AIMI Campaign Report AWS 123-1A. Dealers may obtain these postcards from their Regional Office.
1. Park and secure the vehicle.
2. Connect the PowerLink DLC cable adapter to the vehicle DLC Port.
NOTE:
The installation instructions are the same as the previous versions.
3. Click on the ITCS icon on the desktop.
4. Insert the PowerLink Version 4 CD or later for the appropriate model. NOTE: ITCS CD # 22 also contains the new calibrations for Tech2 update.

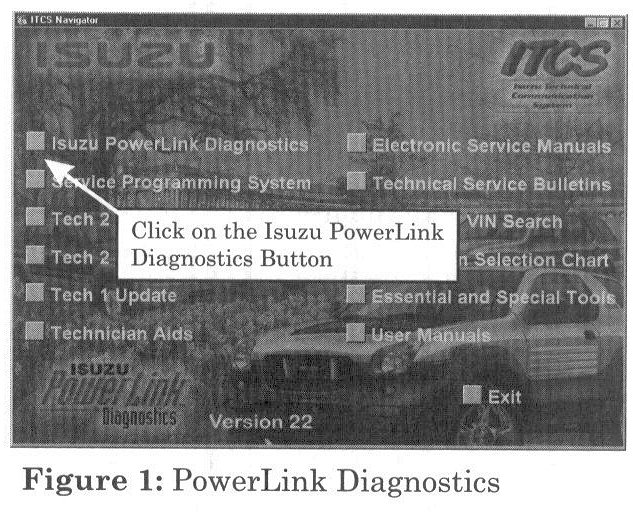

5. Click on the Isuzu PowerLink Diagnostics button. (Figure 1)

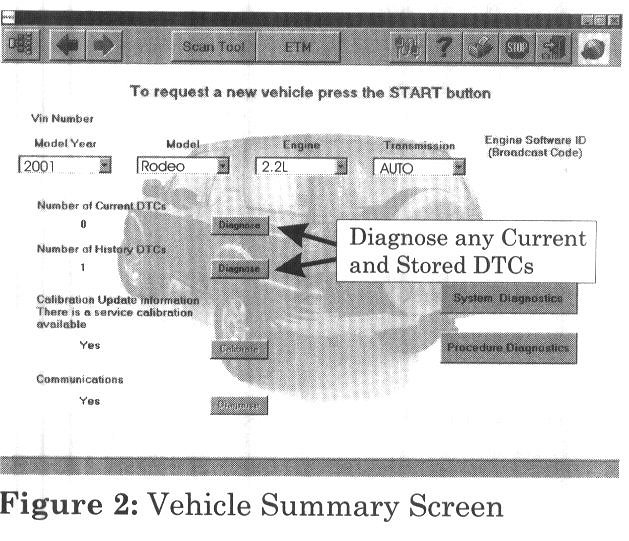

6. Diagnose any Current DTCs and History DTCs (if any). (Figure 2)
IMPORTANT:
Any Current DTCs and History DTCs must first be diagnosed prior to PCM reprogramming.

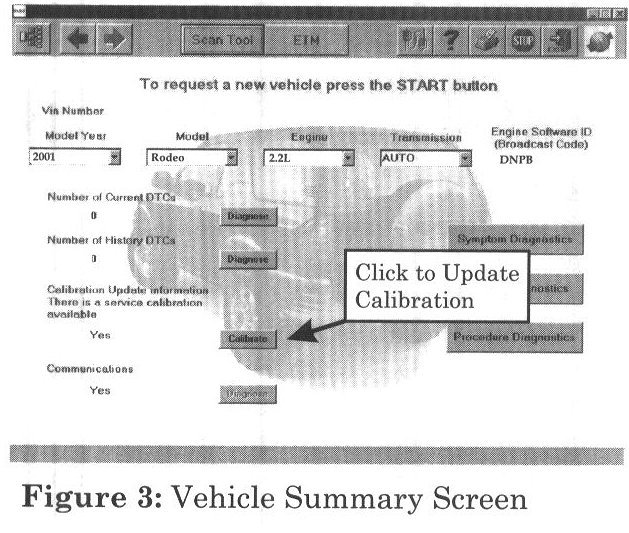

7. If no codes are stored and an updated calibration is available, then click the Calibrate button. (Figure 3)
NOTE:
The Calibrate button is only accessible if all codes have been resolved.

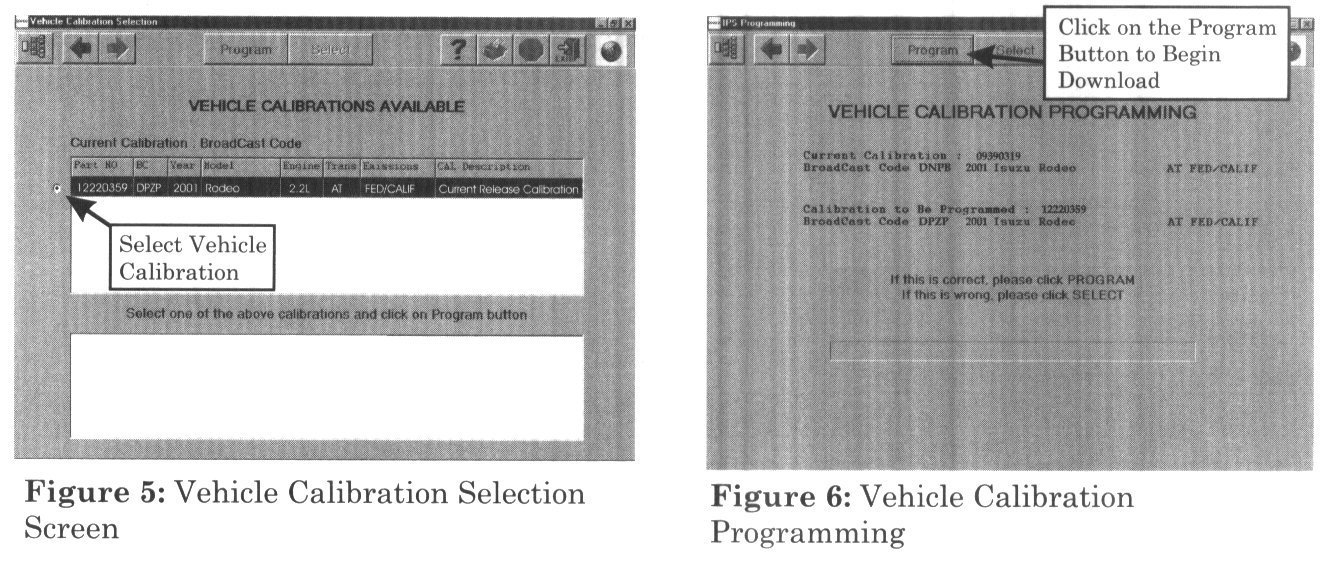

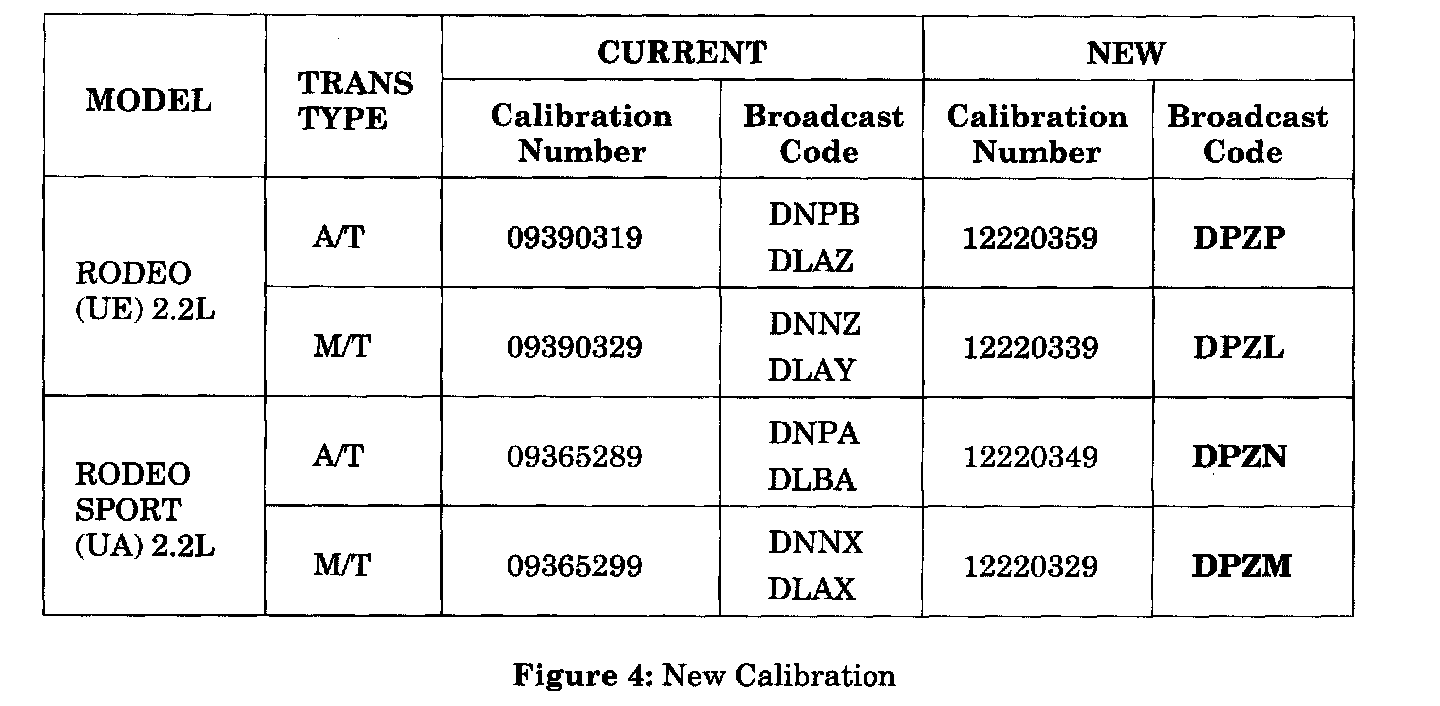

8. Click on your calibration selection. (Figures 4 and 5)
9. Click the Program button to begin the reprogramming event. (Figure 6)
IMPORTANT:
Verify that the calibration selected is correct before selecting the Program button.
10. The status bar indicates that the PCM is uploading the new calibration. (Figure 7)
11. Vehicle calibration is complete. (Figure 8)
APPLYING THE CAMPAIGN LABEL
1. Using a ball-point pen, fill out the following information on a campaign label (Part Number: 2-90028-700-0)
^ This emissions campaign number:
01E-001
^ Dealer Code
^ Repair Date: (Month/Day/Year)
2. Affix the campaign label adjacent to the manufacturer's identification label located on the driver's side B-pillar.
CALIFORNIA VEHICLES ONLY
The California Air Resources Board (CARB) requires vehicle emission recalls to be completed prior to California registration renewal. Uncorrected emission recalls will result in the inability for affected owners to renew their California vehicle registration.

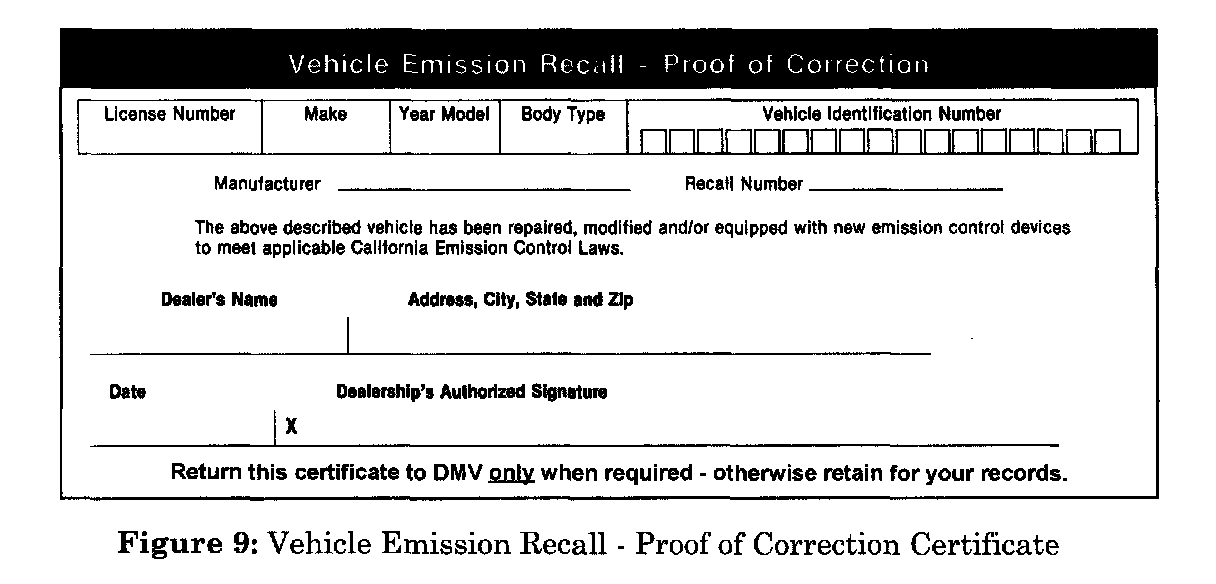

At the time of emission campaign completion, all California dealers must issue a completed "Proof of Correction Certificate" (Figure 9) to the vehicle owner. A completed certificate is required by the vehicle owner to the Department of Motor Vehicles at the time of California vehicle registration renewal.
WARRANTY CLAIM INFORMATION

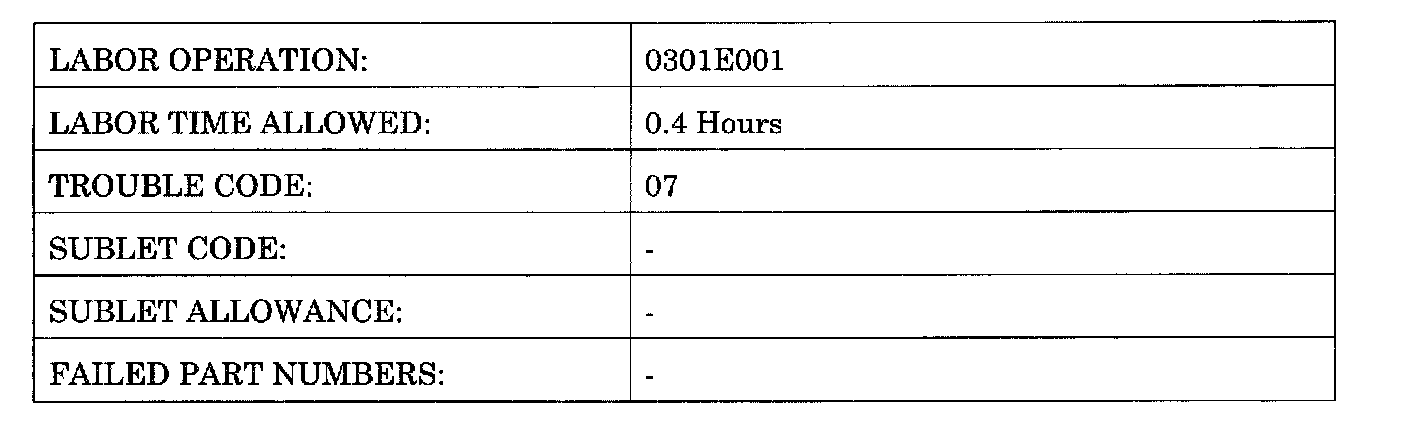

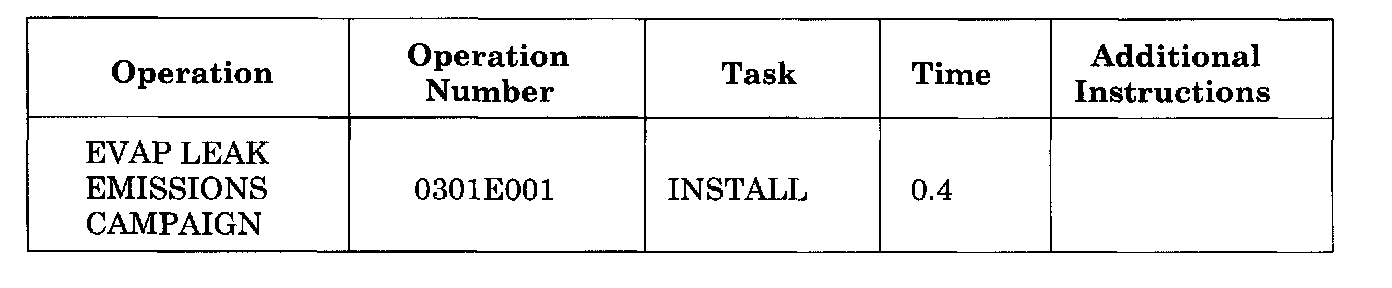

Use the new labor operation shown.
Use Trouble Code 07 (Campaign Bulletin) for this Labor Operation. Labor Time includes administrative time allowance.
WARRANTY CLAIM SUBMISSION INFORMATION
For your convenience please use the information when submitting your warranty claim shown.
