Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu Truck
>>
2001
>>
Rodeo S 2WD L4-2.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Road Test
>>
Shift Speed Chart
Shift Speed Chart
SHIFT SPEED CHART (HEC)

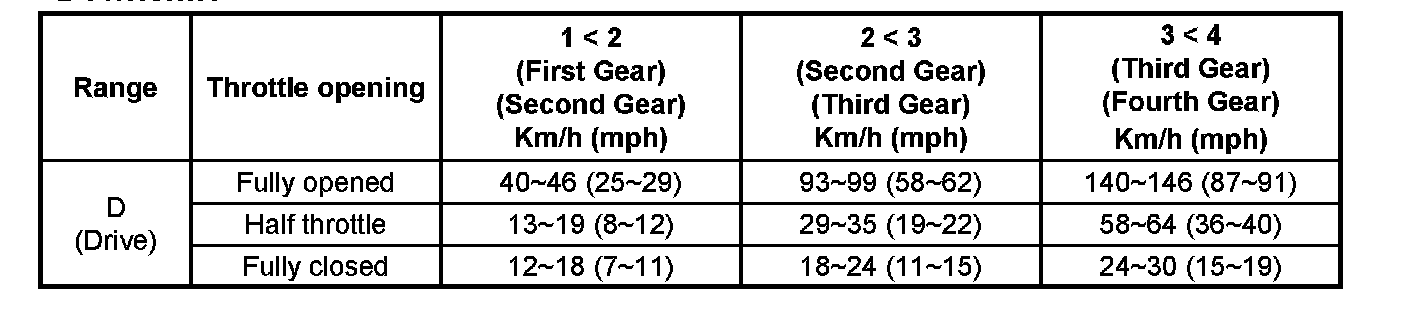

"NORMAL MODE"
Upshift
Downshift

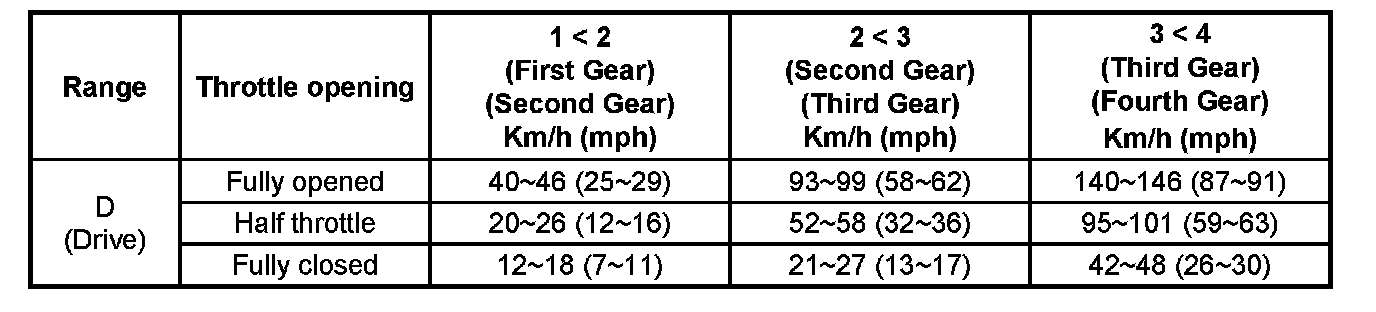

"POWER MODE"
Upshift
Downshift

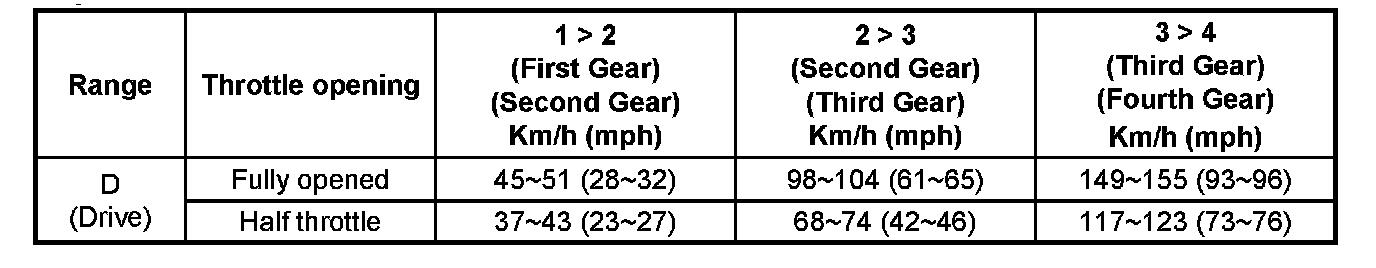

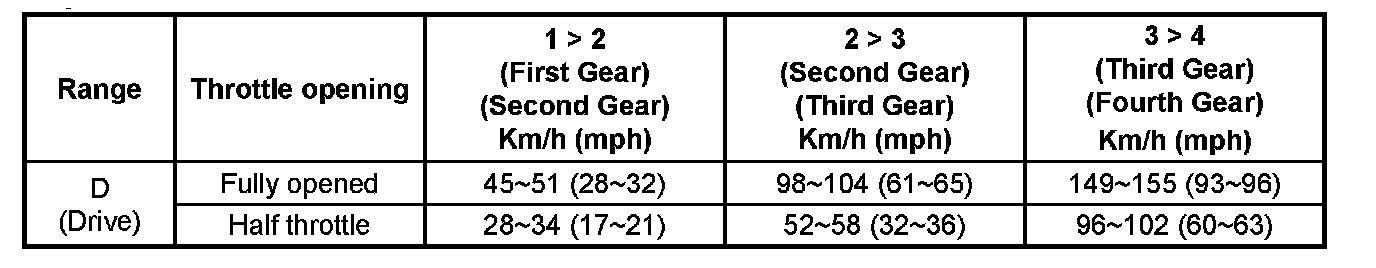

"WINTER MODE"
