Engine Components

Engine Controls Index (Part 1) 2.2l:



Engine Controls Index (Part 2) 2.2L:

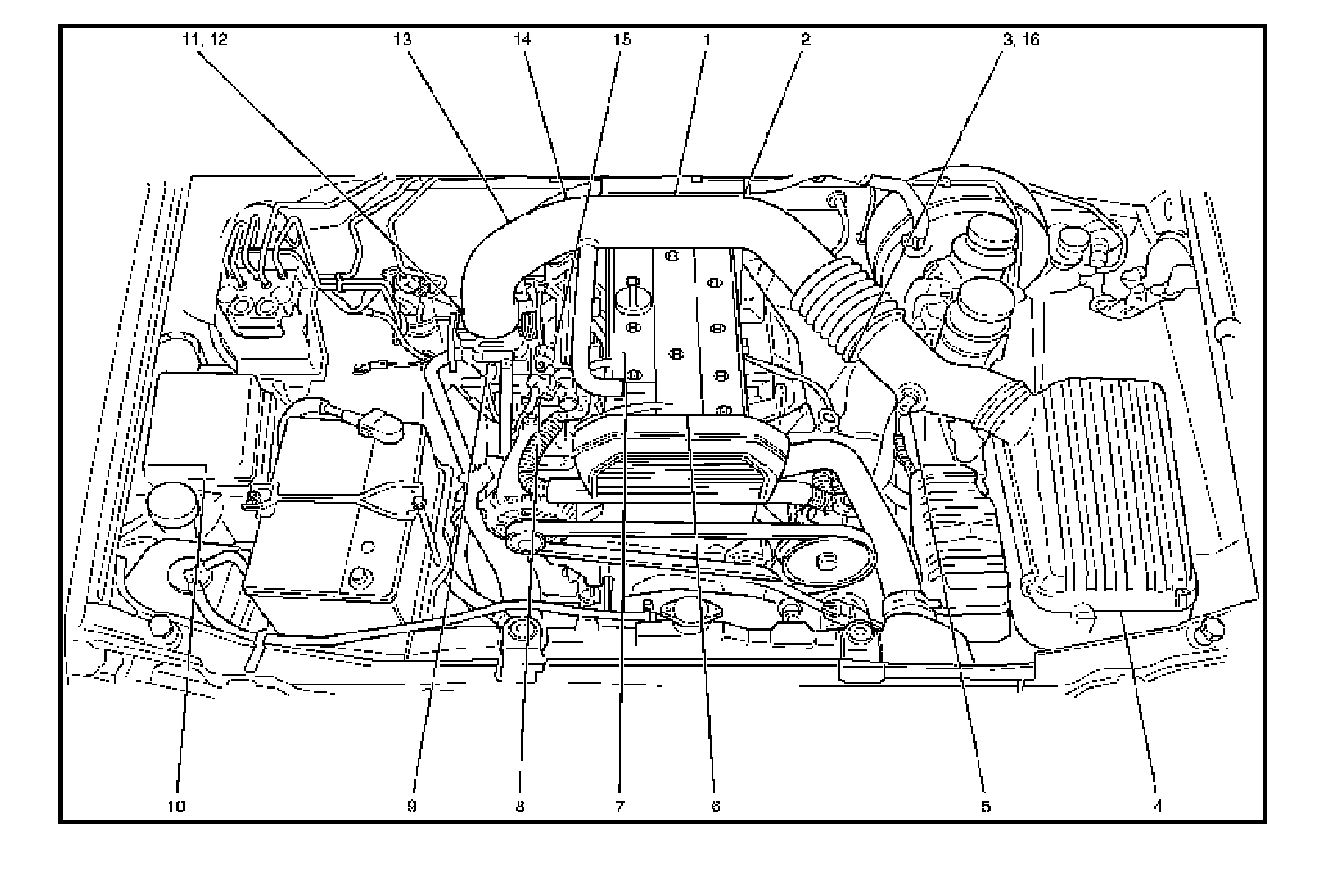

Component Locator:

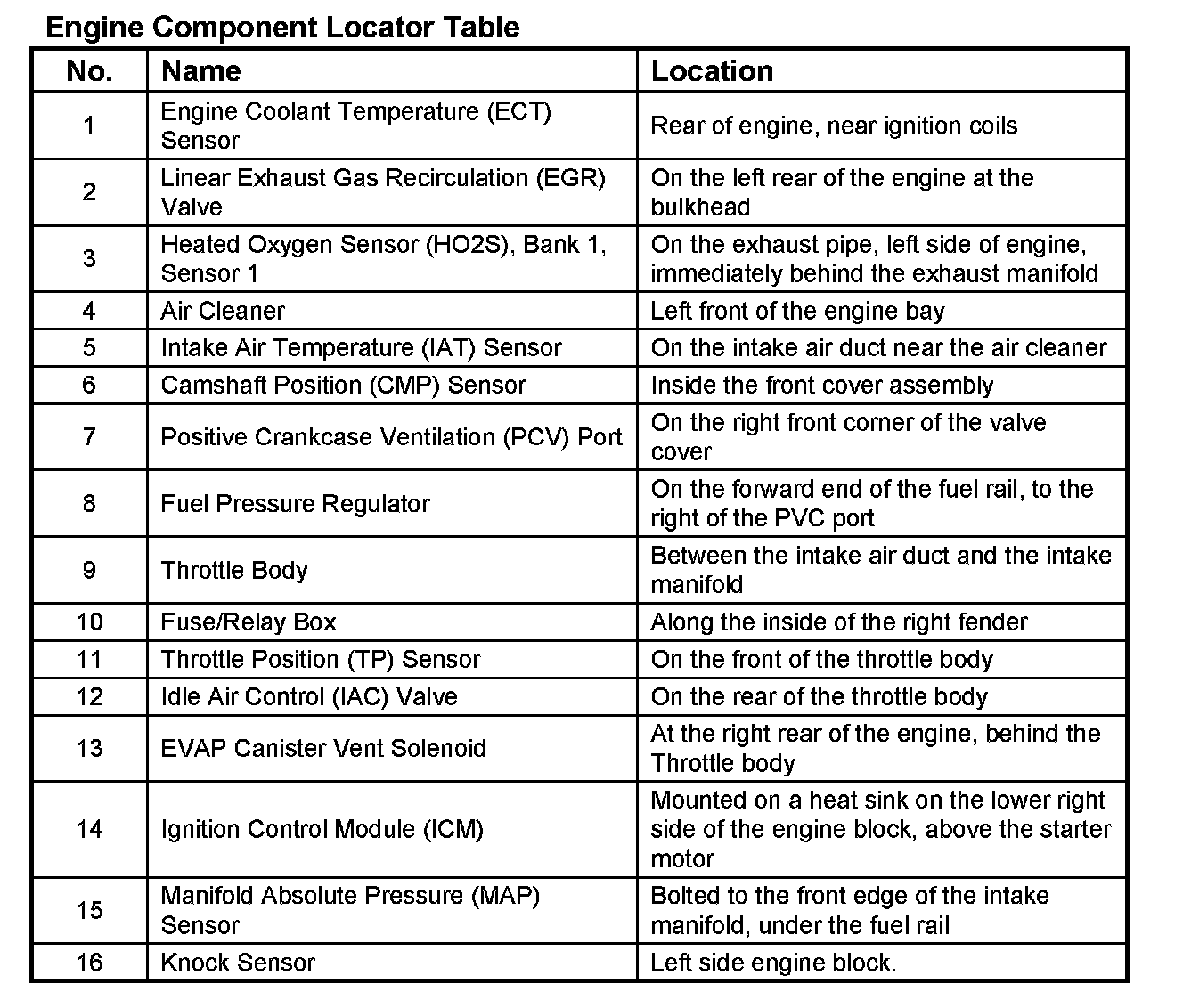

Engine Component Locator Table:
