Home >> Isuzu Truck >> 2001 >> VehiCROSS 4WD V6-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

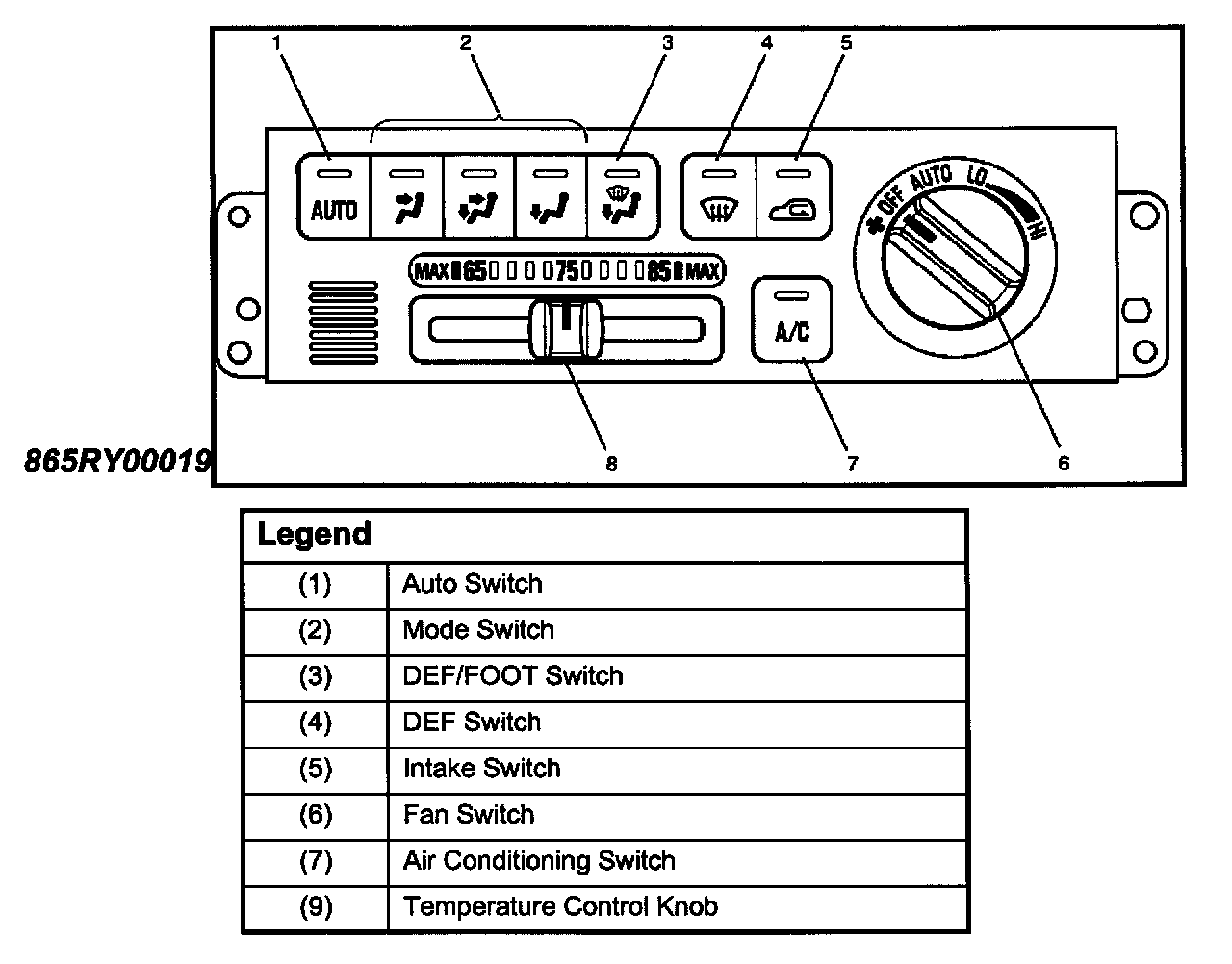

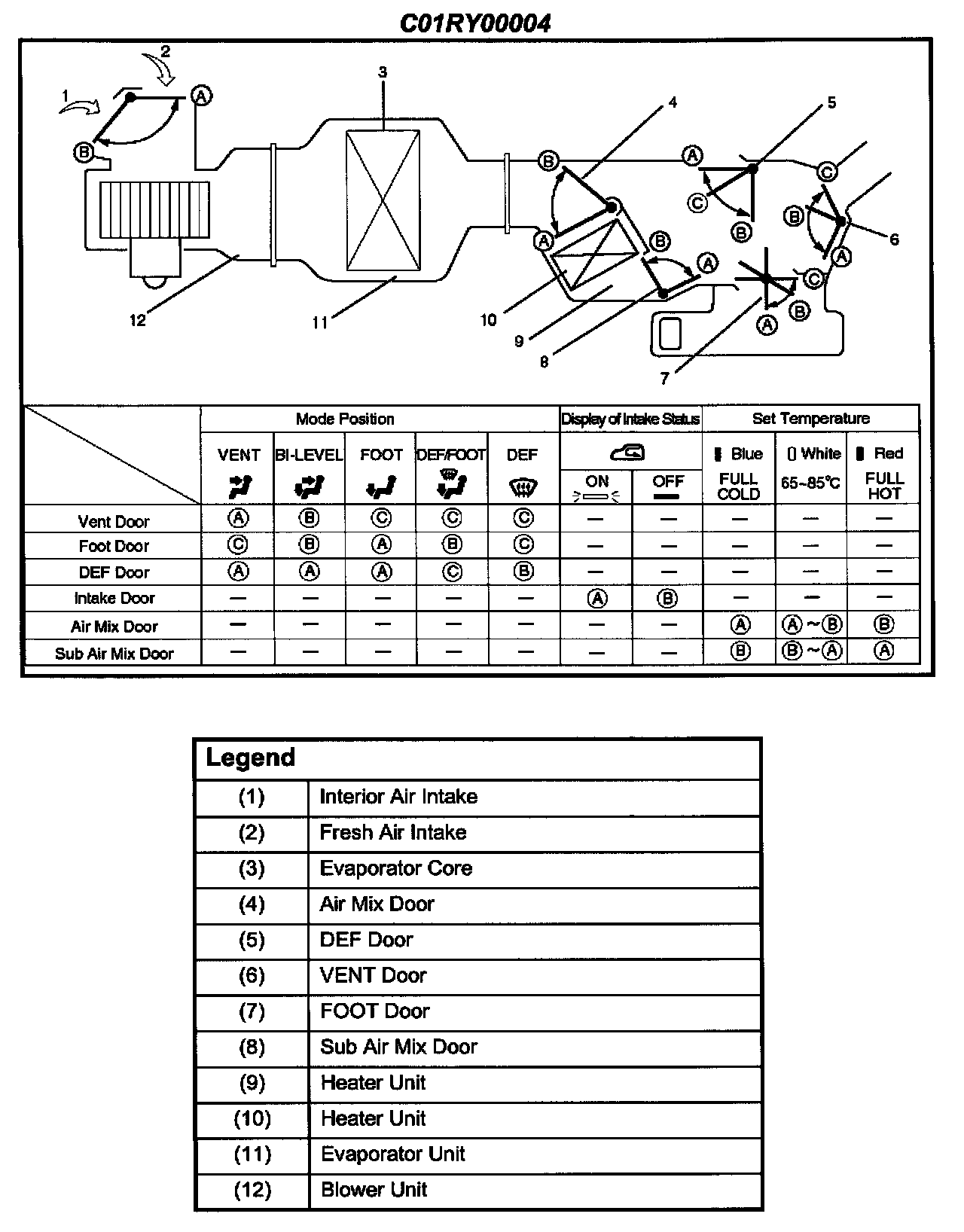

Control Lever Assembly, Control Cable And Associated Parts:



Part 1 Of 2:



Part 2 Of 2:
