Power Seat Motor Position Sensor
Power Seat Motor Position Sensor

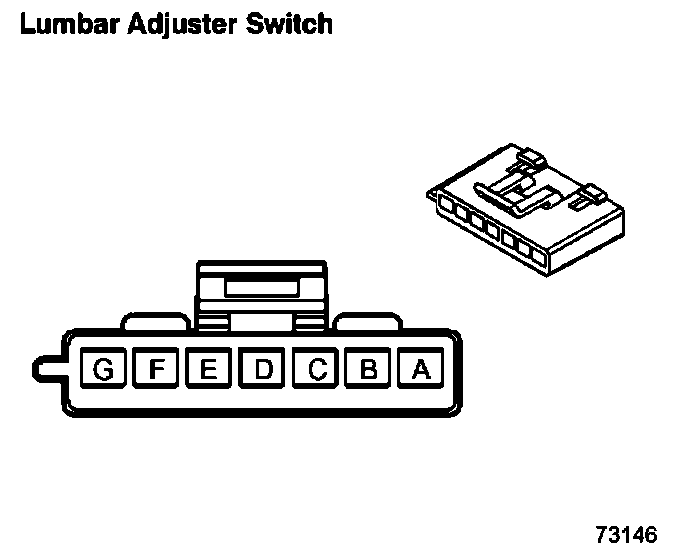

Lumbar Adjuster Switch:

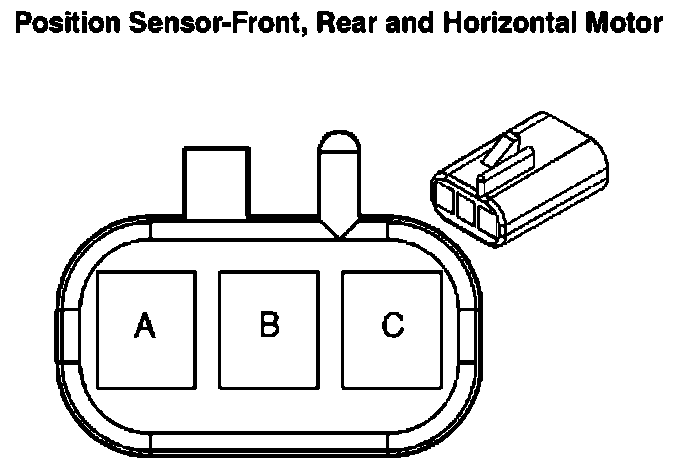

Position Sensor-Front, Rear And Horizontal Motor:

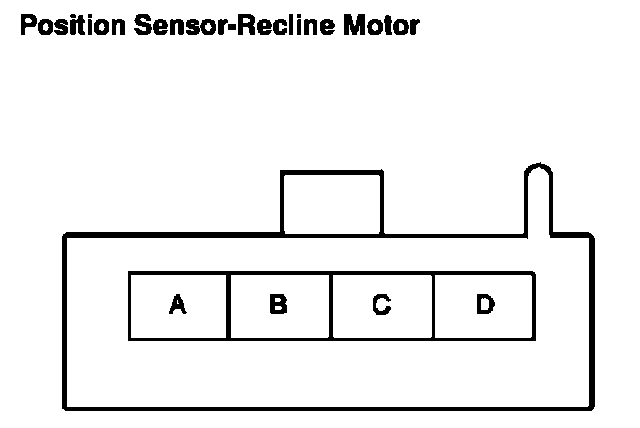

Position Sensor-Recline Motor:
