Home >> Isuzu Truck >> 2003 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations >> HVAC Module-Auxiliary (Long Wheelbase, Body Type Vin 6)

HVAC Module-Auxiliary (Long Wheelbase, Body Type Vin 6)

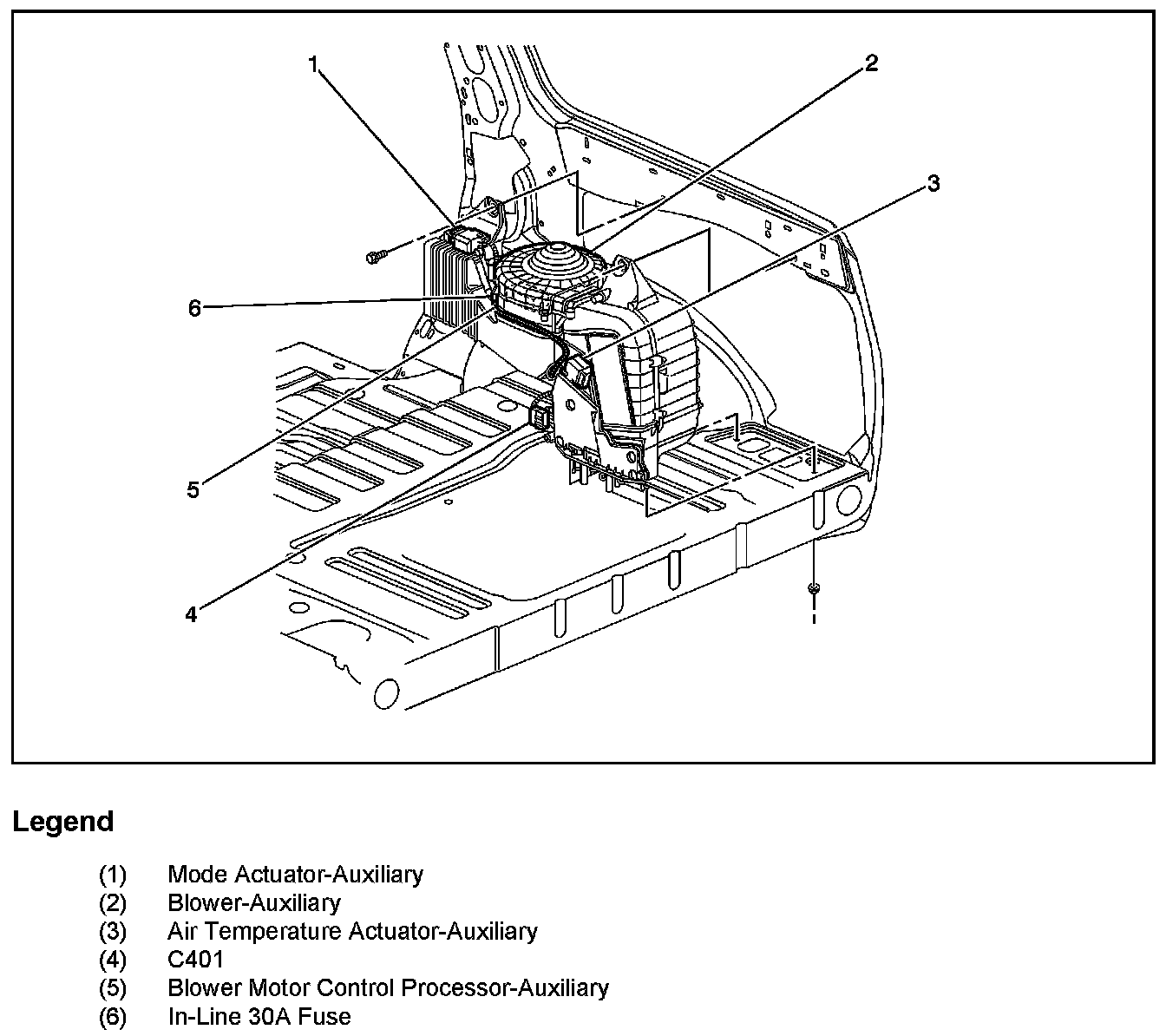

HVAC Module-Auxiliary (Long Wheelbase, Body Type VIN 6):
