Air Temperature Sensor ( Ambient / Intake ): Locations

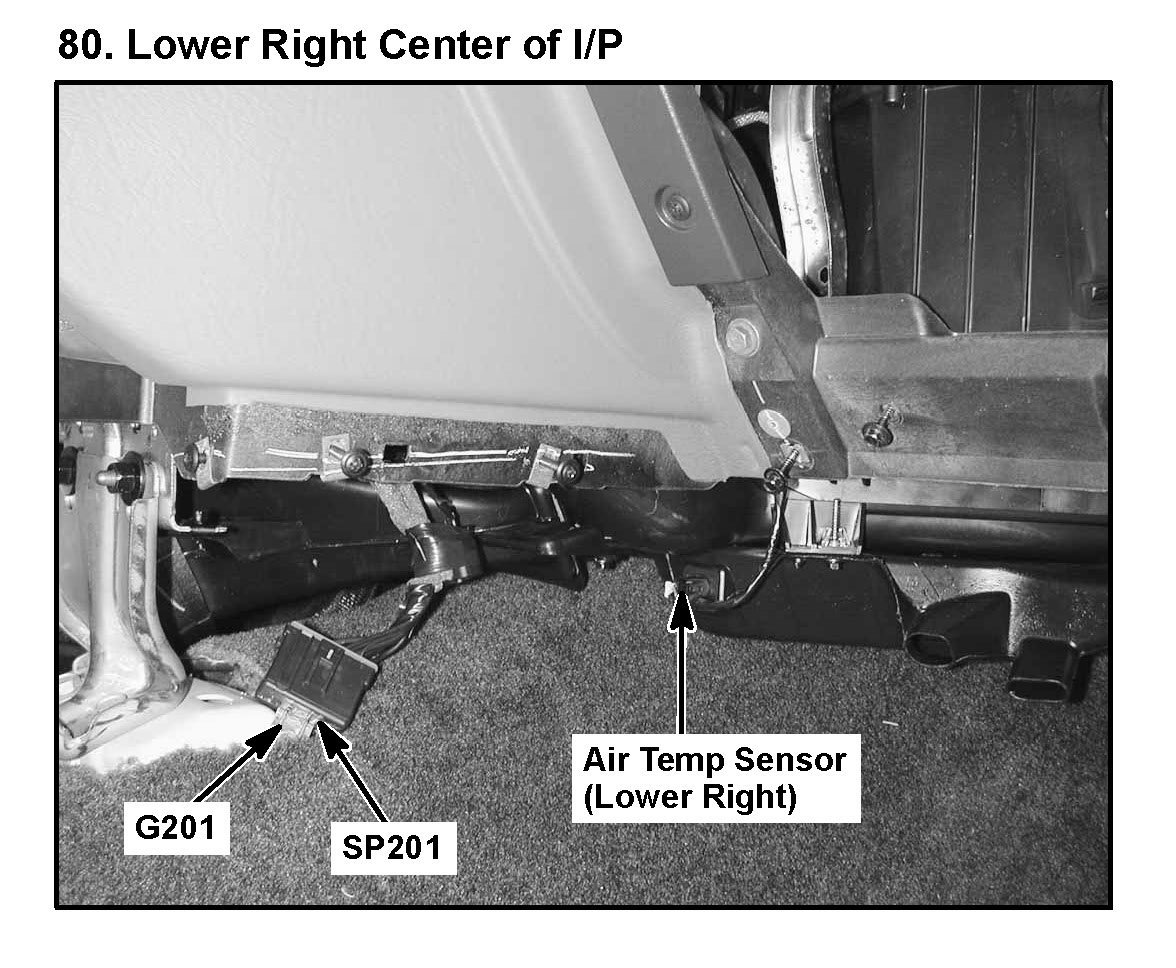

80. Lower Right Center Of I/P:

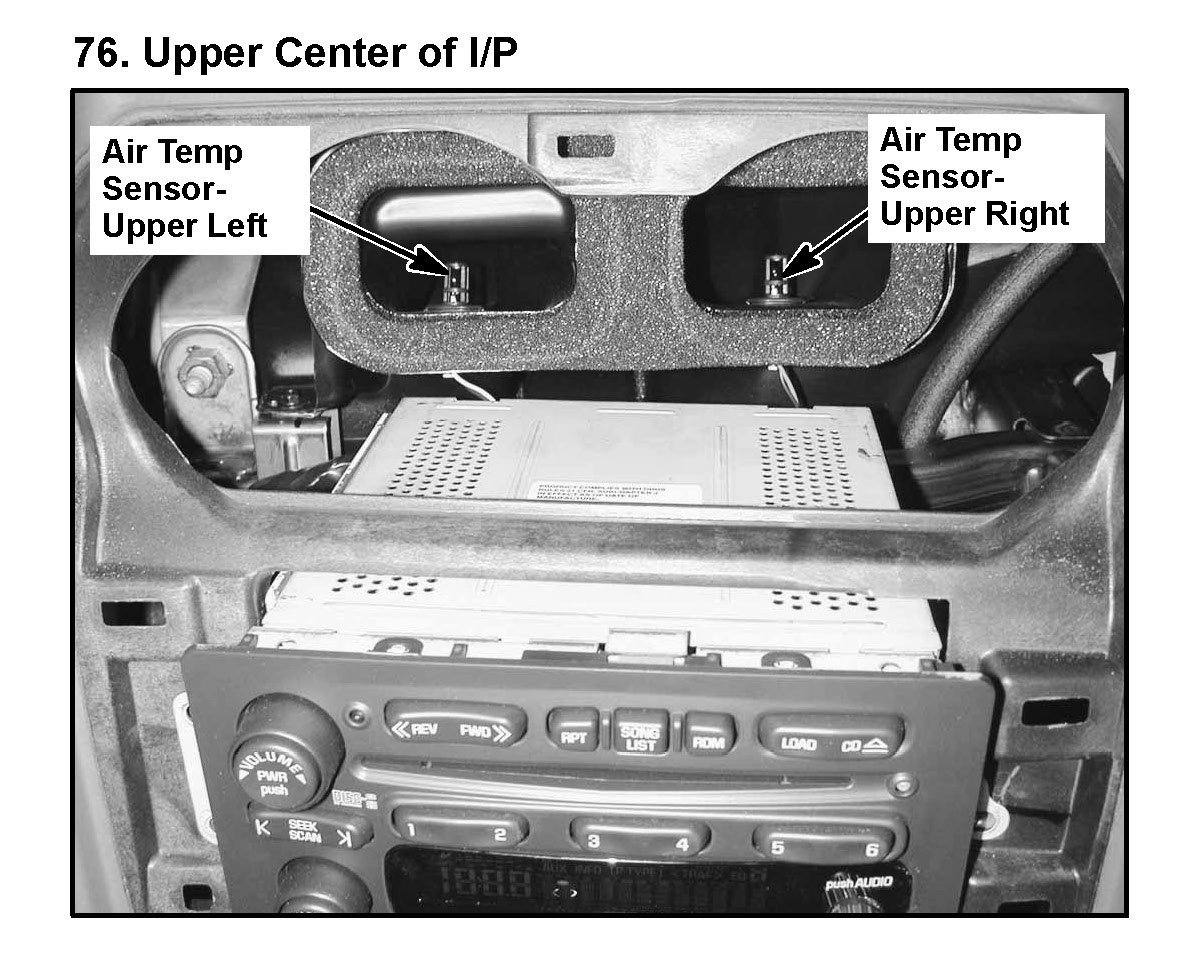

76. Upper Center Of I/P:

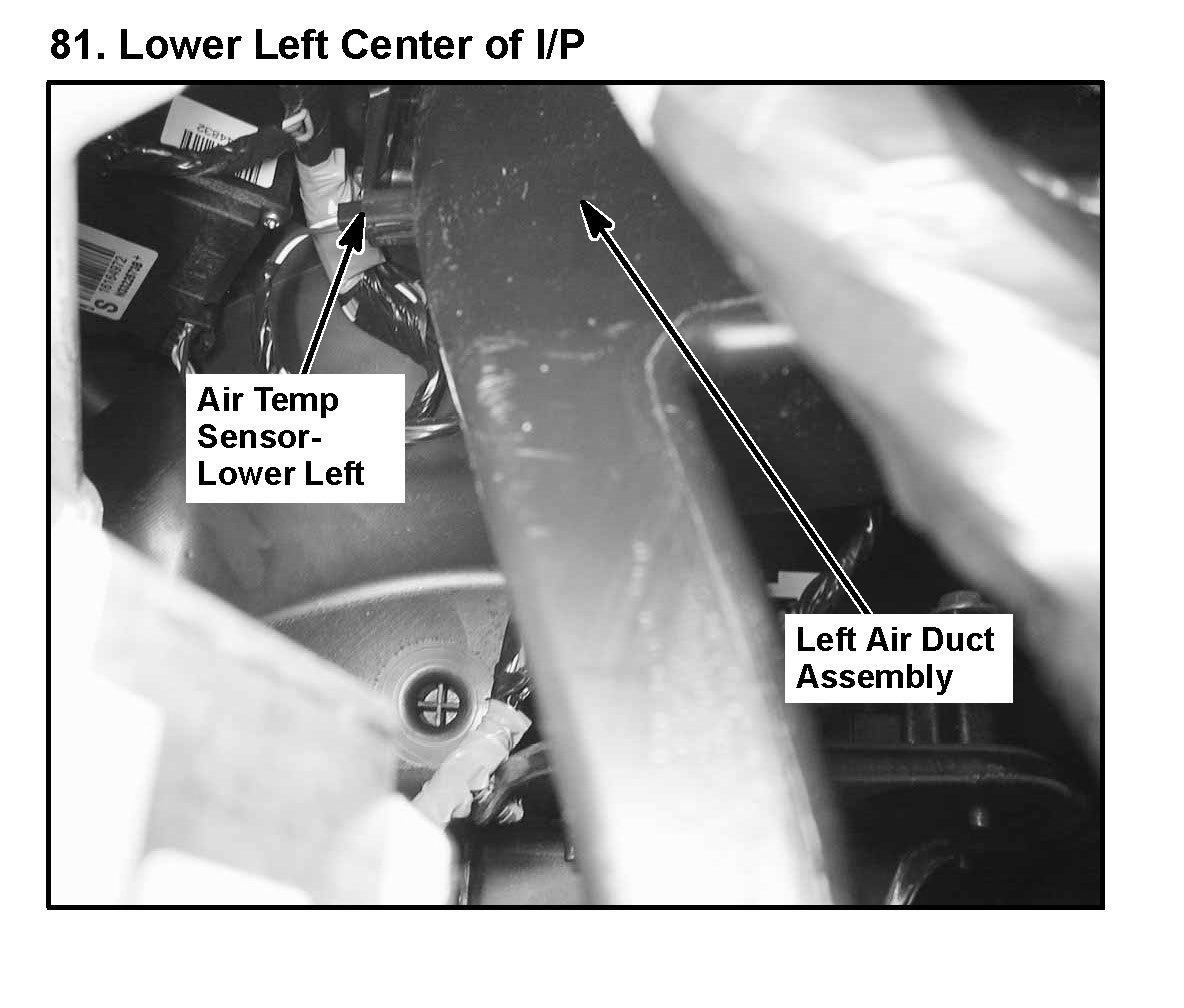

81. Lower Left Center Of I/P:

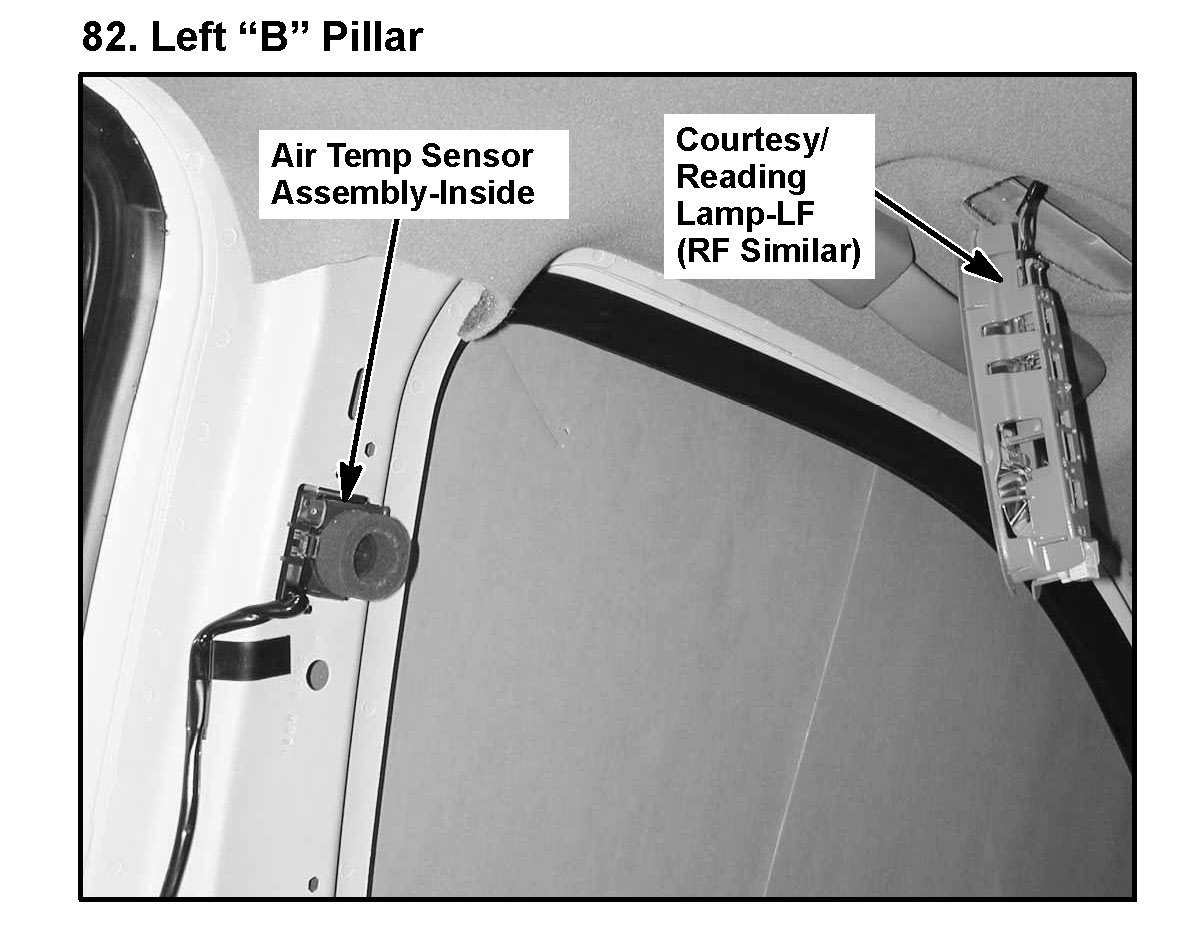

82. Left "B" Pillar:
