Camshaft Position Sensor: Diagrams

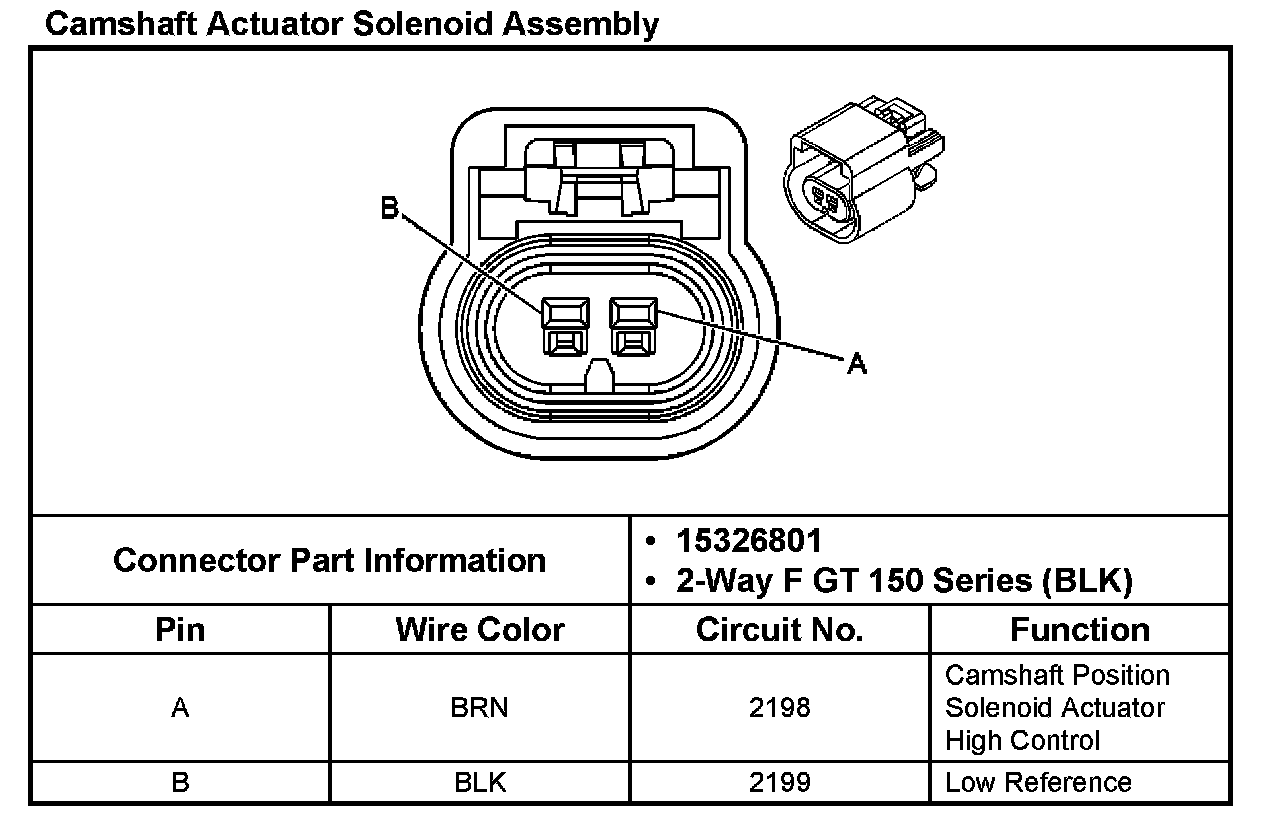

Camshaft Actuator Solenoid Assembly:

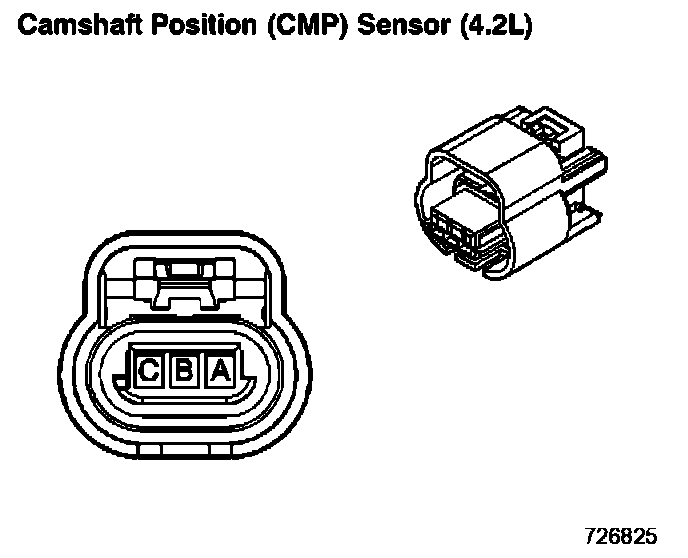

Camshaft Position (CMP) Sensor:

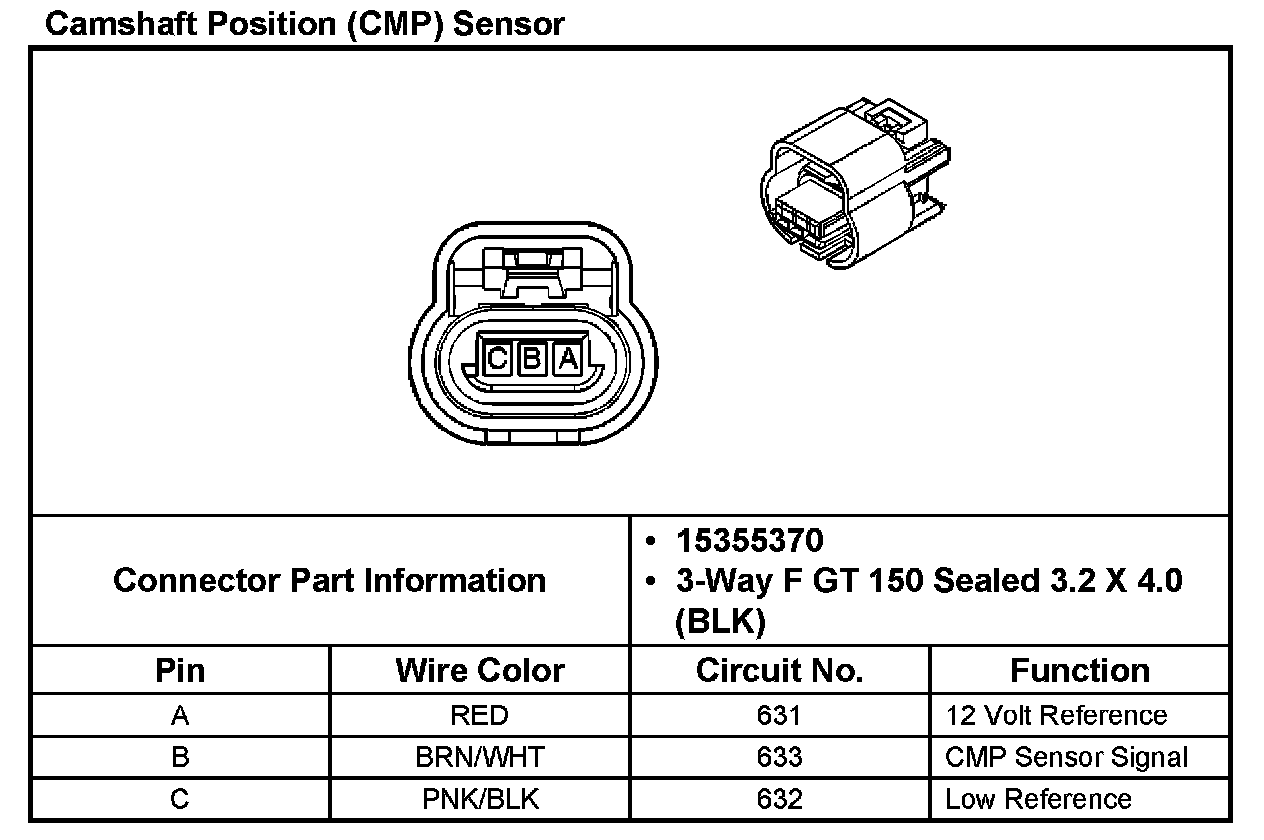

Camshaft Position (CMP) Sensor:
