Air Bag Control Module
>>
Locations
Air Bag Control Module: Locations

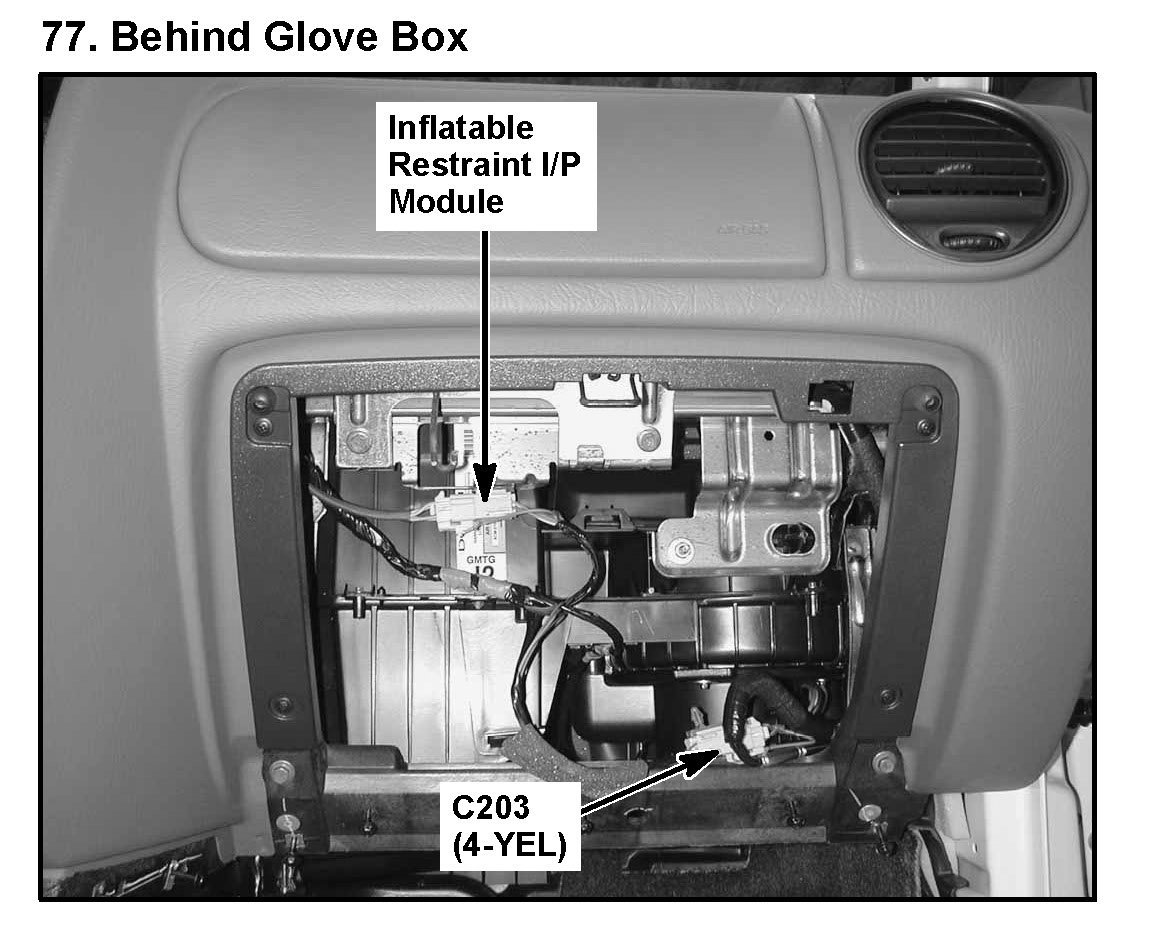

77. Behind Glove Box:

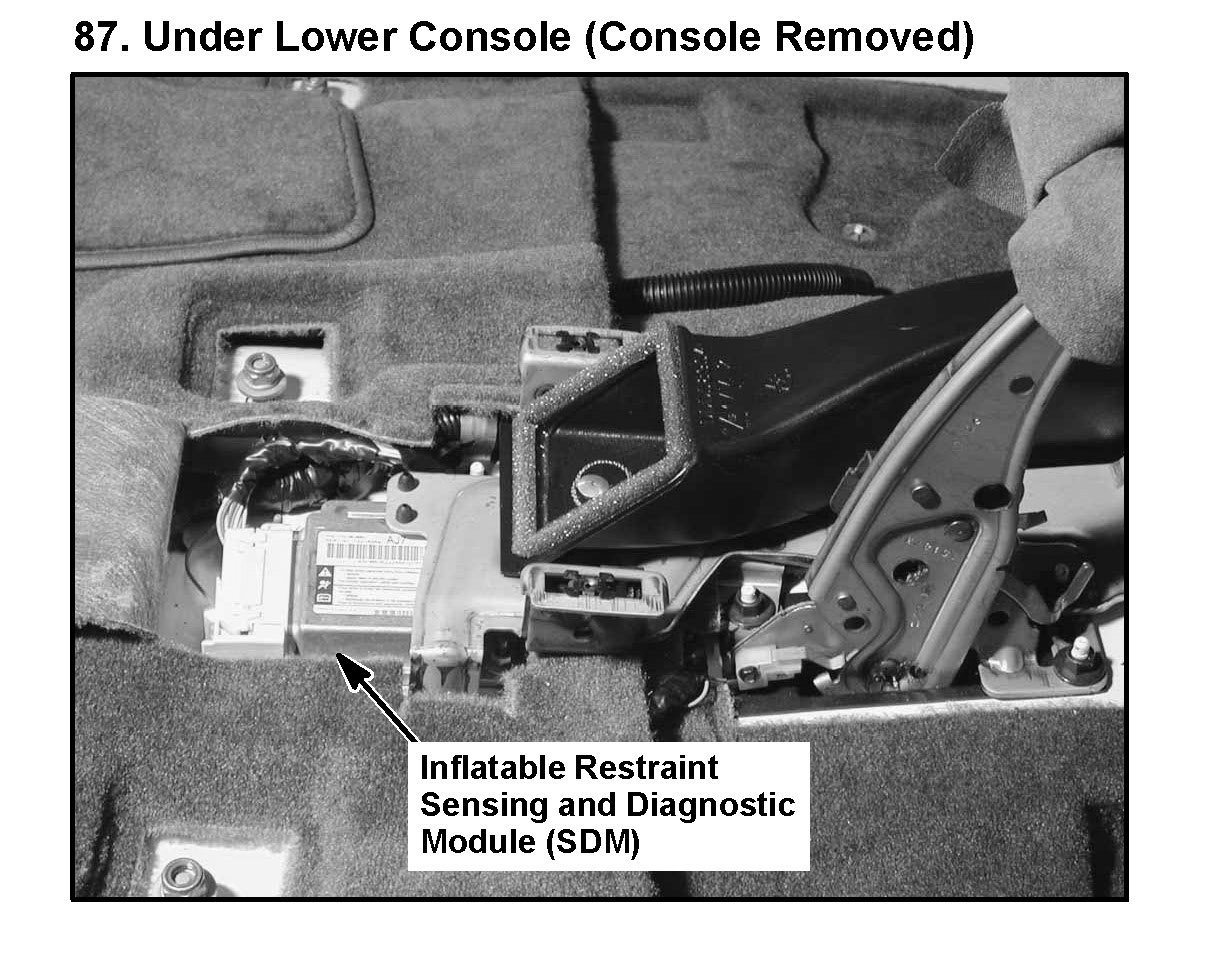

87. Under Lower Console (Console Reamoved):

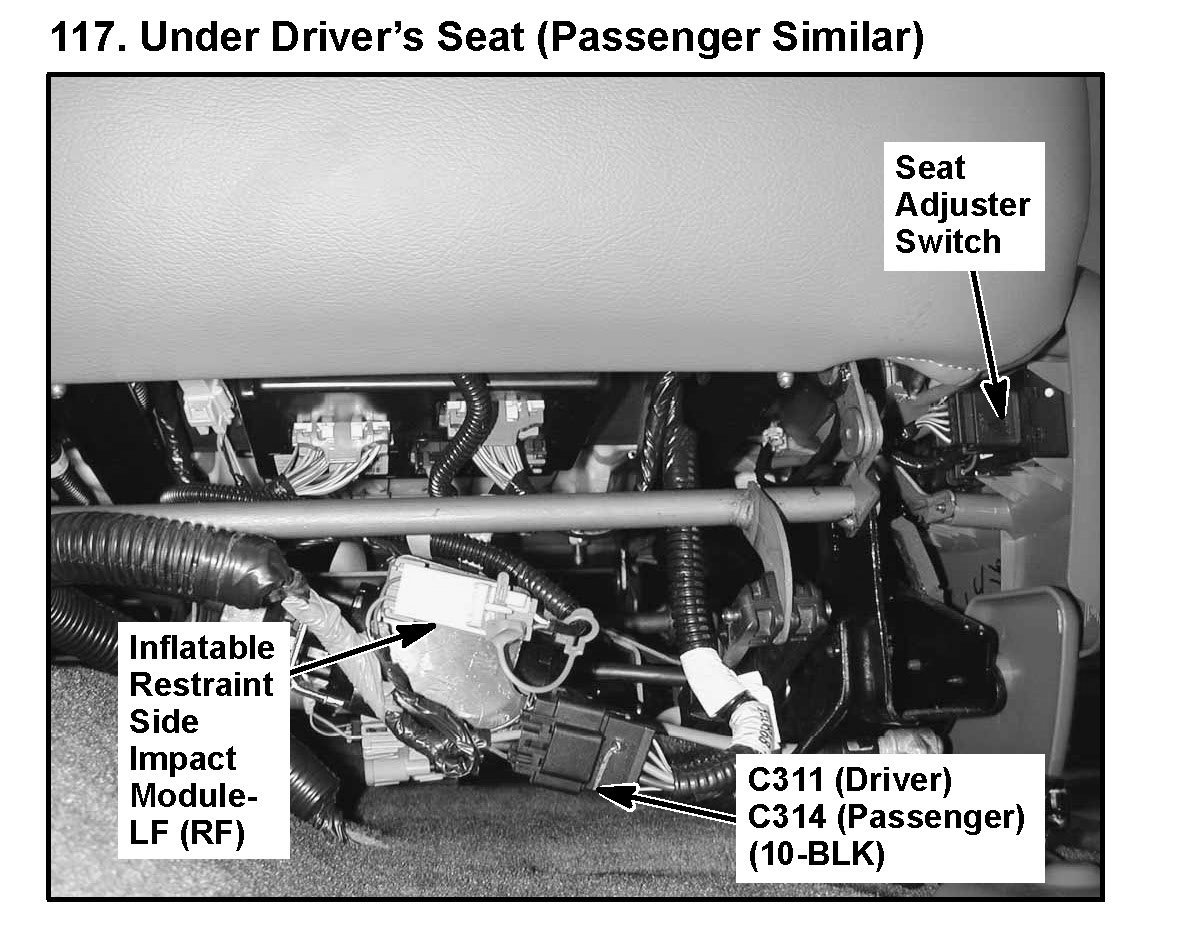

117. Under Driver's Seat (Passenger Similar):
