Connector Views
Connector Views

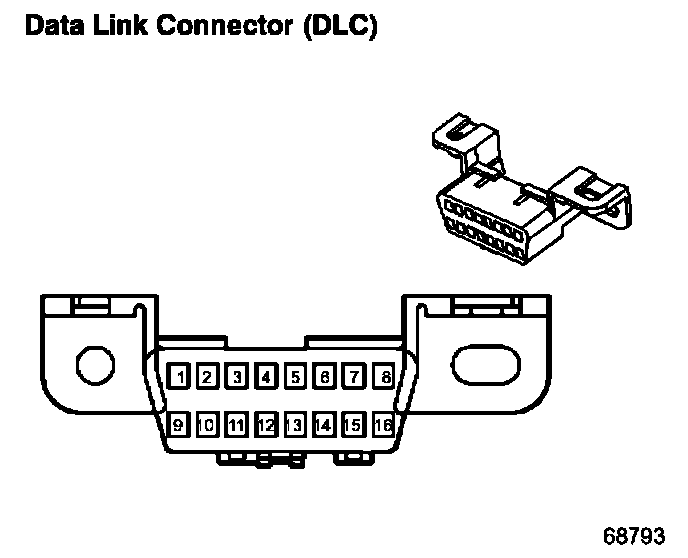

Data Link Connector (DLC):

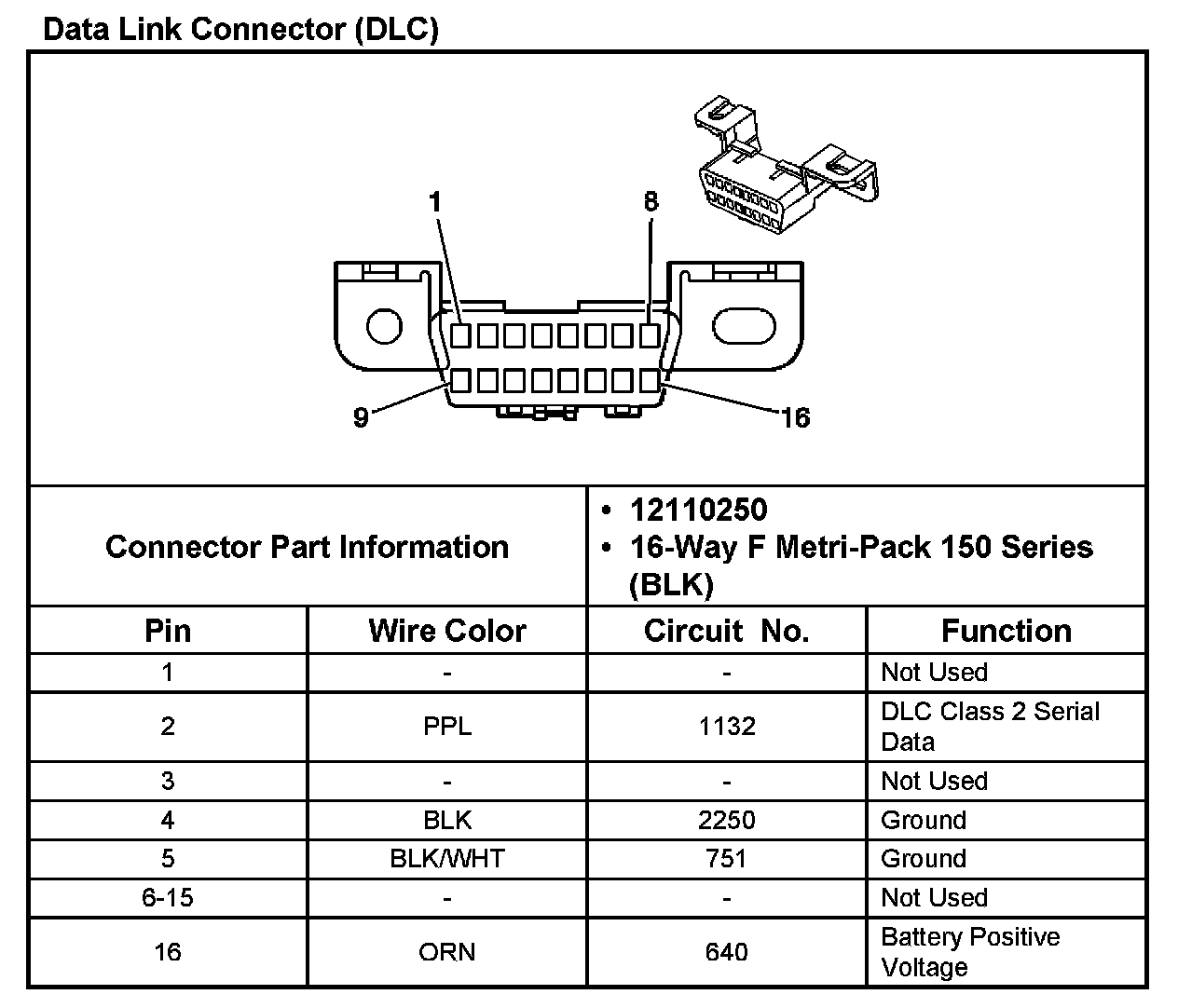

Data Link Connector (DLC):

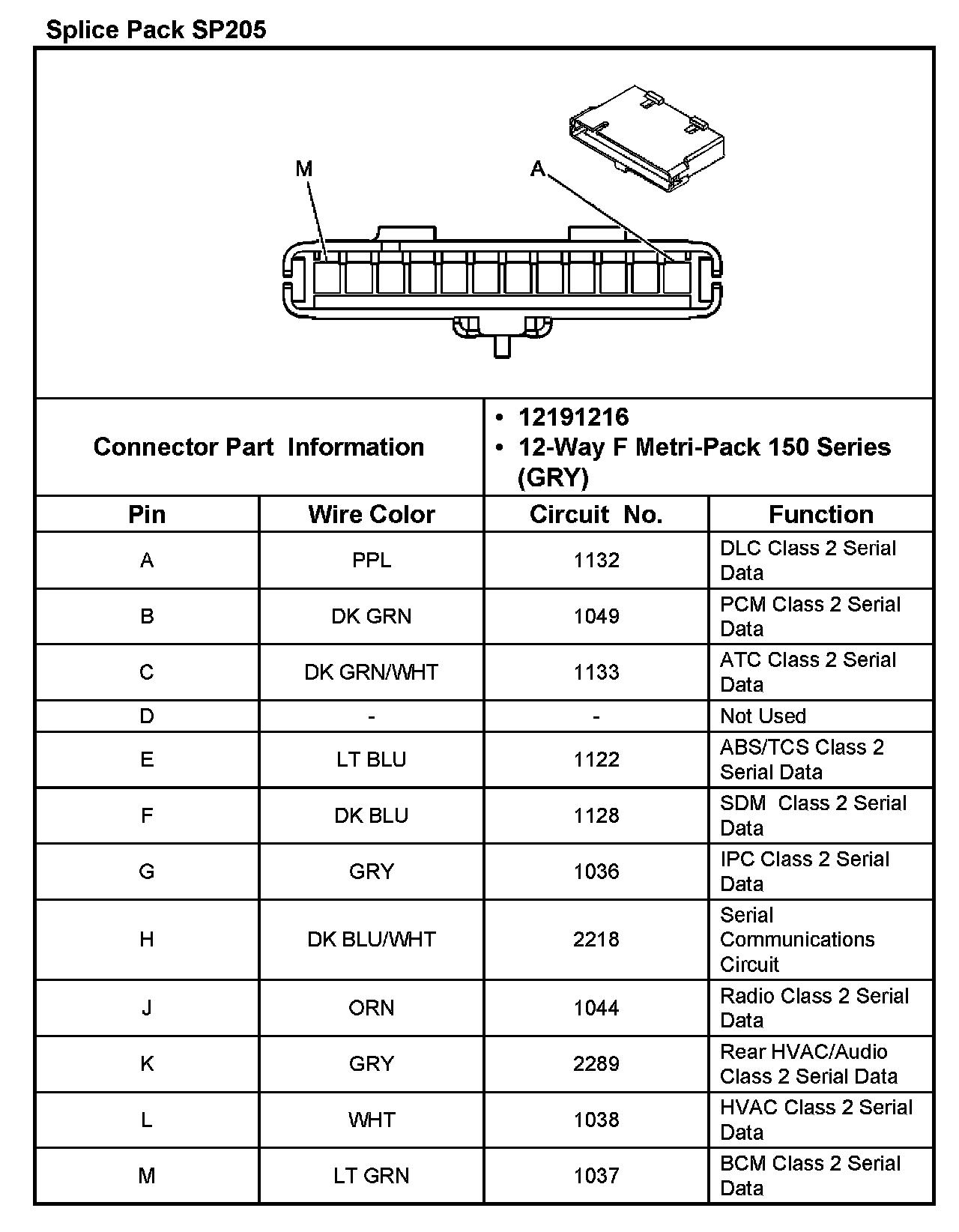

Splice Pack SP205:

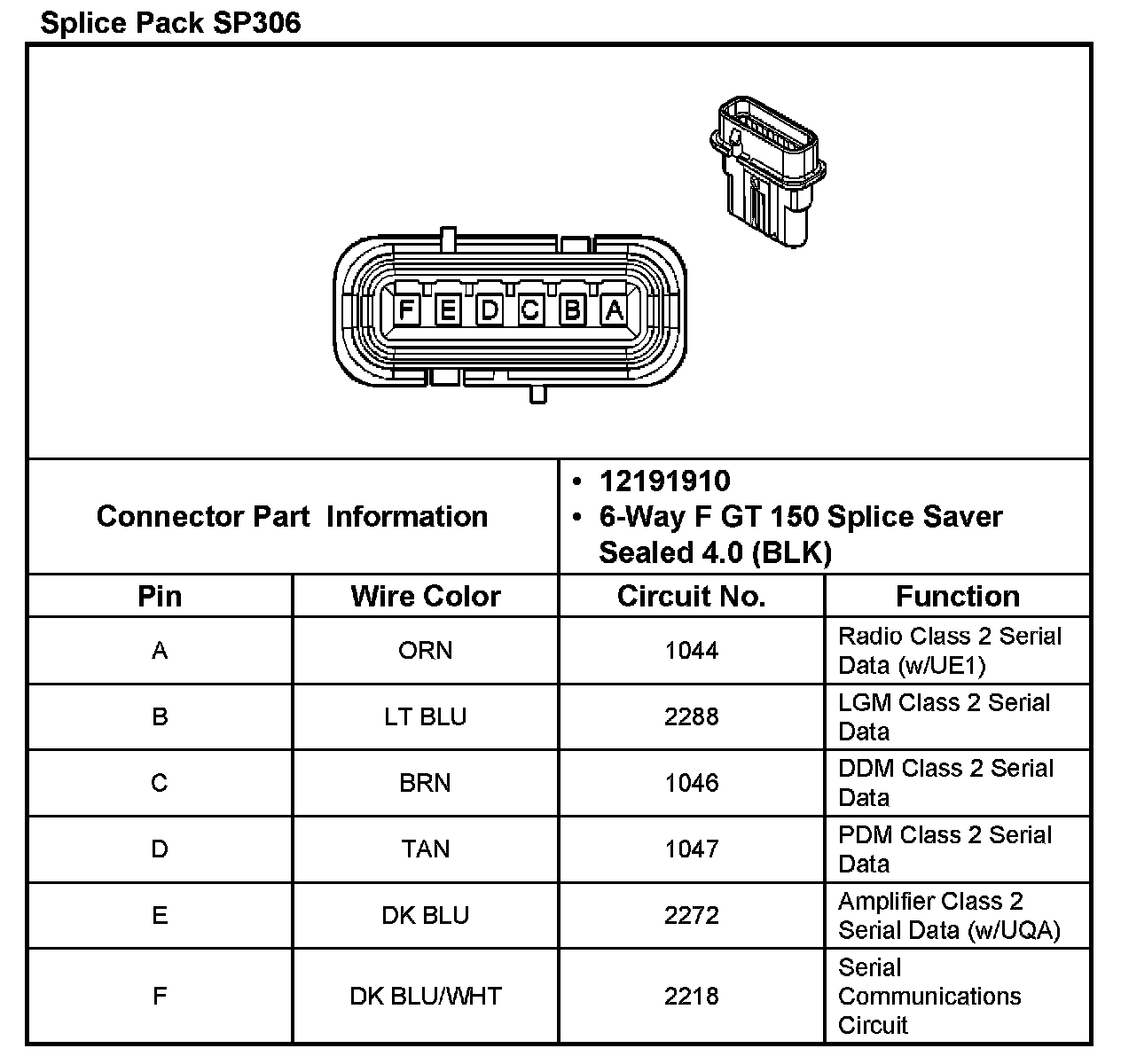

Splice Pack SP306:
