Oxygen Sensor: Locations
Engine, Top Rear:
Oxygen Sensors:

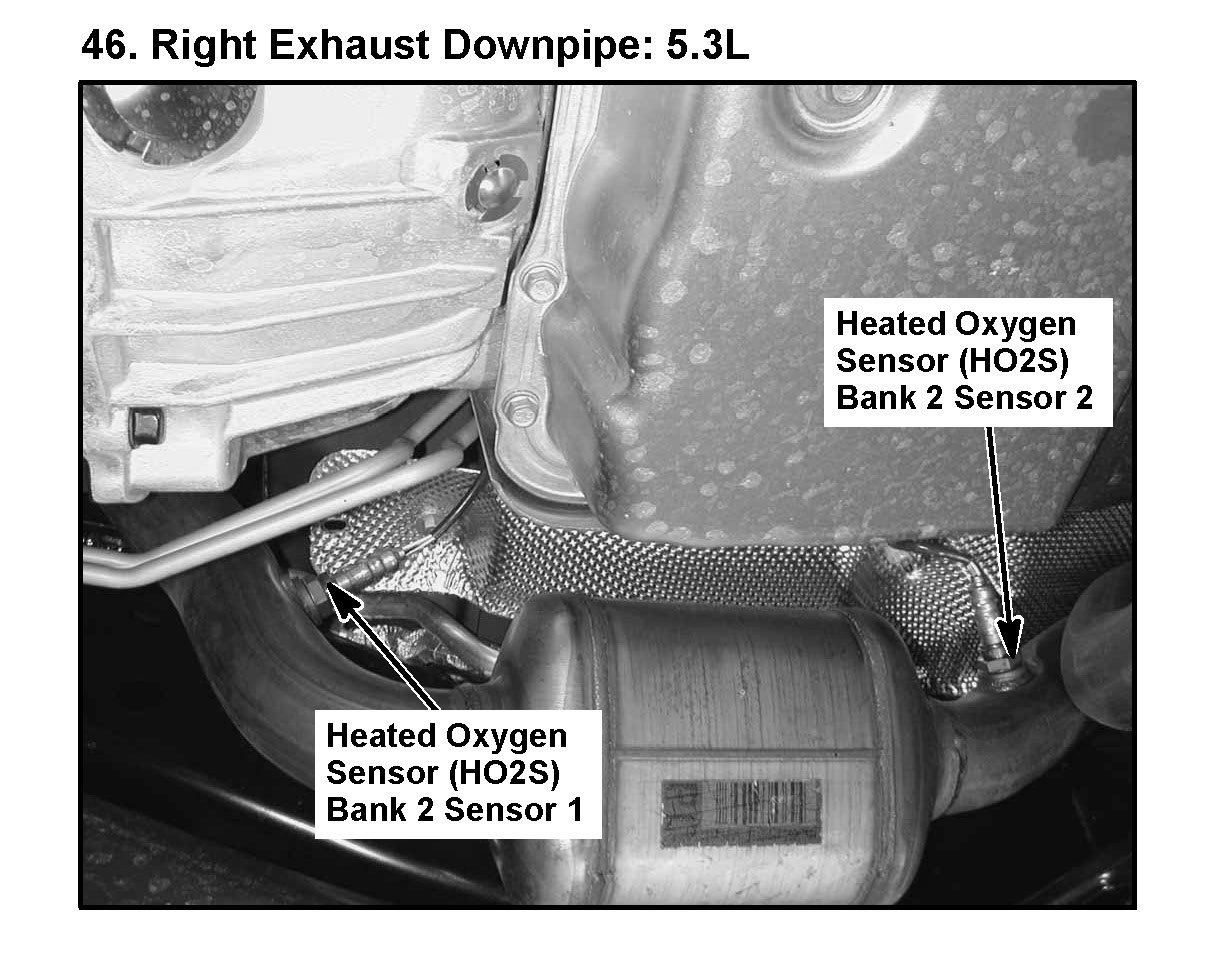

46. Right Exhaust Downpipe:

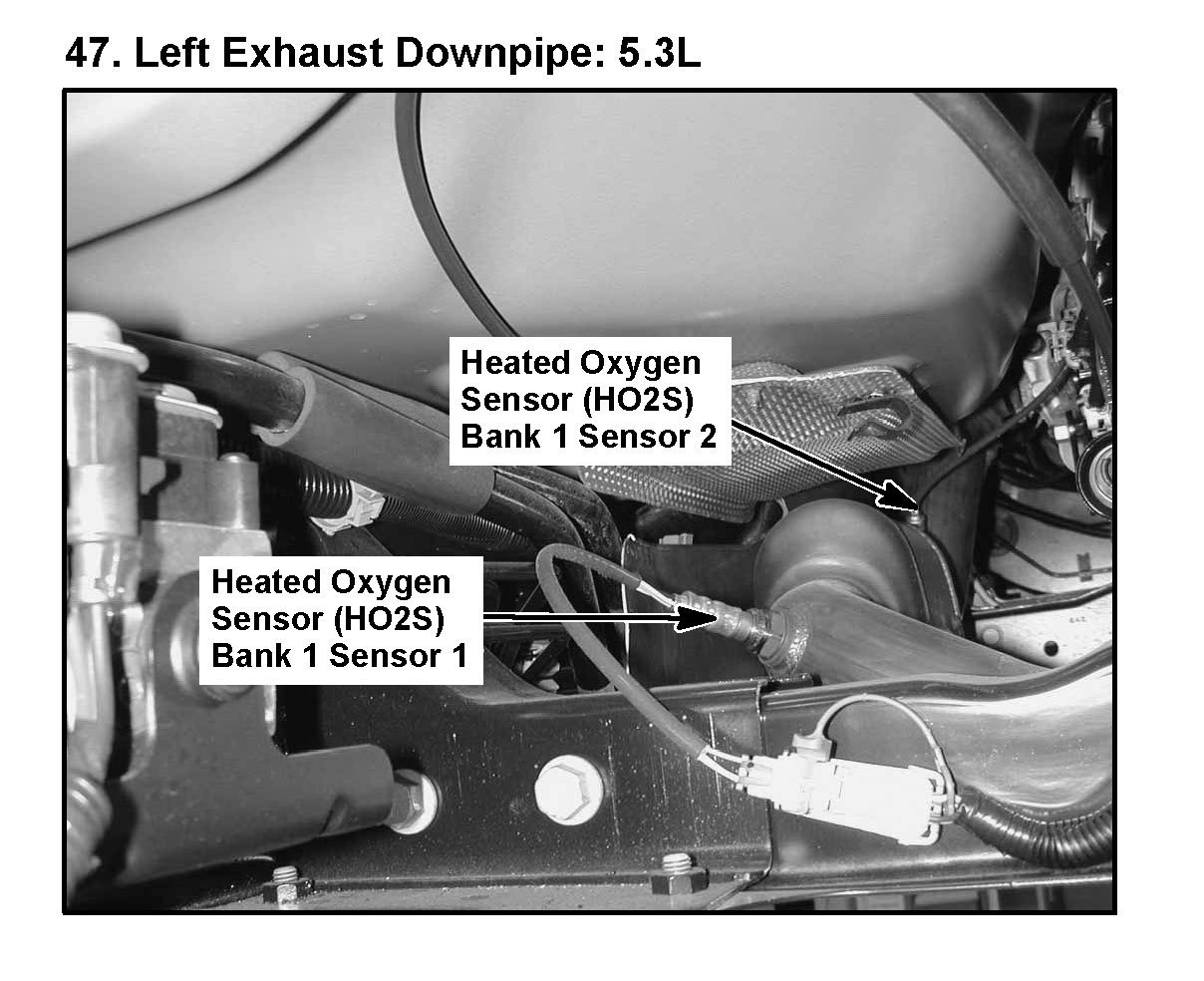

47. Left Exhaust Downpipe:
