Control Module HVAC
>>
Locations
>>
HVAC Systems - Manual
HVAC Systems - Manual

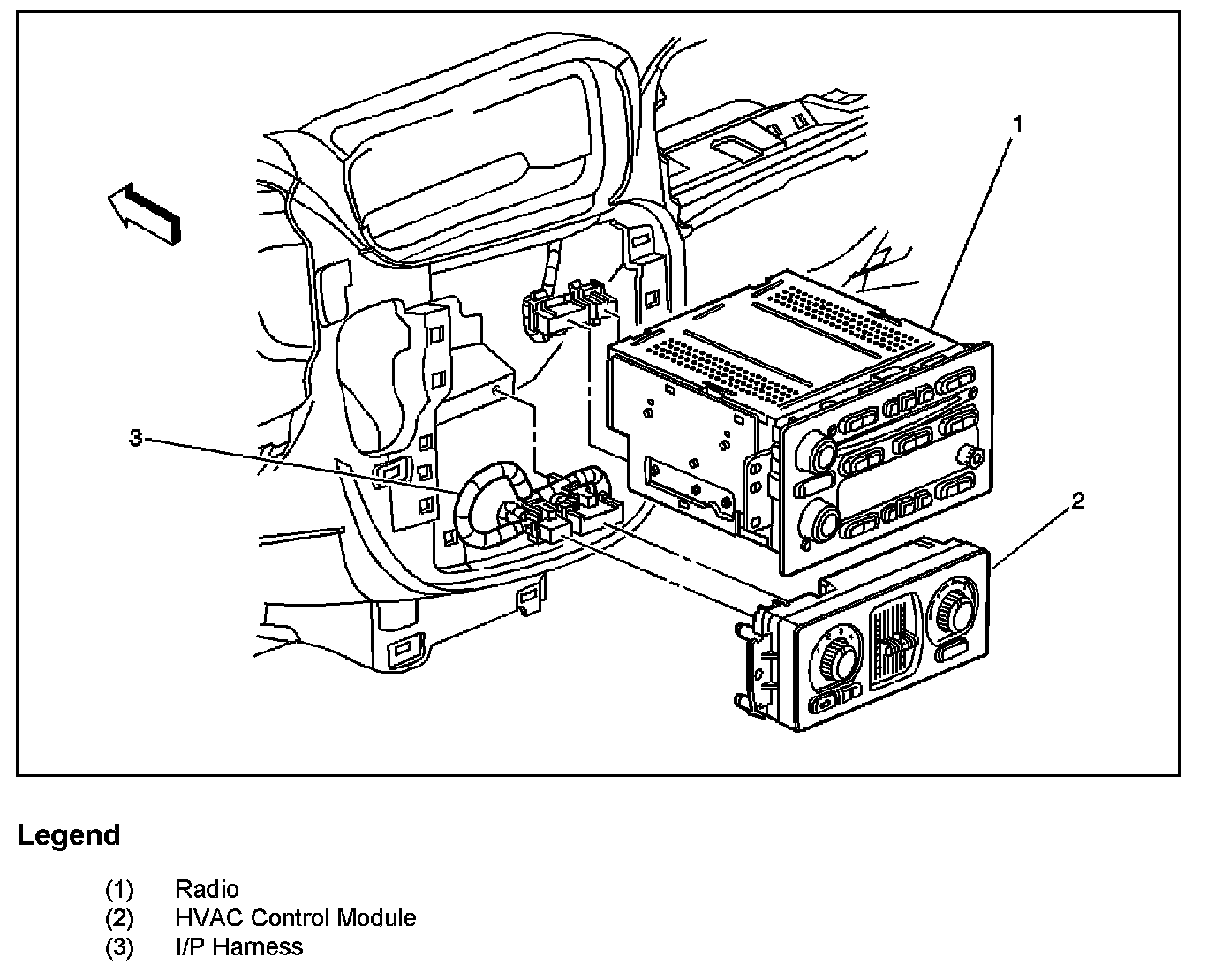

Instrument Panel, Center:

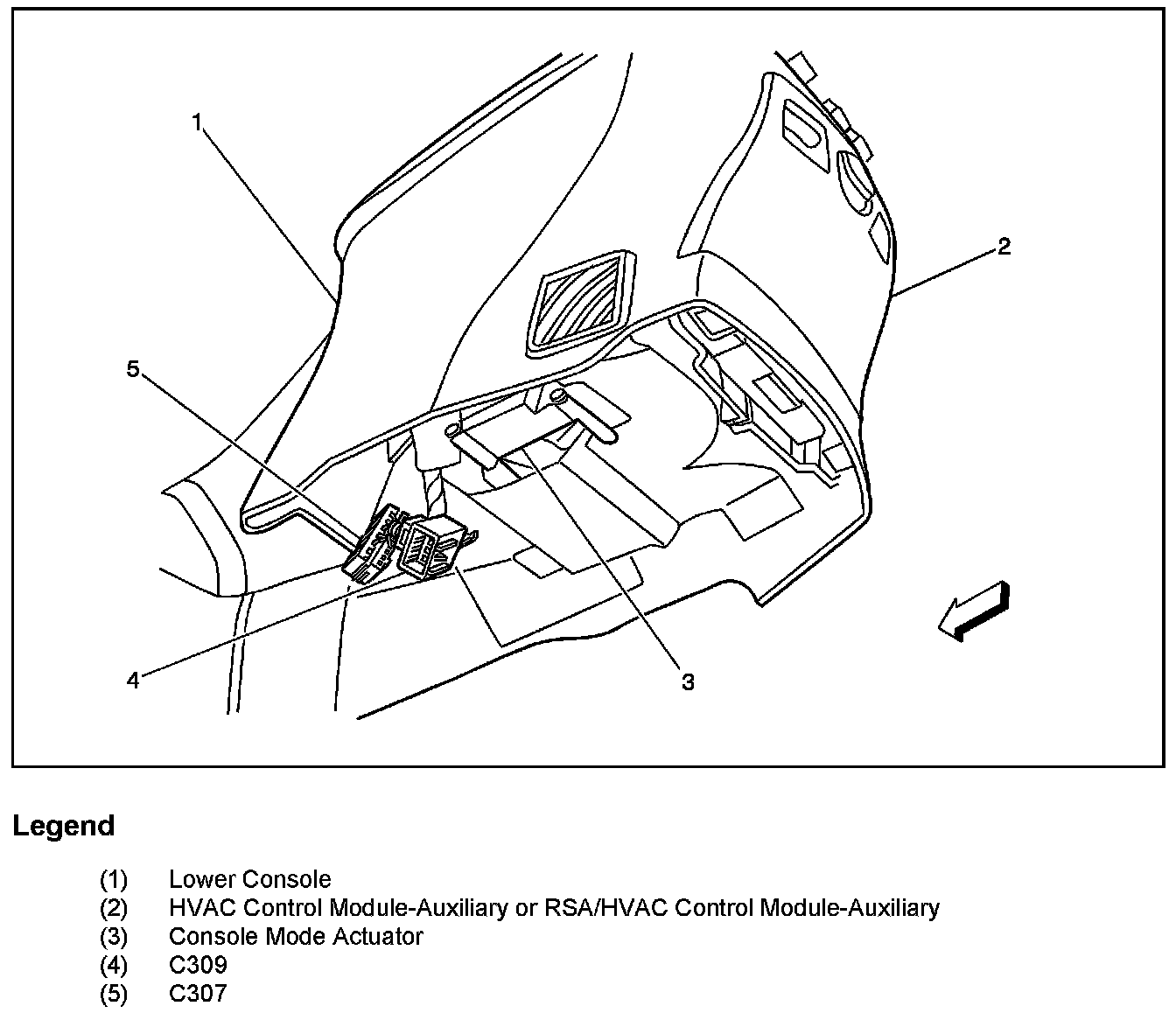

Lower Console:
