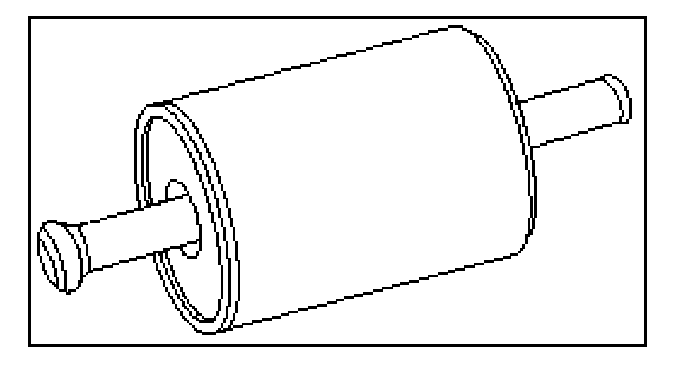

Fuel Filter: Testing and Inspection

2.2L



Replace the fuel filter when the following occur:
- Fuel leaks from the fuel filter body
- The fuel filter body is damaged
- The fuel filter is clogged with dust or sediment

If the drain hole is clogged at filler neck is clogged with dust, clean the drain hole with air.

2.2L Rodeo

INSPECTION PROCEDURE # 1
1. Replace the fuel filter if the fuel leaks from fuel filter body or if the fuel filter body itself is damaged.
2. Replace the filter if it is clogged with dirt or sediment.
3. Check the drain and if it is clogged with dust, clean it out with air.

INSPECTION PROCEDURE # 2
1. installation, start engine and check for fuel leakage.
2. Check clogged drain port of the receive rubber by the foreign material, repair or clear if clogged it.

2.2L Rodeo Sport

INSPECTION PROCEDURE # 1
1. Replace the fuel filter if the fuel leaks from fuel filter body or if the fuel filter body itself is damaged.
2. Replace the filter if it is clogged with dirt or sediment.

INSPECTION PROCEDURE # 2
1. After installation, start engine and check for fuel leakage.
2. Check clogged drain port of the receive rubber by the foreign material, repair or clean if found clogged.
