Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu Truck
>>
2003
>>
Rodeo 2WD L4-2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Connector Locations
Connector Locations

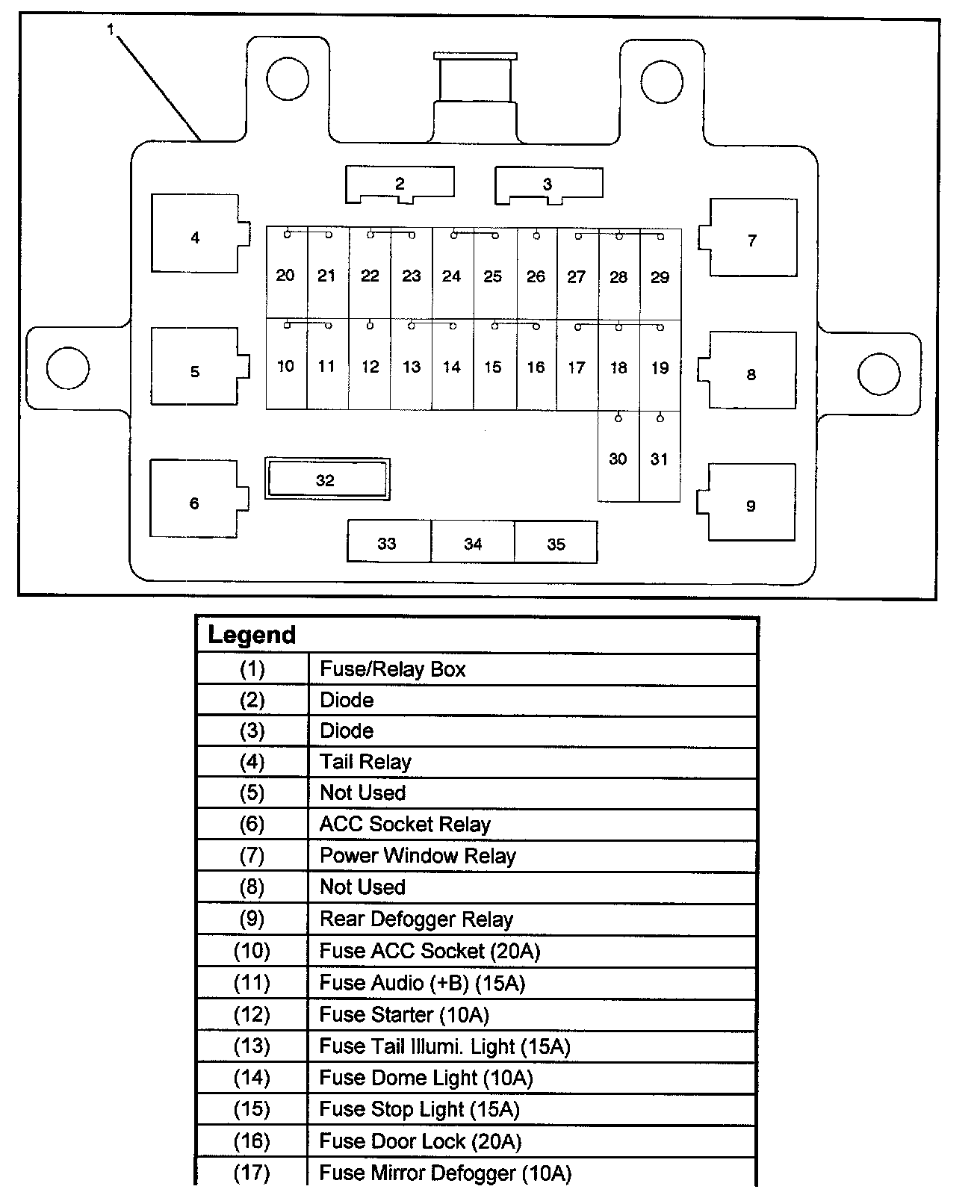

Relay / Fuse Box (Instrument Panel) Part 1:

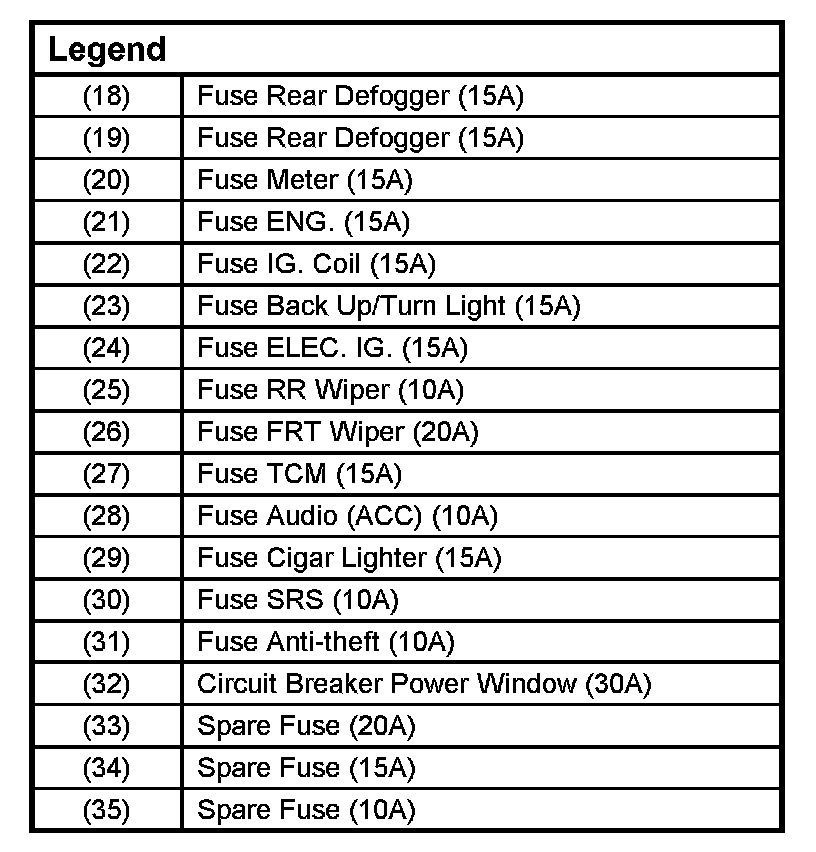

Relay / Fuse Box (Instrument Panel) Part 2:

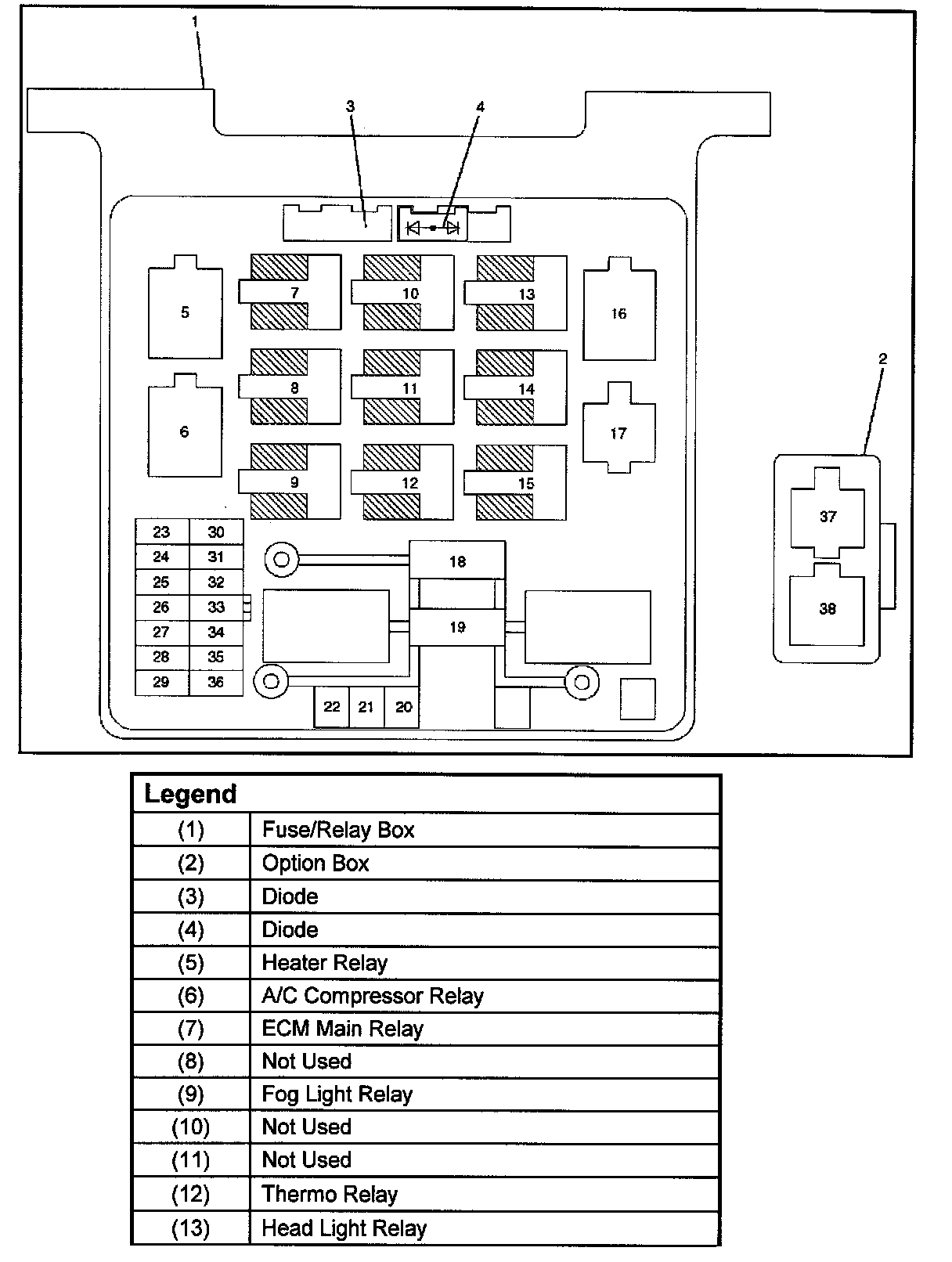

Relay / Fuse Box (L4 Engine Room) Part 1:

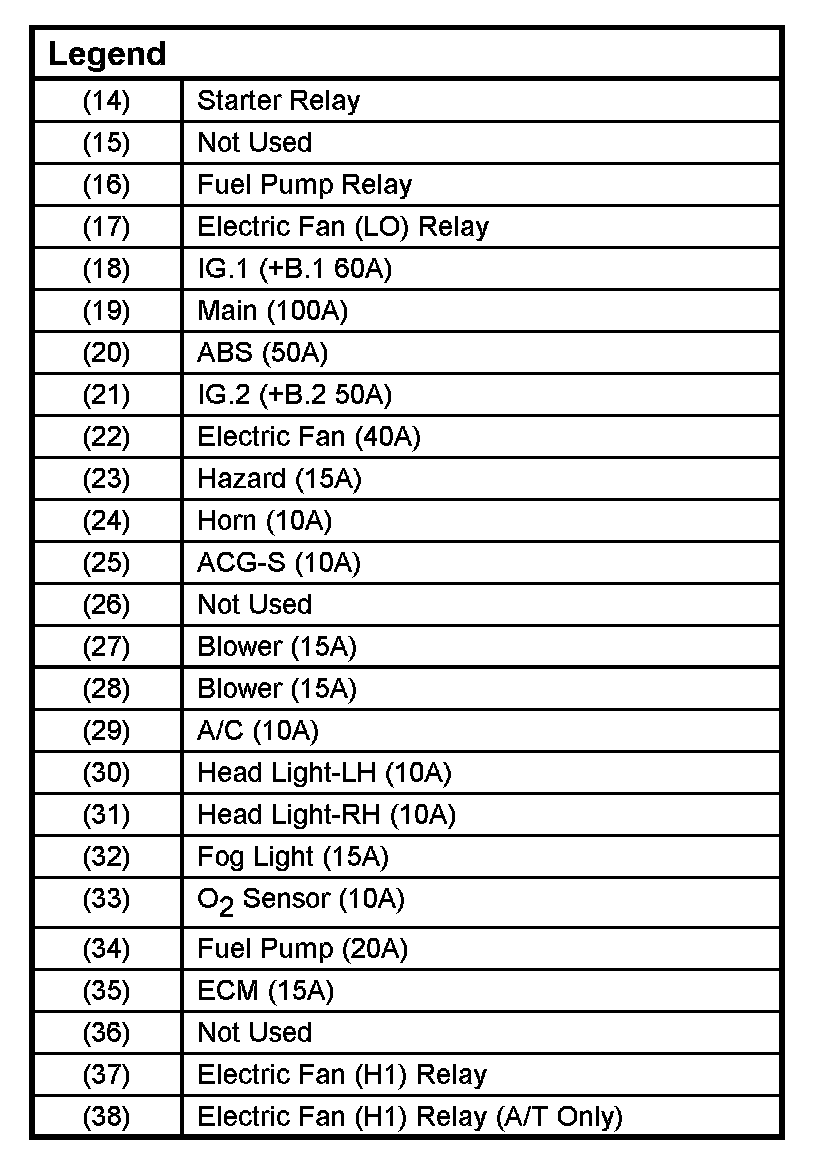

Relay / Fuse Box (L4 Engine Room) Part 2:
