Isuzu Truck
>>
2003
>>
Rodeo 2WD L4-2.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Component Locations
Component Locations

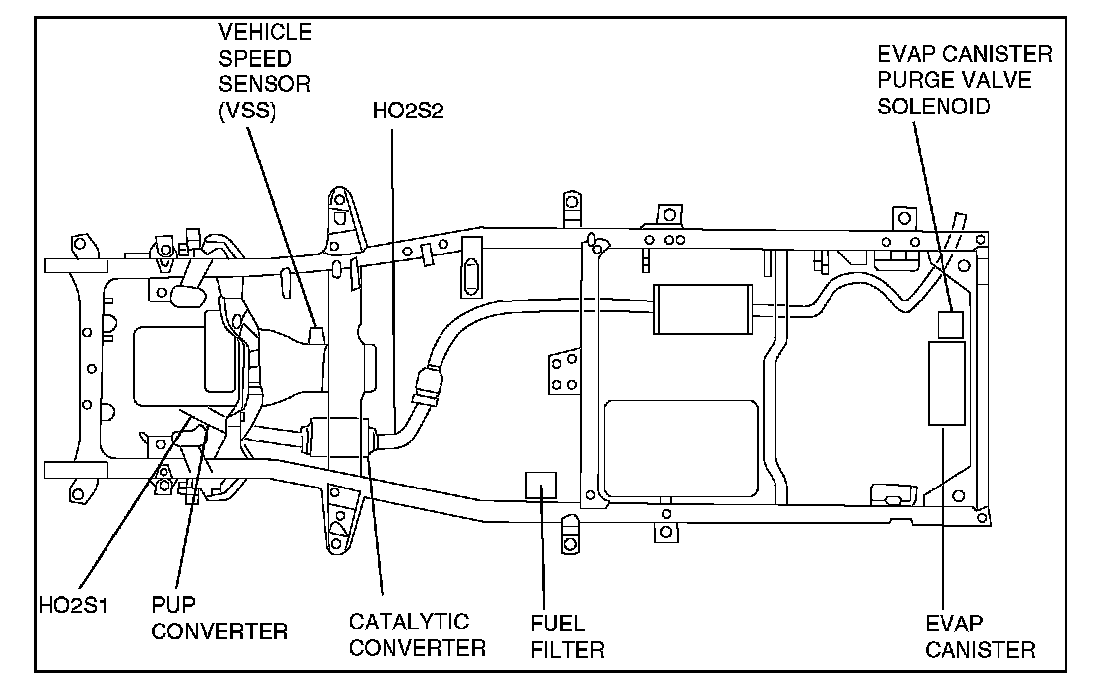

Component Locator:

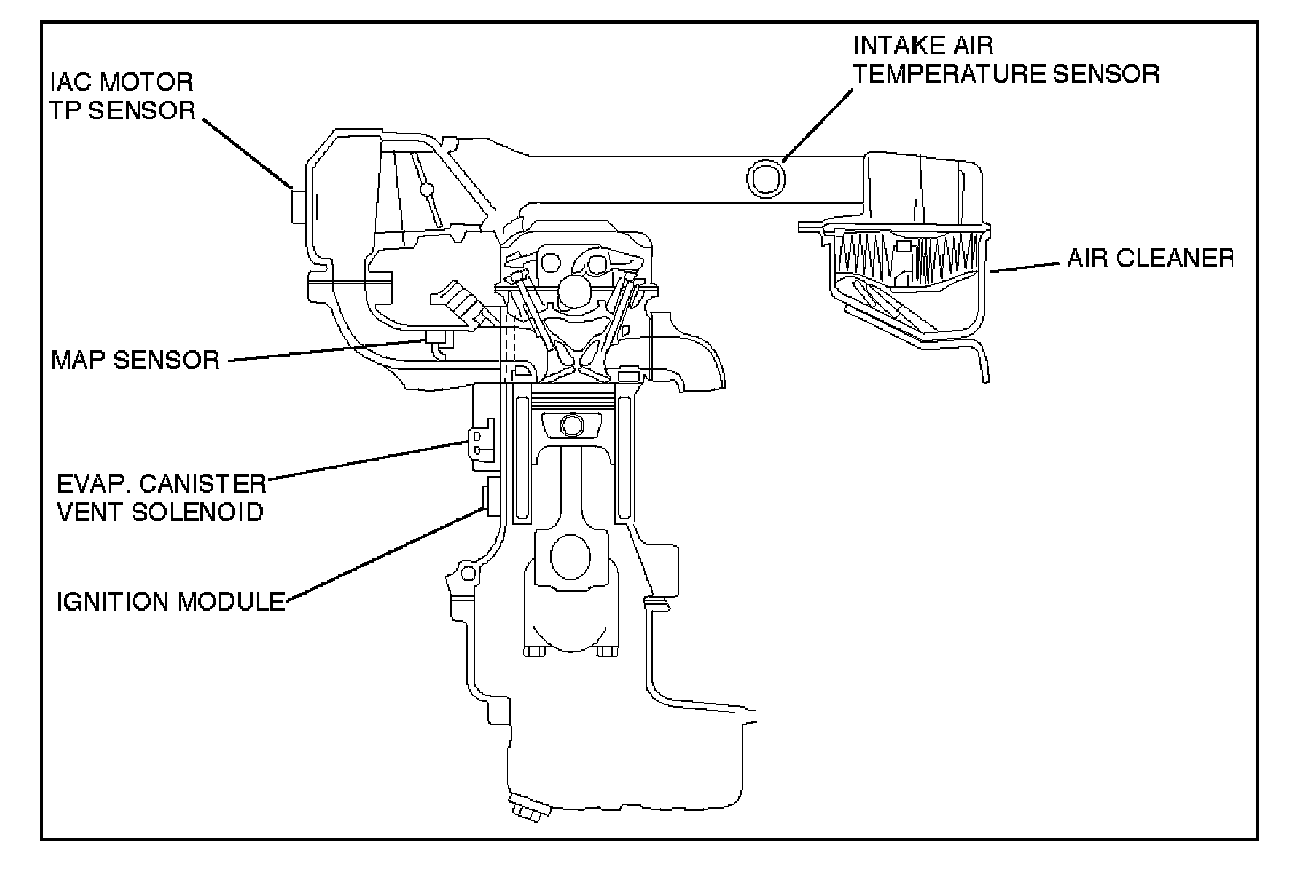

Component Locator Part 2:

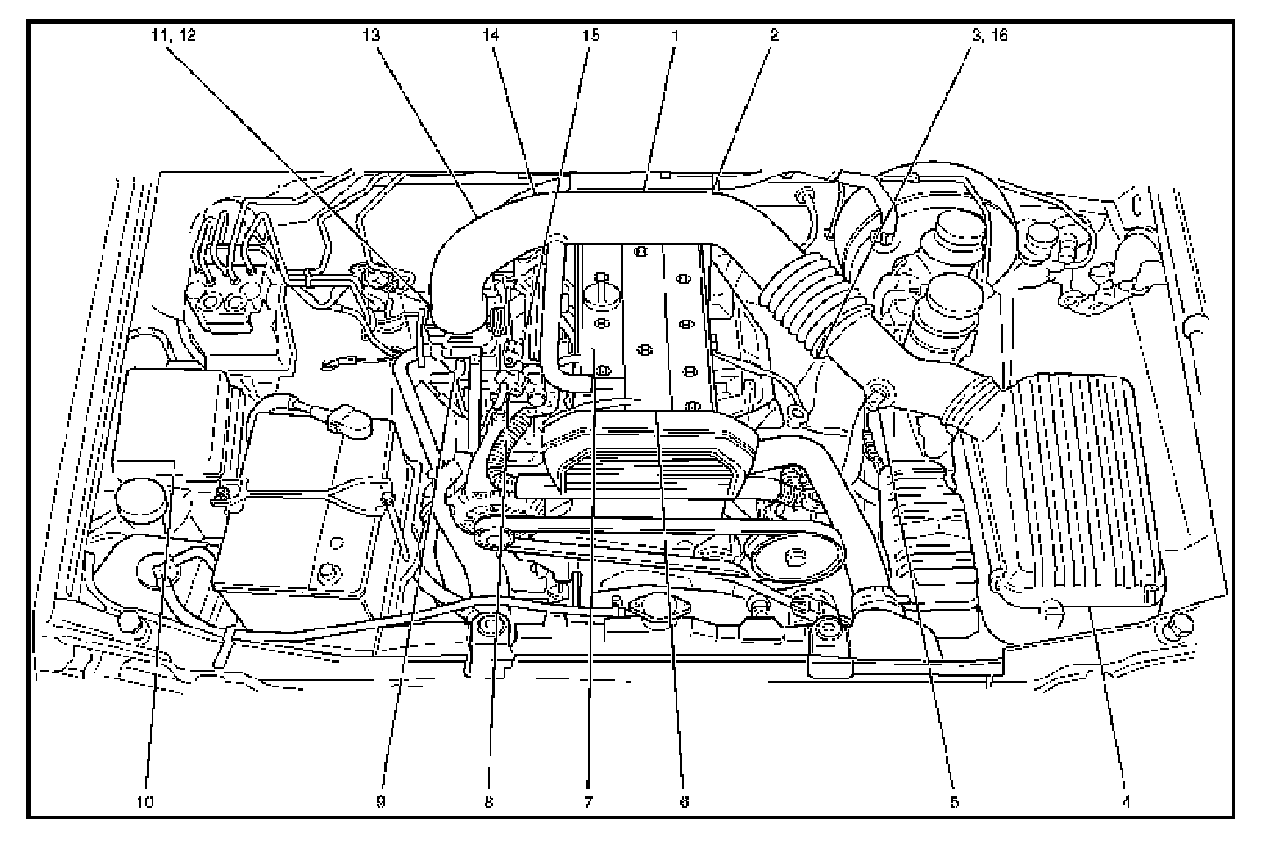

Component Locator Part 3:

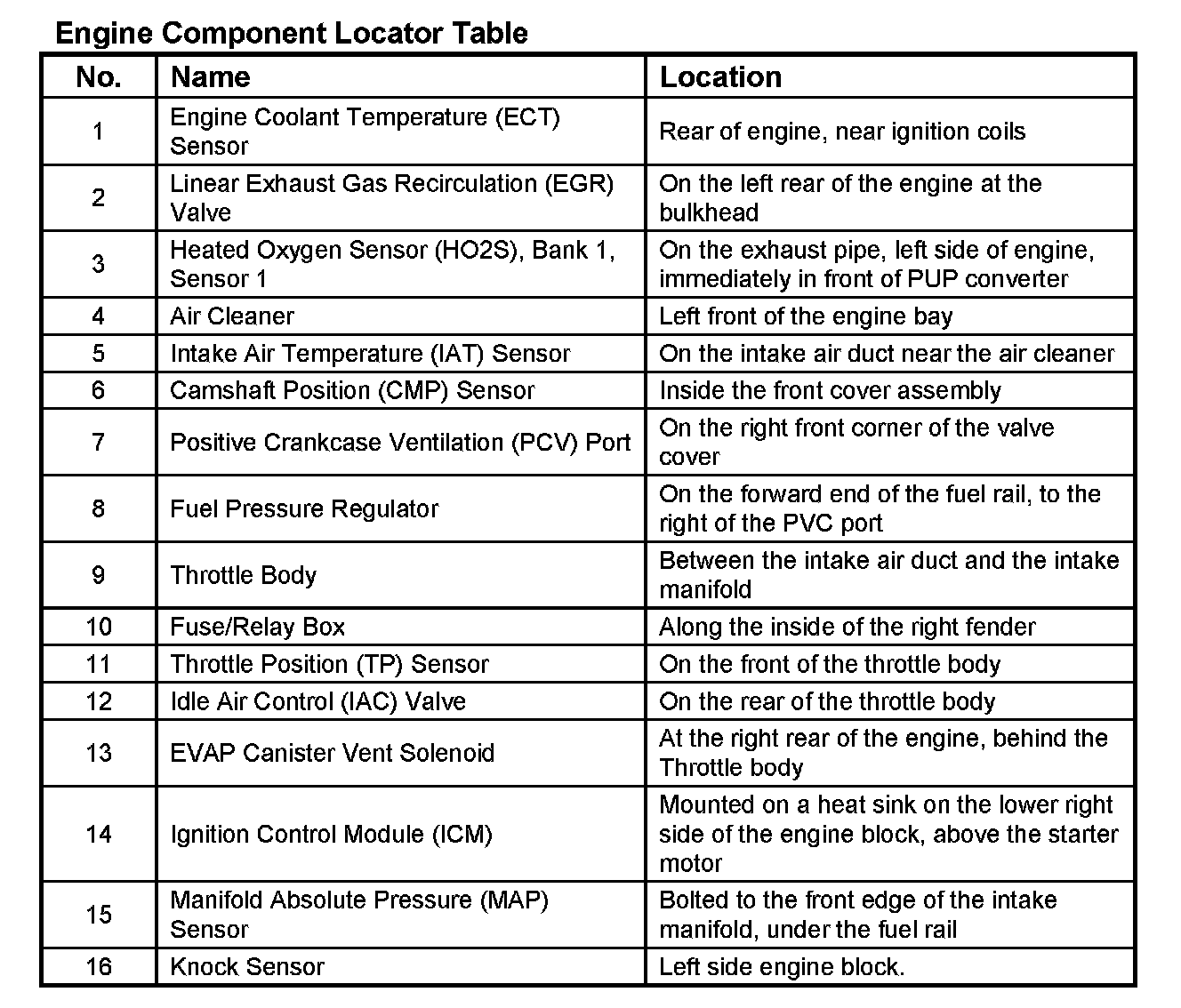

Engine Component Locator Table:

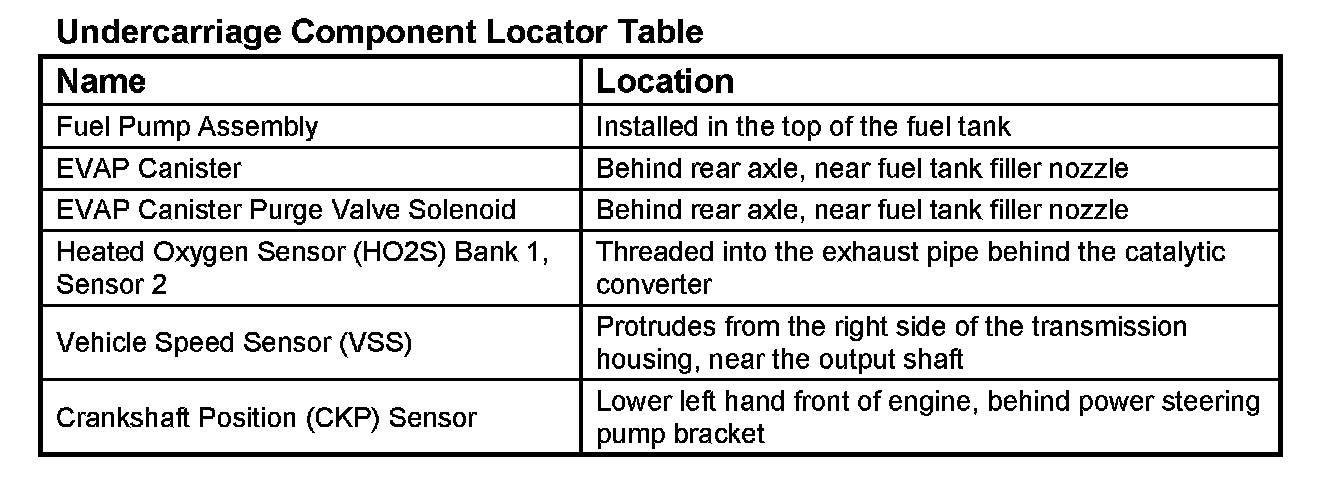

Undercarriage Component Locator Table:
